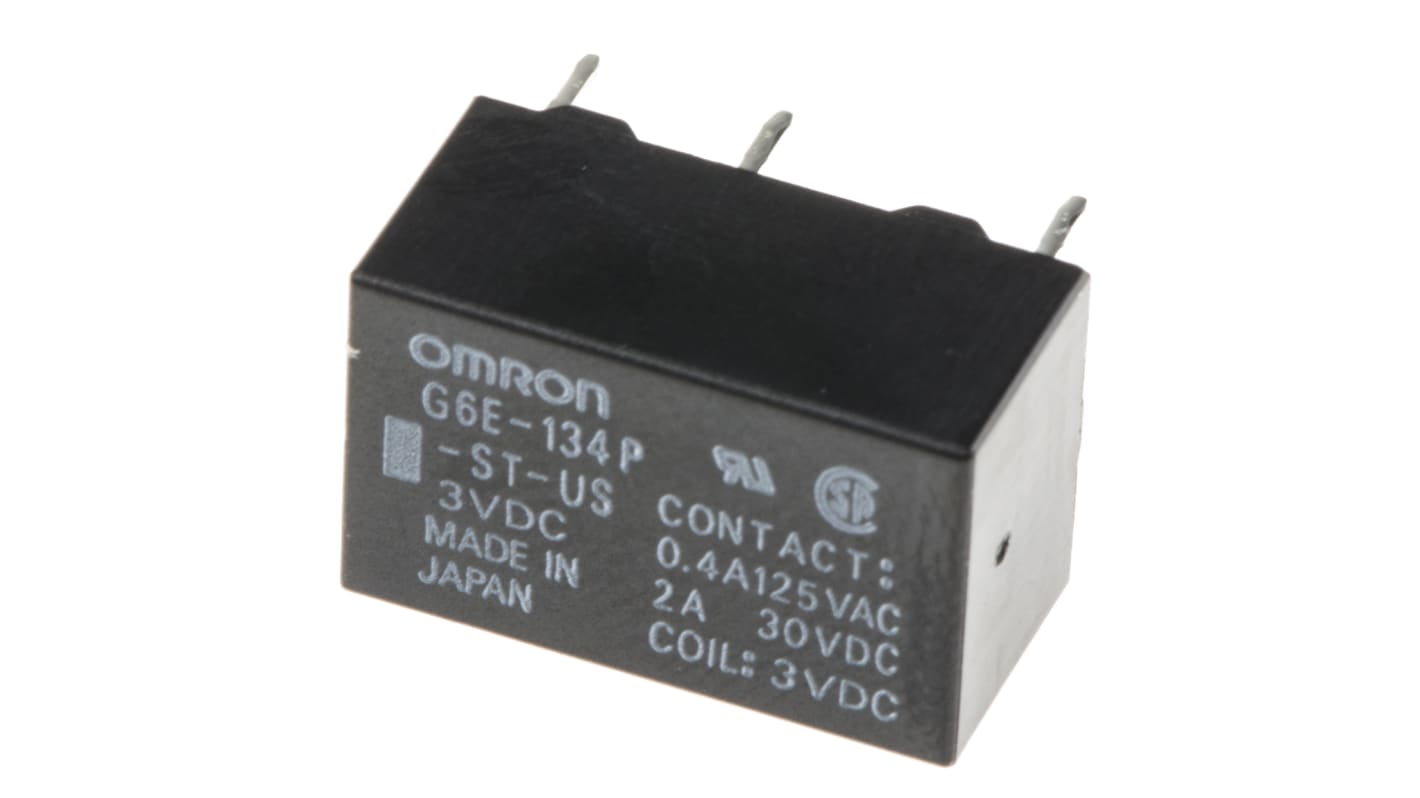

Omron PCB Mount Power Relay, 3V dc Coil, 3A Switching Current, SPDT
- RS Stock No.:
- 807-4361
- Mfr. Part No.:
- G6E-134P-ST-US DC3
- Brand:
- Omron
Subtotal (1 unit)*
£6.72
(exc. VAT)
£8.06
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 192 left, ready to ship
- Plus 50 left, ready to ship from another location
Units | Per unit |
---|---|
1 + | £6.72 |
*price indicative
- RS Stock No.:
- 807-4361
- Mfr. Part No.:
- G6E-134P-ST-US DC3
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 3V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 3A | |
Number of Poles | 1 | |
Latching | No | |
Terminal Type | Surface Mount | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 220V dc | |
Length | 16mm | |
Coil Resistance | 22.5Ω | |
Coil Power | 400mW | |
Height | 8.3mm | |
Contact Material | Silver | |
Life | 100000 Operations, 500000 Operations | |
Minimum Operating Temperature | -40°C | |
Depth | 10mm | |
Isolation Coil To Contact | 1.5kV | |
Maximum Operating Temperature | +70°C | |
Series | G6E | |
Maximum Switching Power DC | 60 W | |
Maximum Switching Power AC | 60VA | |
Application | PCB | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 3V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 3A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Surface Mount | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Length 16mm | ||
Coil Resistance 22.5Ω | ||
Coil Power 400mW | ||
Height 8.3mm | ||
Contact Material Silver | ||
Life 100000 Operations, 500000 Operations | ||
Minimum Operating Temperature -40°C | ||
Depth 10mm | ||
Isolation Coil To Contact 1.5kV | ||
Maximum Operating Temperature +70°C | ||
Series G6E | ||
Maximum Switching Power DC 60 W | ||
Maximum Switching Power AC 60VA | ||
Application PCB | ||
G6E Series
SPDT subminiature signal switching relays
Fully sealed construction allows immersion cleaning of PCB
High sensitivity
Impulse withstand voltage meets FCC Part 68 requirements
Fully sealed construction allows immersion cleaning of PCB
High sensitivity
Impulse withstand voltage meets FCC Part 68 requirements
Approvals
UL, CSA
