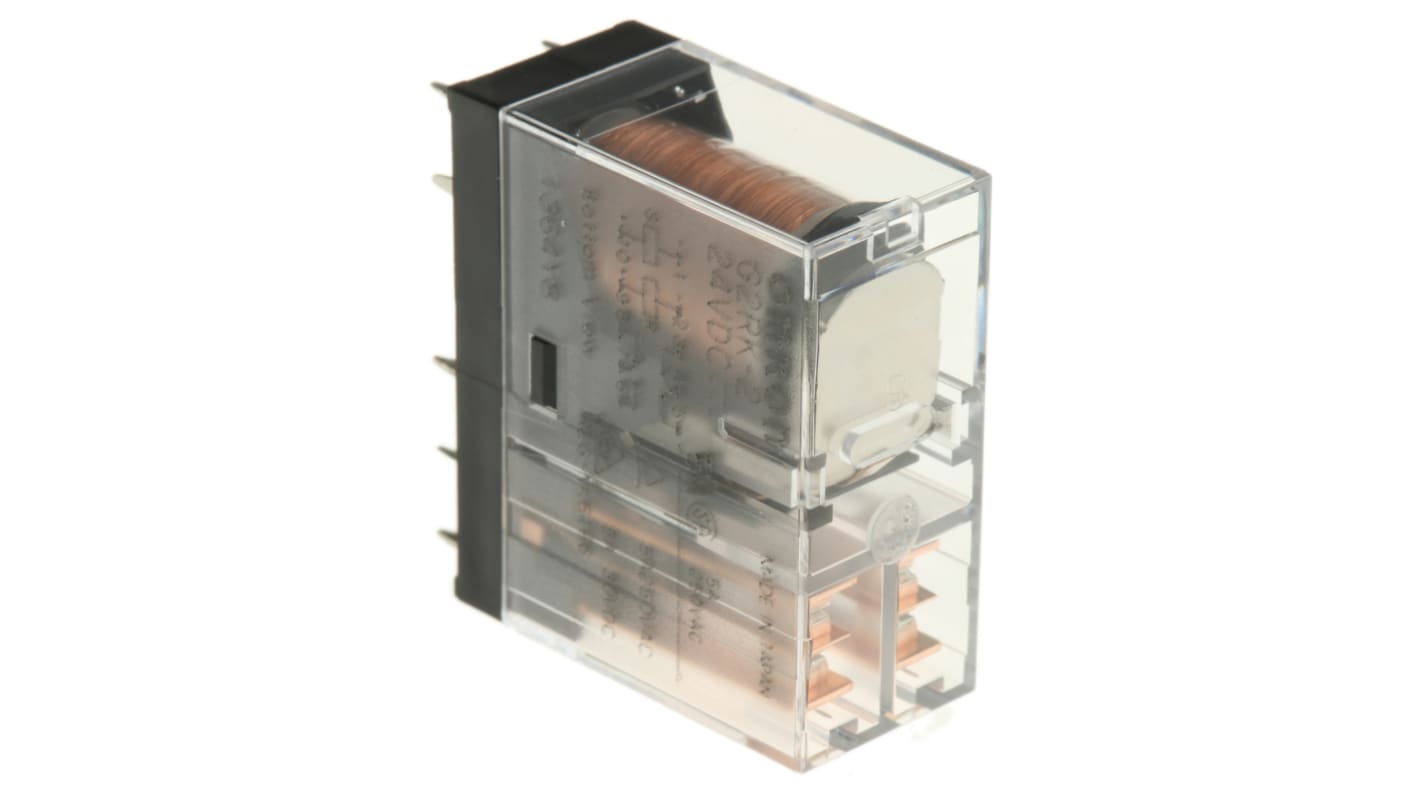

Omron PCB Mount Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 683-8769
- Mfr. Part No.:
- G2RK-2 DC24
- Brand:
- Omron
63 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£9.83
(exc. VAT)
£11.80
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £9.83 |
| 10 - 49 | £8.11 |
| 50 - 99 | £6.80 |
| 100 - 249 | £6.61 |
| 250 + | £6.45 |
- RS Stock No.:
- 683-8769
- Mfr. Part No.:
- G2RK-2 DC24
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 3A |
| Latching | Yes |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 380V ac |
| Maximum Switching Voltage DC | 125V dc |
| Length | 29mm |
| Coil Resistance | 694 (Set Coil) Ω, 960 (Reset Coil) Ω |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Maximum Operating Temperature | +70°C |
| Height | 25.5mm |
| Depth | 13mm |
| Maximum Switching Power DC | 90 W |
| Maximum Switching Power AC | 750VA |
| Application | Power |
| Dimensions | 29 x 25.5 x 13mm |
