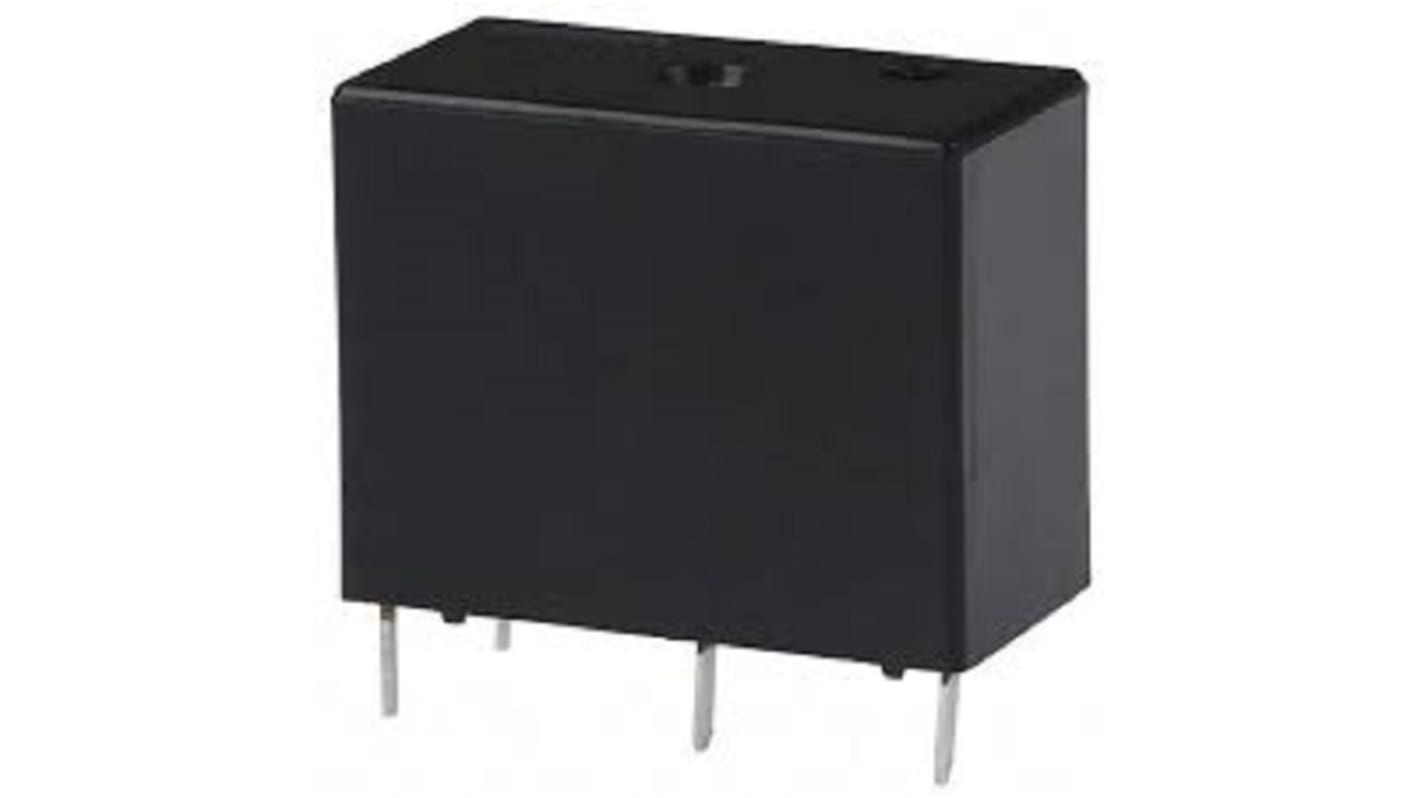

Omron PCB Non-Latching Relay, 24V dc Coil, 3A Switching Current, SPDT
- RS Stock No.:
- 234-7946
- Mfr. Part No.:
- G5Q-14 DC24 (TY)
- Brand:
- Omron
Bulk discount available
Subtotal (1 tray of 500 units)*
£568.50
(exc. VAT)
£682.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 500 - 500 | £1.137 | £568.50 |
| 1000 - 1500 | £1.12 | £560.00 |
| 2000 + | £1.103 | £551.50 |
*price indicative
- RS Stock No.:
- 234-7946
- Mfr. Part No.:
- G5Q-14 DC24 (TY)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G5Q | |
| Terminal Type | Solder | |
| Switching Current | 3A | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 277V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Coil Resistance | 1.4kΩ | |
| Length | 20.3mm | |
| Height | 15.8mm | |
| Coil Power | 400mW | |
| Standards/Approvals | IEC/EN 60335-1, RoHS, VDE | |
| Width | 10.3mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G5Q | ||
Terminal Type Solder | ||
Switching Current 3A | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 277V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Coil Resistance 1.4kΩ | ||
Length 20.3mm | ||
Height 15.8mm | ||
Coil Power 400mW | ||
Standards/Approvals IEC/EN 60335-1, RoHS, VDE | ||
Width 10.3mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron miniature power relay comes with 1-pole 10A switching capacity. It is small, yet provides 8-kV impulse withstand voltage (between coil and contacts). It has low power consumption with sealed enclosure rating.
Rated coil voltage 24 VDC
Contact form SPDT 1c
Contact type Single
Contact material Ag-Alloy Cd free
Ambient operating humidity 5% to 85%
