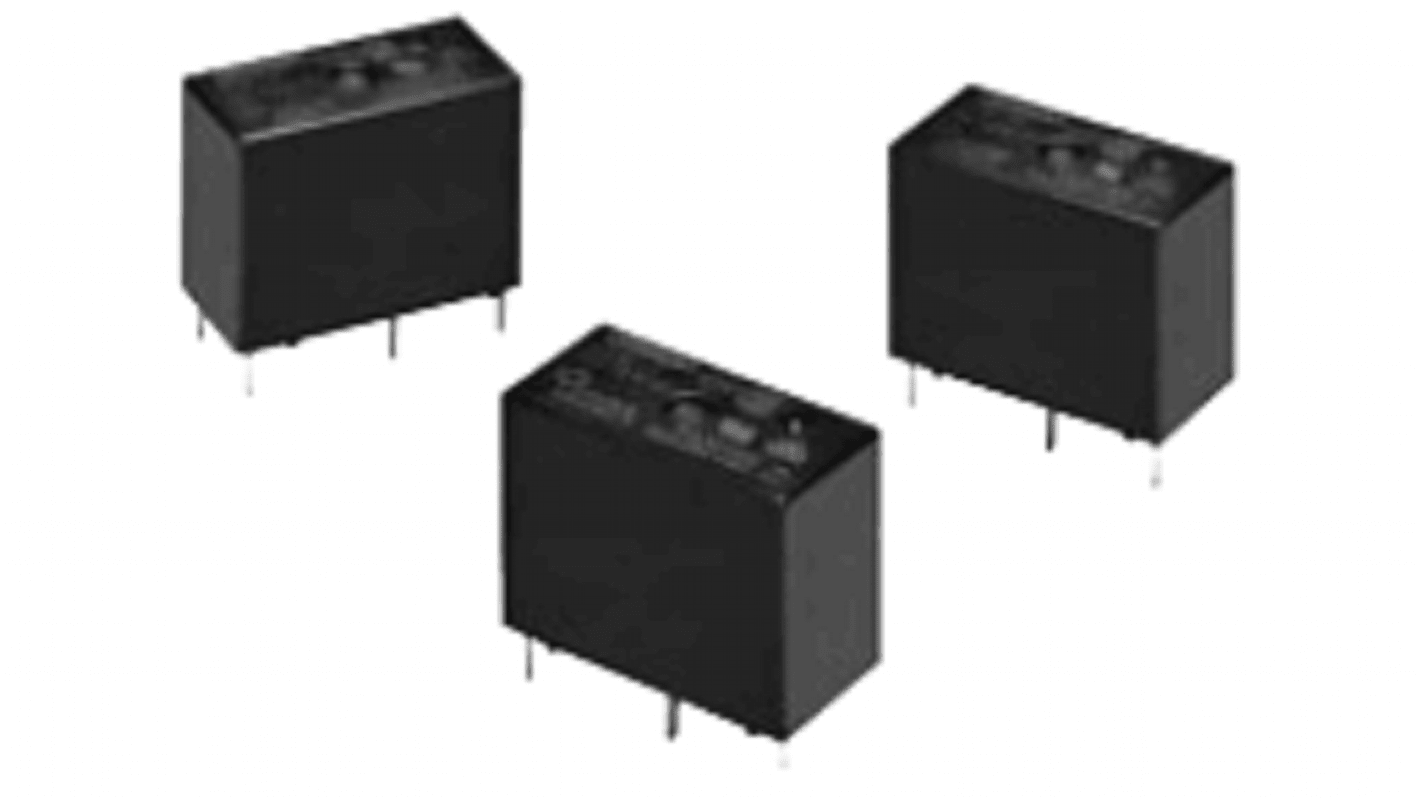

Aratas PCB Power Relay, 12V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 254-3133
- Mfr. Part No.:
- G5Q-14 DC12 (TY)
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (500 units, in trays of 500)*
£498.50
(exc. VAT)
£598.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 500 - 500 | £0.997 | £498.50 |
| 1000 - 2000 | £0.972 | £486.00 |
| 2500 + | £0.937 | £468.50 |
*price indicative
- RS Stock No.:
- 254-3133
- Mfr. Part No.:
- G5Q-14 DC12 (TY)
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G5Q | |
| Terminal Type | PCB Pin | |
| Switching Current | 10A | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 105°C | |
| Coil Resistance | 2.9kΩ | |
| Width | 10.3mm | |
| Standards/Approvals | CSA certified, EN/IEC, UL Recognised, VDE | |
| Coil Power | 400mW | |
| Height | 15.8mm | |
| Length | 20.3mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G5Q | ||
Terminal Type PCB Pin | ||
Switching Current 10A | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 105°C | ||
Coil Resistance 2.9kΩ | ||
Width 10.3mm | ||
Standards/Approvals CSA certified, EN/IEC, UL Recognised, VDE | ||
Coil Power 400mW | ||
Height 15.8mm | ||
Length 20.3mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Omron power relay is a miniature power relay wIth 1-pole 10A switching capacIty, excellent switching performance for a variety of loads. Small, yet provides 8-kv impulse wIthstand voltage (between coil and contacts).
Low coil power consumption (SPST-NO 200 mW, SPDT 400 mW)
Coil insulation system class F (UL1446)
IEC/EN 60335-1 conformed (-HA Model)
Reduced power consumption with voltage holding and pulse width modulation (PWM) control (only for G5Q-@-PW model)
