- RS Stock No.:
- 494-0328
- Mfr. Part No.:
- PCN-124D3MHZ000
- Brand:
- TE Connectivity
374 In stock - FREE next working day delivery available
142 available from Europe for delivery within 1 working day(s).
Price Each
£4.53
(exc. VAT)
£5.44
(inc. VAT)
Units | Per unit |
---|---|
1 - 24 | £4.53 |
25 - 49 | £4.43 |
50 - 99 | £4.31 |
100 - 249 | £4.16 |
250 + | £4.07 |
- RS Stock No.:
- 494-0328
- Mfr. Part No.:
- PCN-124D3MHZ000
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

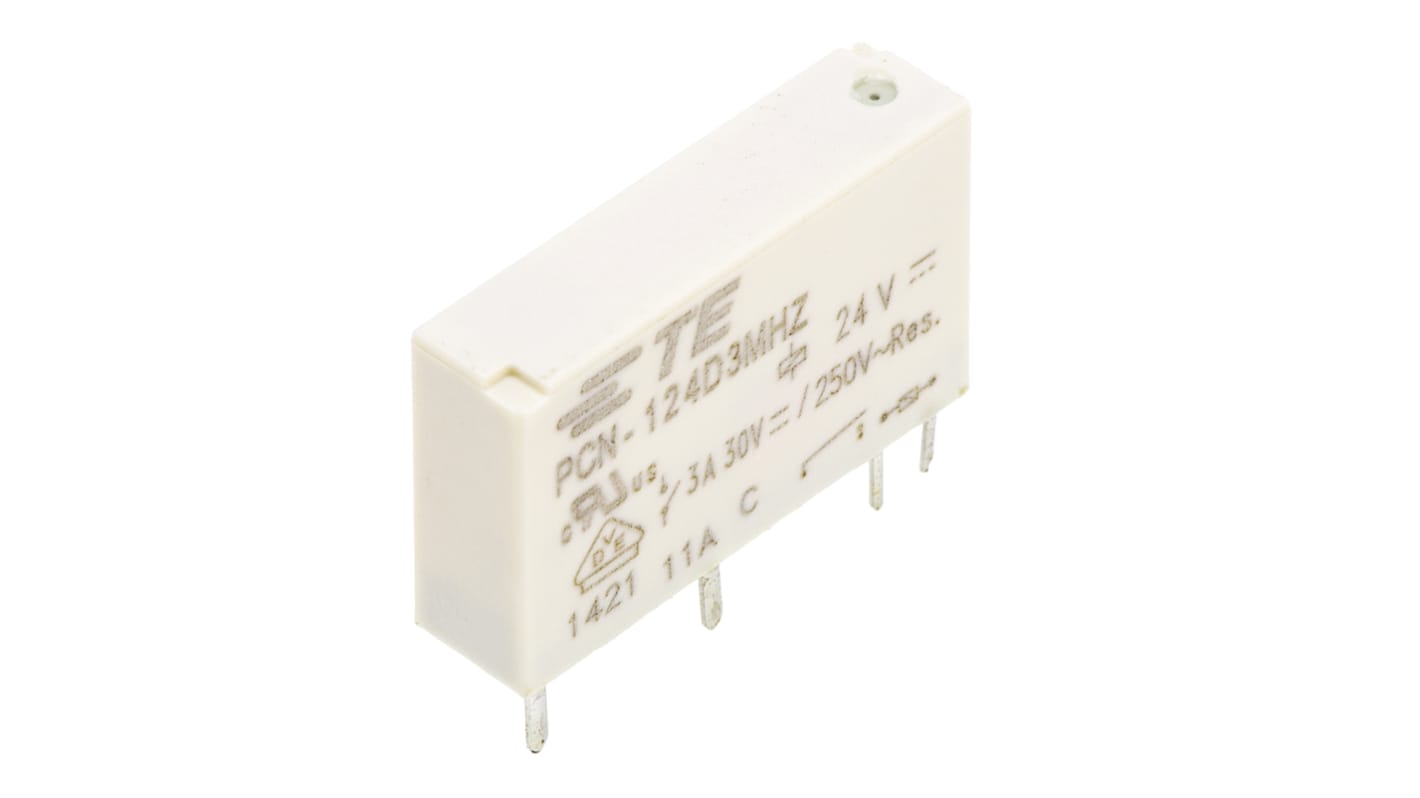

PCN Series - Slim Relays
Extremely slim, only 5mm width
Sensitive coil
Reinforced insulation
Cadmium-free contacts
RT III - washproof
Sensitive coil
Reinforced insulation
Cadmium-free contacts
RT III - washproof
Approvals
UL; VDE
![](https://media.rs-online.com/t_line/L4940306-01.gif)
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPST |
Mounting Type | PCB Mount |
Switching Current | 3A |
Number of Poles | 1 |
Latching | No |
Terminal Type | Through Hole |
Length | 20mm |
Coil Resistance | 4800Ω |
Height | 12.5mm |
Contact Material | Silver Nickel Alloy |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +70°C |
Series | PCN |
Depth | 5mm |
Maximum Switching Power AC | 750VA |
Application | PCB |
