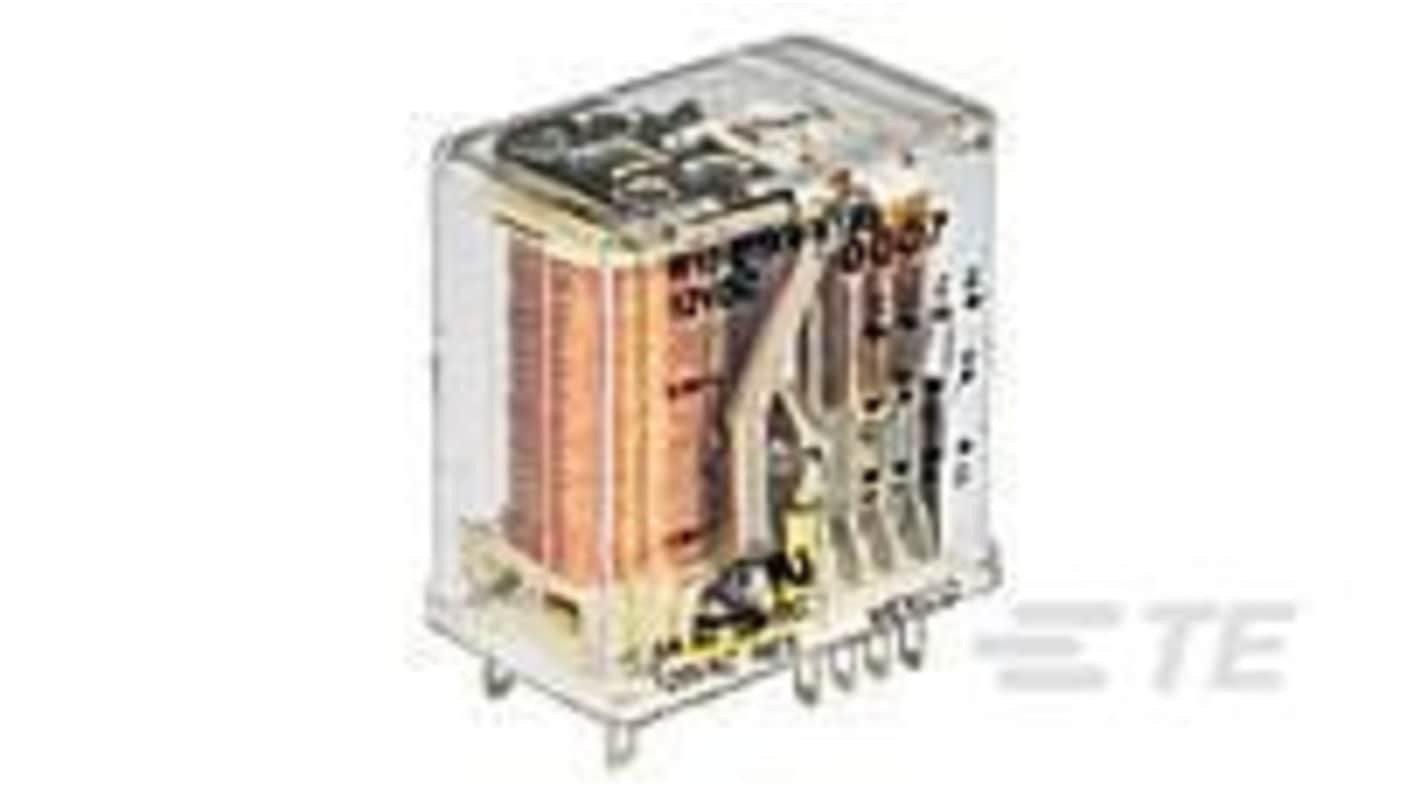

TE Connectivity PCB Power Relay, 24V Coil, 3A Switching Current, SPDT
- RS Stock No.:
- 478-479
- Distrelec Article No.:
- 304-60-275
- Mfr. Part No.:
- 2-1393767-0
- Brand:
- TE Connectivity
Subtotal (1 pack of 4 units)*
£148.77
(exc. VAT)
£178.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £148.77 | £37.193 |
*price indicative
- RS Stock No.:
- 478-479
- Distrelec Article No.:
- 304-60-275
- Mfr. Part No.:
- 2-1393767-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | Potter & Brumfield R10 | |
| Terminal Type | Solder | |
| Switching Current | 3A | |
| Switching AC Voltage | 120V ac | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 75°C | |
| Coil Resistance | 700Ω | |
| Width | 18.7mm | |
| Standards/Approvals | CSA | |
| Coil Power | 0.9W | |
| Length | 24.1mm | |
| Height | 30mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series Potter & Brumfield R10 | ||
Terminal Type Solder | ||
Switching Current 3A | ||
Switching AC Voltage 120V ac | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 75°C | ||
Coil Resistance 700Ω | ||
Width 18.7mm | ||
Standards/Approvals CSA | ||
Coil Power 0.9W | ||
Length 24.1mm | ||
Height 30mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- MX
The TE Connectivity General purpose signal relay is an exceptional component designed for DC applications, incorporating a monostable coil magnetic system. It features a reliable 1 Form C SPDT-CO contact arrangement, making it suitable for various switching requirements with a robust contact rating of 3 A. Ideal for industries where precision and dependability are paramount, this relay ensures efficient circuit operations. With a coil voltage of 24 VDC, it balances power efficiency with performance, providing necessary control over the electrical load. The sturdy dust-protected enclosure ensures longevity and resilience, protecting internal mechanisms from environmental hazards while maintaining top-notch functionality.
Compact design promotes easy integration into PCB setups
Dust-protected enclosure enhances durability in challenging environments
Monostable coil magnetic system allows for efficient and reliable operation
Single contact arrangement maximises space efficiency while ensuring performance
High insulation resistance significantly reduces the risk of circuit failure
Suitable for a wide operating temperature range ensuring reliability under varying conditions
Low power consumption optimises energy use without compromising function
Versatile application potential across various sectors, making it a preferred choice for engineers
