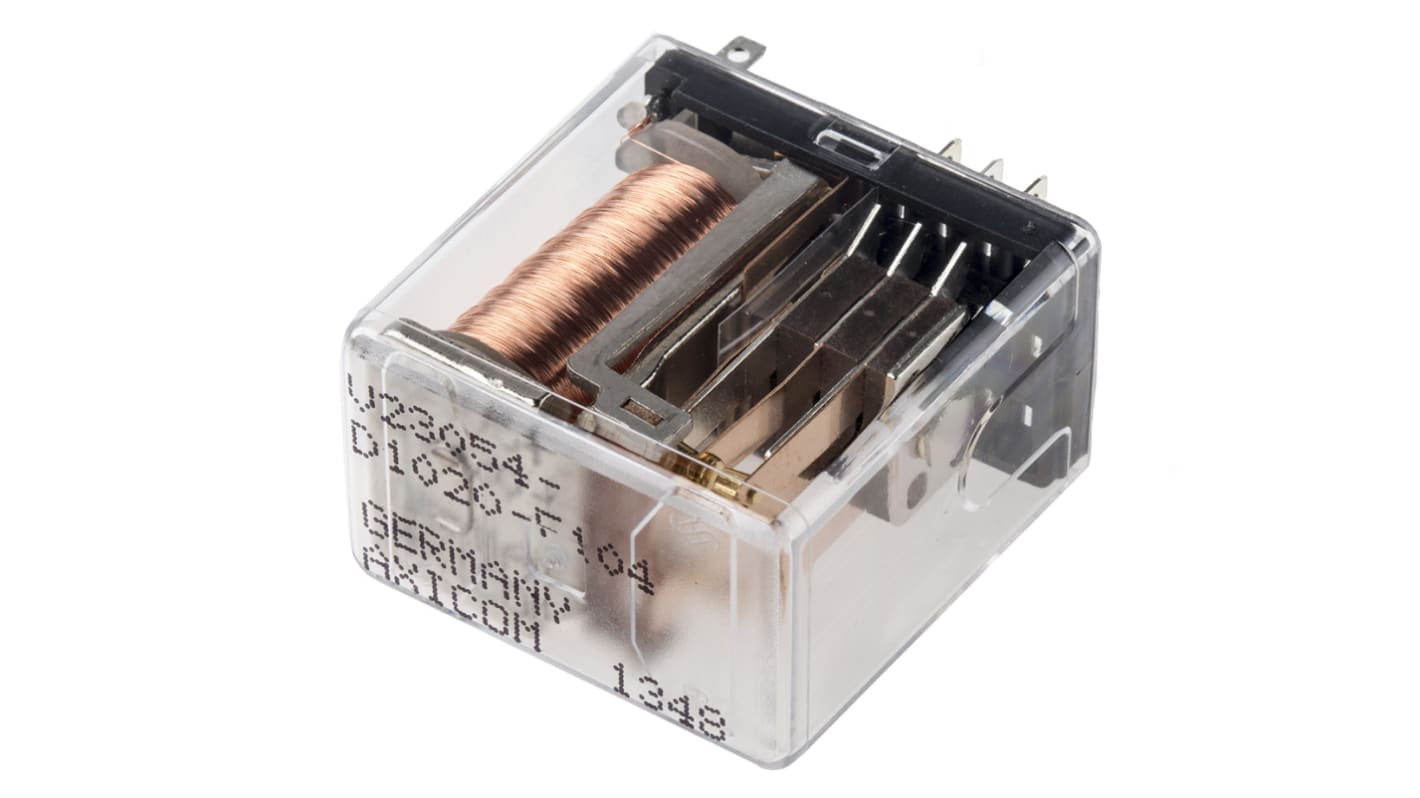

TE Connectivity PCB Power Relay, 24V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 715-0900
- Mfr. Part No.:
- V23054D1020F104 9-1393812-3
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£129.43
(exc. VAT)
£155.32
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 11 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £129.43 |
*price indicative
- RS Stock No.:
- 715-0900
- Mfr. Part No.:
- V23054D1020F104 9-1393812-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | Cradle S | |
| Terminal Type | Through Hole | |
| Switching Current | 5A | |
| Switching AC Voltage | 260V ac | |
| Switching Power | 500VA | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 260V dc | |
| Coil Resistance | 630Ω | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC, RoHS | |
| Width | 19mm | |
| Length | 30mm | |
| Height | 30mm | |
| Coil Power | 914mW | |
| Contact Material | Gold Plated | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series Cradle S | ||
Terminal Type Through Hole | ||
Switching Current 5A | ||
Switching AC Voltage 260V ac | ||
Switching Power 500VA | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 260V dc | ||
Coil Resistance 630Ω | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC, RoHS | ||
Width 19mm | ||
Length 30mm | ||
Height 30mm | ||
Coil Power 914mW | ||
Contact Material Gold Plated | ||
- COO (Country of Origin):
- DE
P Series cradle relay
Highly reliable multi purpose relay
Great variety of contact arrangements and materials to meet specific applications
Contacts for signal loads and currents up to 5A
Primarily intended for impulse operation
Sockets for easy and quick mounting of relays
