Releco PCB Power Relay, 24V ac/dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 613-8072
- Mfr. Part No.:
- C12A21BX24AD
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£20.23
(exc. VAT)
£24.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 95 unit(s) shipping from 27 April 2026
- Plus 5 unit(s) shipping from 27 April 2026
- Plus 140 unit(s) shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.23 |
| 5 - 9 | £19.82 |
| 10 - 14 | £19.42 |
| 15 + | £19.01 |
*price indicative
- RS Stock No.:
- 613-8072
- Mfr. Part No.:
- C12A21BX24AD
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Product Type | Power Relay | |
| Coil Voltage | 24V ac/dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | C12 | |
| Terminal Type | Through Hole | |
| Switching Current | 5A | |
| Switching AC Voltage | 30V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Coil Resistance | 742Ω | |
| Maximum Operating Temperature | 60°C | |
| Height | 35.4mm | |
| Standards/Approvals | EN, UL, RoHS, IEC, CSA | |
| Coil Power | 700mW | |
| Length | 28.8mm | |
| Contact Material | Gold Plated | |
| Select all | ||
|---|---|---|
Brand Releco | ||
Product Type Power Relay | ||
Coil Voltage 24V ac/dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series C12 | ||
Terminal Type Through Hole | ||
Switching Current 5A | ||
Switching AC Voltage 30V ac | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Coil Resistance 742Ω | ||
Maximum Operating Temperature 60°C | ||
Height 35.4mm | ||
Standards/Approvals EN, UL, RoHS, IEC, CSA | ||
Coil Power 700mW | ||
Length 28.8mm | ||
Contact Material Gold Plated | ||

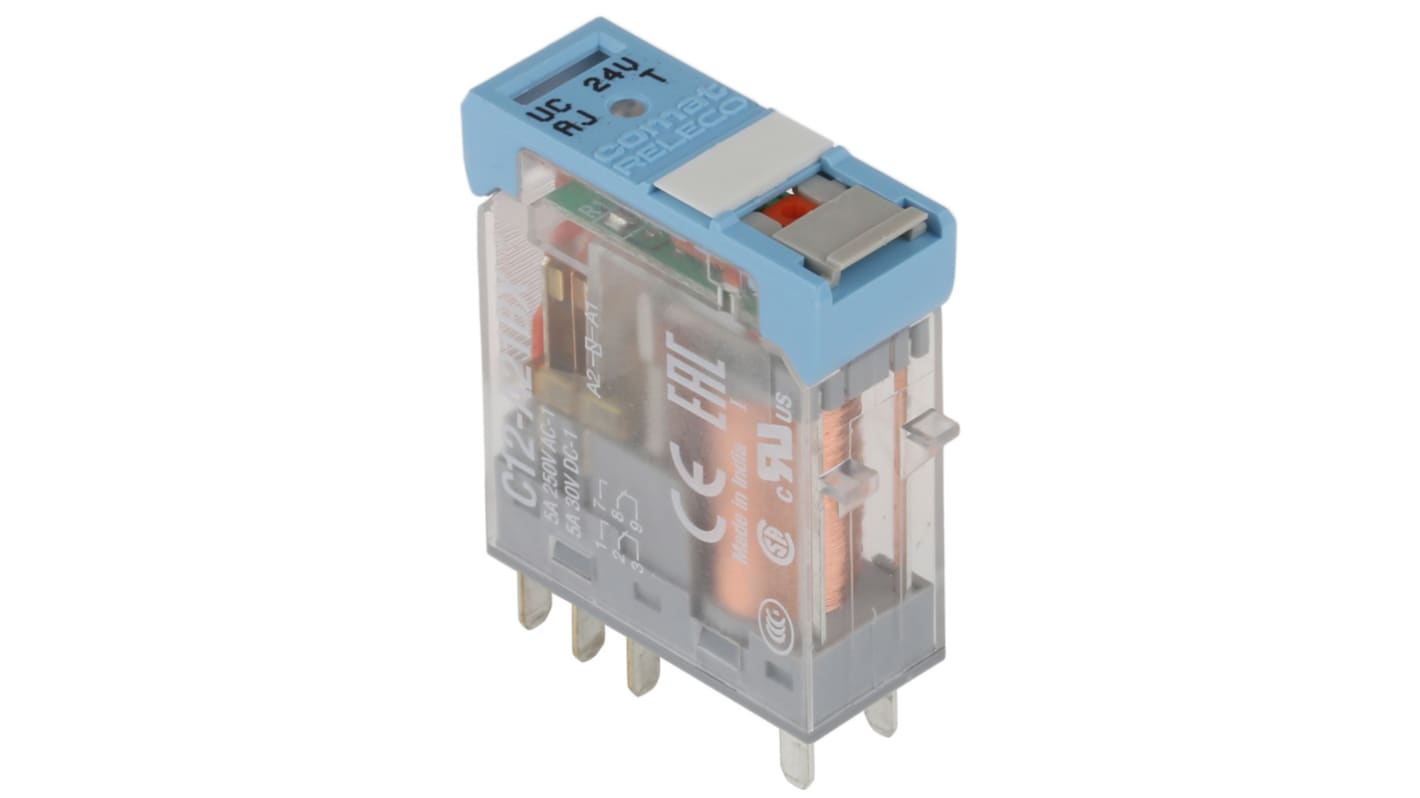

RELECO Non Latching Relay
The RELECO C12 series 2-pole PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with a 24VDC/AC coil and 5A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch.
Features and Benefits
Coil power is 700mW
Robust industrial terminal blades
Operating temperature ranges between -20°C and 60°C
Certifications
IP40 rated
