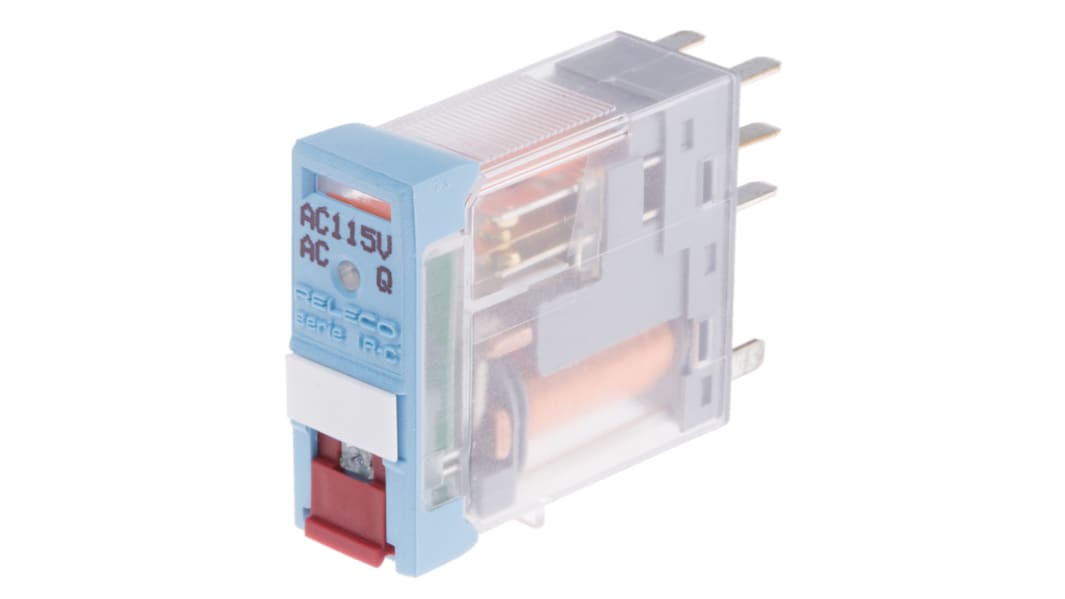

Releco PCB Mount Power Relay, 115V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 613-8050
- Mfr. Part No.:
- C12A21X115A
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£17.76
(exc. VAT)
£21.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.76 |
| 5 - 9 | £17.41 |
| 10 - 14 | £17.05 |
| 15 + | £16.70 |
*price indicative
- RS Stock No.:
- 613-8050
- Mfr. Part No.:
- C12A21X115A
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 115V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 2 | |
| Series | C12 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 28.8mm | |
| Coil Resistance | 7300Ω | |
| Coil Power | 1.1W | |
| Life | 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles | |
| Depth | 12.5mm | |
| Maximum Operating Temperature | +60°C | |
| Contact Material | Gold Plated | |
| Isolation Coil To Contact | 5kV | |
| Minimum Operating Temperature | -40°C | |
| Height | 35.4mm | |
| Maximum Switching Power AC | 1.2 kVA | |
| Application | General Purpose | |
| Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 115V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Series C12 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 28.8mm | ||
Coil Resistance 7300Ω | ||
Coil Power 1.1W | ||
Life 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles | ||
Depth 12.5mm | ||
Maximum Operating Temperature +60°C | ||
Contact Material Gold Plated | ||
Isolation Coil To Contact 5kV | ||
Minimum Operating Temperature -40°C | ||
Height 35.4mm | ||
Maximum Switching Power AC 1.2 kVA | ||
Application General Purpose | ||
- COO (Country of Origin):
- ES
5A DPCO - C12 Series
Robust industrial terminals
LED indication and mechanical flag indicator
Dual function test button, push to test or lift to latch
Maximum switching voltage of 250Vac
Operating temperature range: -20 to +60°C.
Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
LED indication and mechanical flag indicator
Dual function test button, push to test or lift to latch
Maximum switching voltage of 250Vac
Operating temperature range: -20 to +60°C.
Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
