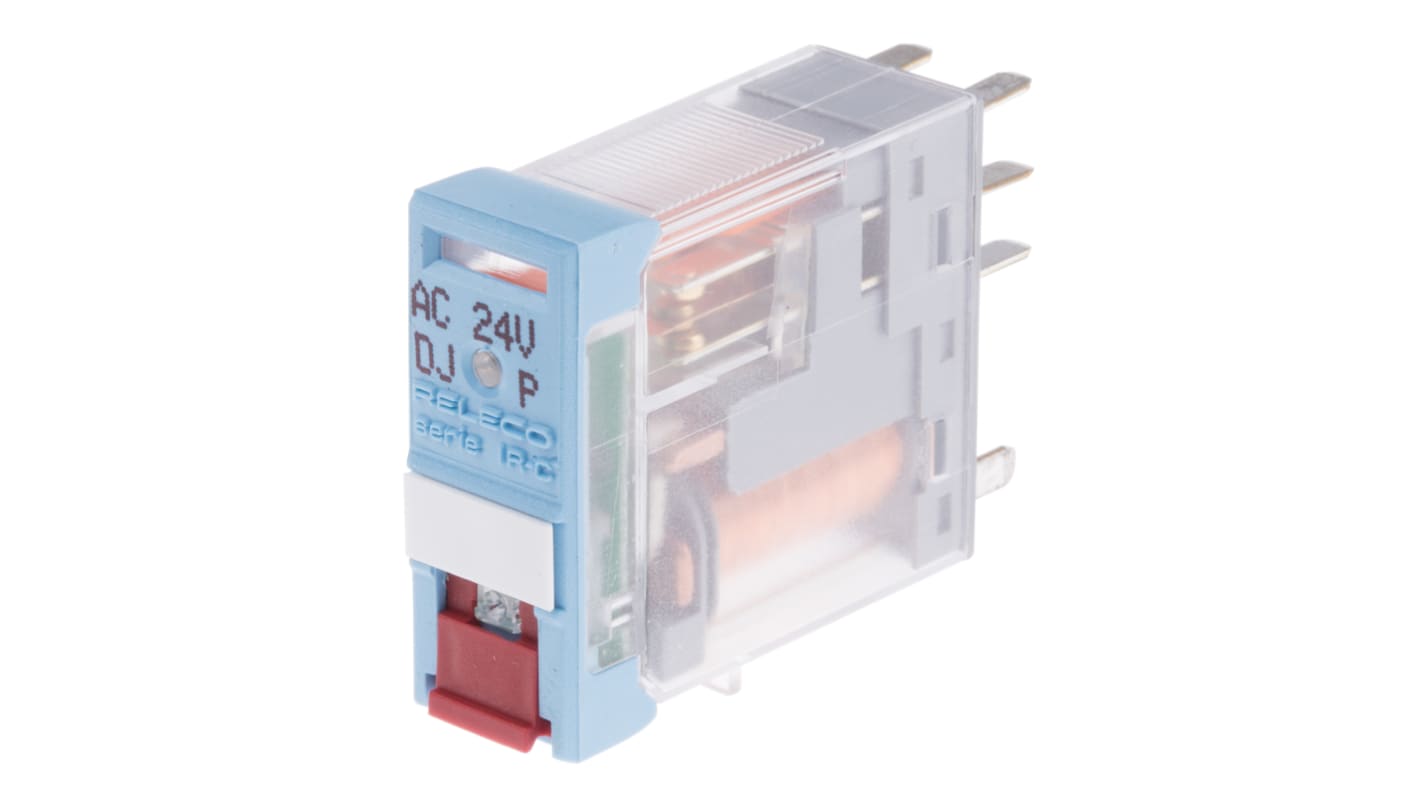

Releco PCB Mount Power Relay, 24V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 613-8038
- Mfr. Part No.:
- C12A21X24A
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£17.30
(exc. VAT)
£20.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.30 |
| 5 - 9 | £16.94 |
| 10 - 14 | £16.60 |
| 15 + | £16.26 |
*price indicative
- RS Stock No.:
- 613-8038
- Mfr. Part No.:
- C12A21X24A
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 24V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 2 | |
| Series | C12 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 250V dc | |
| Length | 28.8mm | |
| Coil Resistance | 290Ω | |
| Coil Power | 1.1W | |
| Height | 35.4mm | |
| Isolation Coil To Contact | 5kV | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 12.5mm | |
| Contact Material | Gold Plated | |
| Maximum Switching Power AC | 1.2 kVA | |
| Application | Interface | |
| Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Series C12 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 250V dc | ||
Length 28.8mm | ||
Coil Resistance 290Ω | ||
Coil Power 1.1W | ||
Height 35.4mm | ||
Isolation Coil To Contact 5kV | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -40°C | ||
Depth 12.5mm | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 1.2 kVA | ||
Application Interface | ||
5A DPCO - C12 Series
Robust industrial terminals
LED indication and mechanical flag indicator
Dual function test button, push to test or lift to latch
Maximum switching voltage of 250Vac
Operating temperature range: -20 to +60°C.
Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
LED indication and mechanical flag indicator
Dual function test button, push to test or lift to latch
Maximum switching voltage of 250Vac
Operating temperature range: -20 to +60°C.
Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
