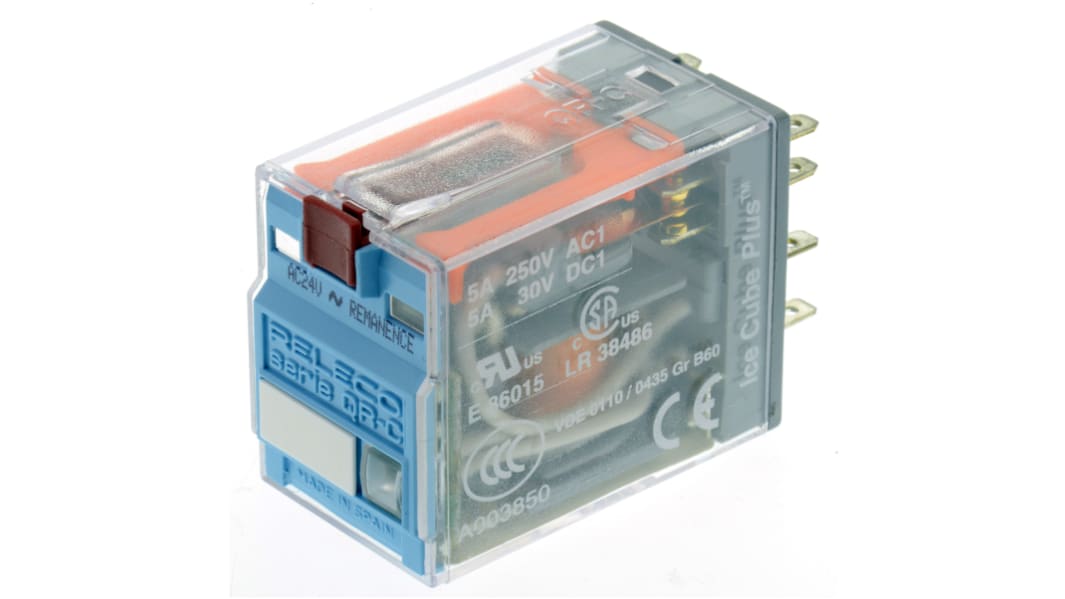

Releco Plug In Latching Power Relay, 24V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 213-0800
- Mfr. Part No.:
- C9-R21 / AC 24 V
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£33.06
(exc. VAT)
£39.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 39 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £33.06 |
5 - 9 | £32.40 |
10 - 14 | £31.74 |
15 + | £31.08 |
*price indicative
- RS Stock No.:
- 213-0800
- Mfr. Part No.:
- C9-R21 / AC 24 V
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Releco | |
Coil Voltage | 24V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 5A | |
Number of Poles | 2 | |
Latching | Yes | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 120V ac | |
Length | 21mm | |
Coil Resistance | 50Ω | |
Coil Power | 1.2W | |
Depth | 28mm | |
Isolation Coil To Contact | 2.5kV | |
Minimum Operating Temperature | -40°C | |
Contact Material | Gold Plated | |
Life | 20000000 (Mechanical) cycles | |
Maximum Operating Temperature | +60°C | |
Height | 37.5mm | |
Maximum Switching Power AC | 600 kVA | |
Dimensions | 21 x 37.5 x 28mm | |
Select all | ||
---|---|---|
Brand Releco | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Latching Yes | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 120V ac | ||
Length 21mm | ||
Coil Resistance 50Ω | ||
Coil Power 1.2W | ||
Depth 28mm | ||
Isolation Coil To Contact 2.5kV | ||
Minimum Operating Temperature -40°C | ||
Contact Material Gold Plated | ||
Life 20000000 (Mechanical) cycles | ||
Maximum Operating Temperature +60°C | ||
Height 37.5mm | ||
Maximum Switching Power AC 600 kVA | ||
Dimensions 21 x 37.5 x 28mm | ||
5A DPCO Latching - C9 Series
Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C.
Contacts remain latched on even after the supply is removed from the 'set' input
Contacts are switched off by pulsing the 'reset' input
Relay socket also available (see stock no. 437-783)
Contacts are switched off by pulsing the 'reset' input
Relay socket also available (see stock no. 437-783)
Approvals
UL; LLOYD'S; CSA; SEV; NEMKO; SETI; SEMKO; DEMKO; OVE
