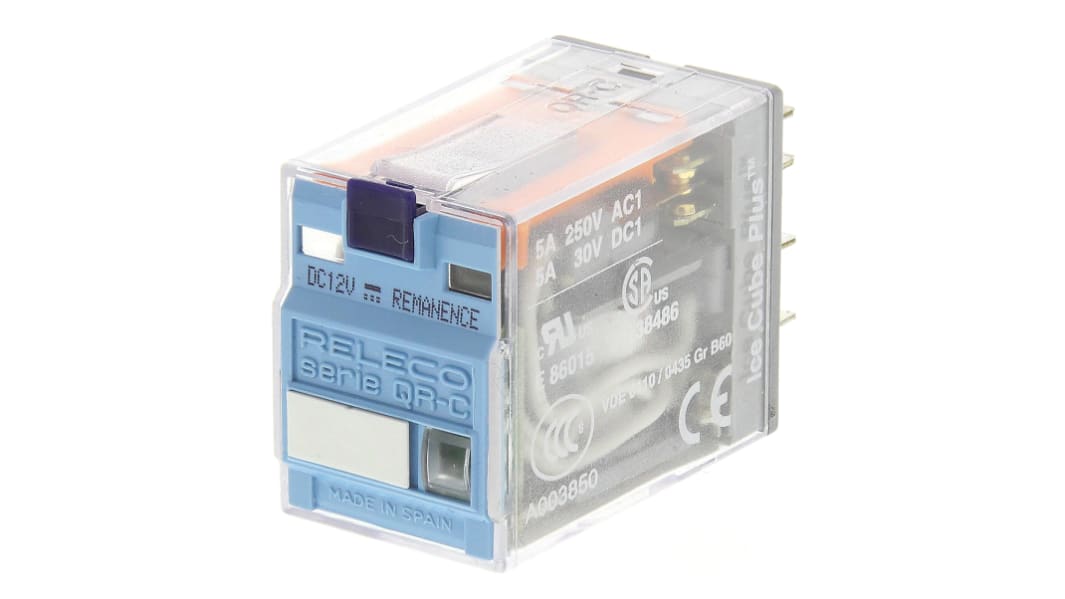

Releco Power Relay, 12V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 213-0787
- Mfr. Part No.:
- C9-R21 / DC 12 V
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£37.09
(exc. VAT)
£44.51
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £37.09 |
| 5 - 9 | £36.36 |
| 10 - 14 | £35.60 |
| 15 + | £34.88 |
*price indicative
- RS Stock No.:
- 213-0787
- Mfr. Part No.:
- C9-R21 / DC 12 V
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Series | C9 | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Switching AC Voltage | 120V ac | |
| Switching Power | 600kVA | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 100Ω | |
| Maximum Operating Temperature | 60°C | |
| Height | 37.5mm | |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL | |
| Coil Power | 1.2W | |
| Width | 28mm | |
| Length | 21mm | |
| Contact Material | Gold Plated | |
| Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Series C9 | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Switching AC Voltage 120V ac | ||
Switching Power 600kVA | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 100Ω | ||
Maximum Operating Temperature 60°C | ||
Height 37.5mm | ||
Standards/Approvals CSA, EN, IEC, RoHS, UL | ||
Coil Power 1.2W | ||
Width 28mm | ||
Length 21mm | ||
Contact Material Gold Plated | ||
5A DPCO Latching - C9 Series
Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C.
Contacts remain latched on even after the supply is removed from the 'set' input
Contacts are switched off by pulsing the 'reset' input
Relay socket also available (see stock no. 437-783)
Approvals
UL; LLOYD'S; CSA; SEV; NEMKO; SETI; SEMKO; DEMKO; OVE
