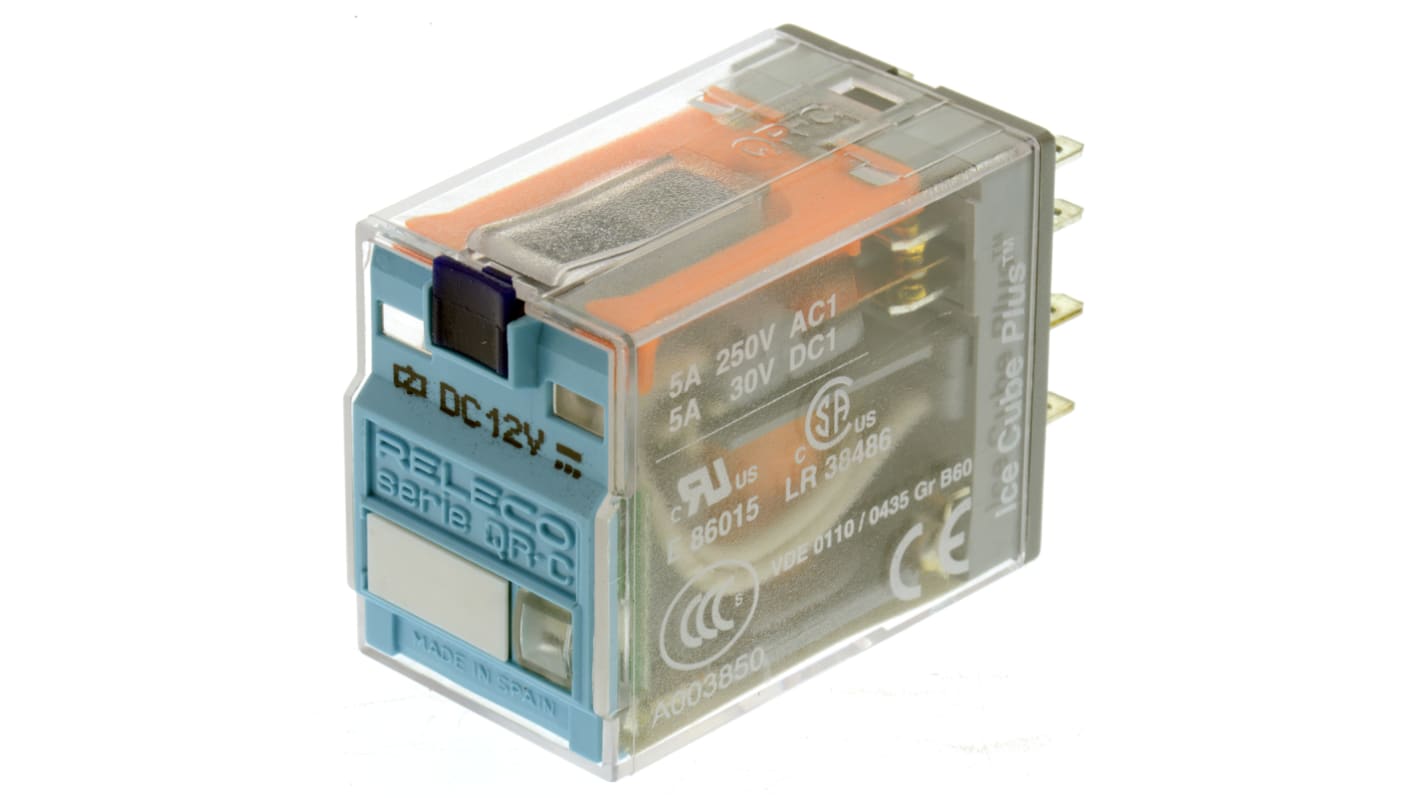

Releco Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 376-436
- Mfr. Part No.:
- C9-A41X / DC 12 V
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£13.85
(exc. VAT)
£16.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 48 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.85 |
| 5 - 9 | £13.58 |
| 10 - 14 | £13.31 |
| 15 + | £13.03 |
*price indicative
- RS Stock No.:
- 376-436
- Mfr. Part No.:
- C9-A41X / DC 12 V
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 12V dc | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 5A | |
| Number of Poles | 4 | |
| Series | C9 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Length | 28mm | |
| Coil Resistance | 148Ω | |
| Maximum Operating Temperature | +60°C | |
| Depth | 21mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Gold Plated | |
| Height | 37.5mm | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Compact | |
Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 12V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 4 | ||
Series C9 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Length 28mm | ||
Coil Resistance 148Ω | ||
Maximum Operating Temperature +60°C | ||
Depth 21mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Gold Plated | ||
Height 37.5mm | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Compact | ||
5A 4PCO Standard - C9 Series
Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C.
