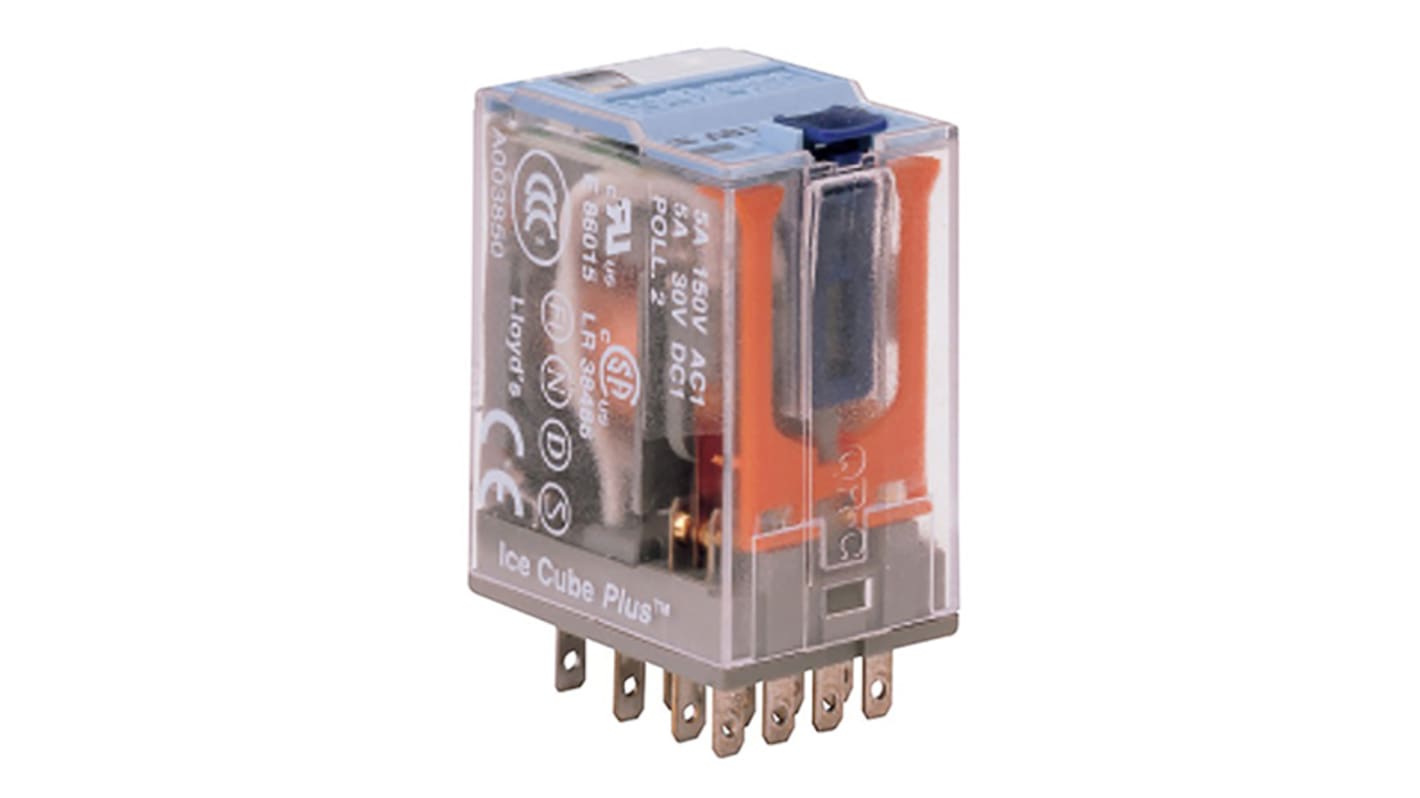

Turck Plug In Power Relay, 240V ac Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 842-3849
- Mfr. Part No.:
- C9-A41X/240VAC
- Brand:
- Turck
10 In stock - FREE next working day delivery available
Added
Price Each
£37.87
(exc. VAT)
£45.44
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £37.87 |
| 5 - 9 | £36.36 |
| 10 + | £34.46 |
- RS Stock No.:
- 842-3849
- Mfr. Part No.:
- C9-A41X/240VAC
- Brand:
- Turck
Technical Reference
Legislation and Compliance
Product Details
5A 4PCO Standard - C9 Series
Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 240V ac |
| Contact Configuration | 4PDT |
| Mounting Type | Plug In |
| Switching Current | 5A |
| Number of Poles | 4 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 110V dc |
| Length | 21mm |
| Coil Resistance | 18600Ω |
| Coil Power | 1.2W |
| Series | C9-A41 |
| Height | 37.5mm |
| Depth | 28mm |
| Minimum Operating Temperature | -40°C |
| Life | ≥100000 (Electrical) Operations, 10000000 (Mechanical) Operations |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +70°C |
| Isolation Coil To Contact | 2.5kV |
| Application | General Purpose |
