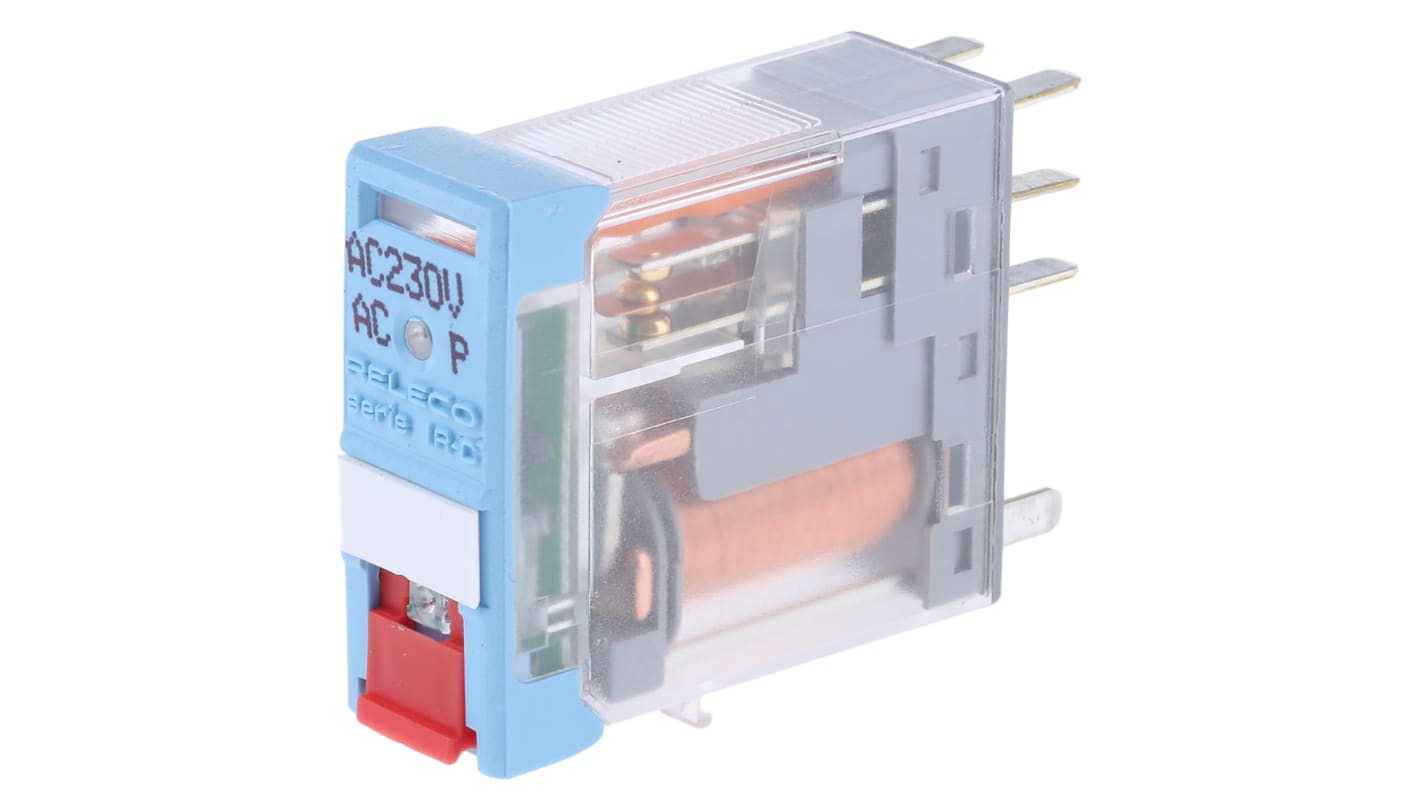

Releco PCB Mount Power Relay, 230V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 613-8066
- Mfr. Part No.:
- C12A21X230A
- Brand:
- Releco
Save 5% when you buy 15 units
Subtotal (1 unit)*
£20.86
(exc. VAT)
£25.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.86 |
| 5 - 9 | £20.45 |
| 10 - 14 | £20.02 |
| 15 + | £19.61 |
*price indicative
- RS Stock No.:
- 613-8066
- Mfr. Part No.:
- C12A21X230A
- Brand:
- Releco
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | C12 | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 28.8mm | |
| Coil Resistance | 28800Ω | |
| Coil Power | 1.1W | |
| Height | 35.4mm | |
| Depth | 12.5mm | |
| Maximum Operating Temperature | +60°C | |
| Isolation Coil To Contact | 5kV | |
| Life | 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 1.2 kVA | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Latching No | ||
Series C12 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 28.8mm | ||
Coil Resistance 28800Ω | ||
Coil Power 1.1W | ||
Height 35.4mm | ||
Depth 12.5mm | ||
Maximum Operating Temperature +60°C | ||
Isolation Coil To Contact 5kV | ||
Life 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 1.2 kVA | ||
Application General Purpose | ||
