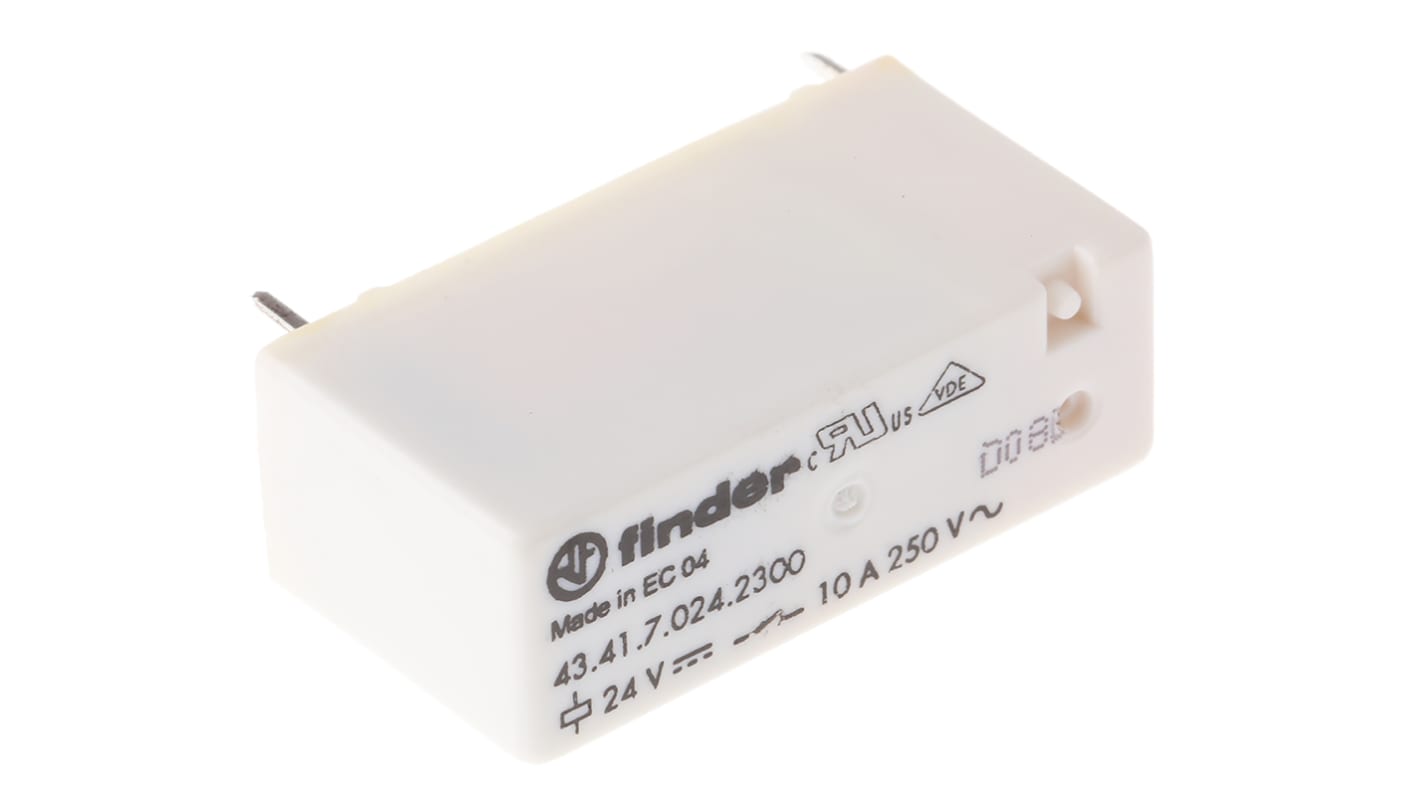

Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 708-3204
- Mfr. Part No.:
- 43.41.7.024.2300
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.12
(exc. VAT)
£6.14
(inc. VAT)
- RS Stock No.:
- 708-3204
- Mfr. Part No.:
- 43.41.7.024.2300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Series | 43 Series | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 30.2mm | |
| Coil Resistance | 2200Ω | |
| Coil Power | 250mW | |
| Isolation Coil To Contact | 6kV | |
| Depth | 10.2mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Height | 15.4mm | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Maximum Switching Power AC | 2.5 kVA | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Series 43 Series | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 30.2mm | ||
Coil Resistance 2200Ω | ||
Coil Power 250mW | ||
Isolation Coil To Contact 6kV | ||
Depth 10.2mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Height 15.4mm | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Maximum Switching Power AC 2.5 kVA | ||
- COO (Country of Origin):
- IT
43 Series
Low profile (15.4mm height)
High Isolation coil to contact: 6000Vac
Dimensions: 15.4x10.2x30.2mm
High Isolation coil to contact: 6000Vac
Dimensions: 15.4x10.2x30.2mm
Approvals
UL recognised component for Canada and US, VDE
