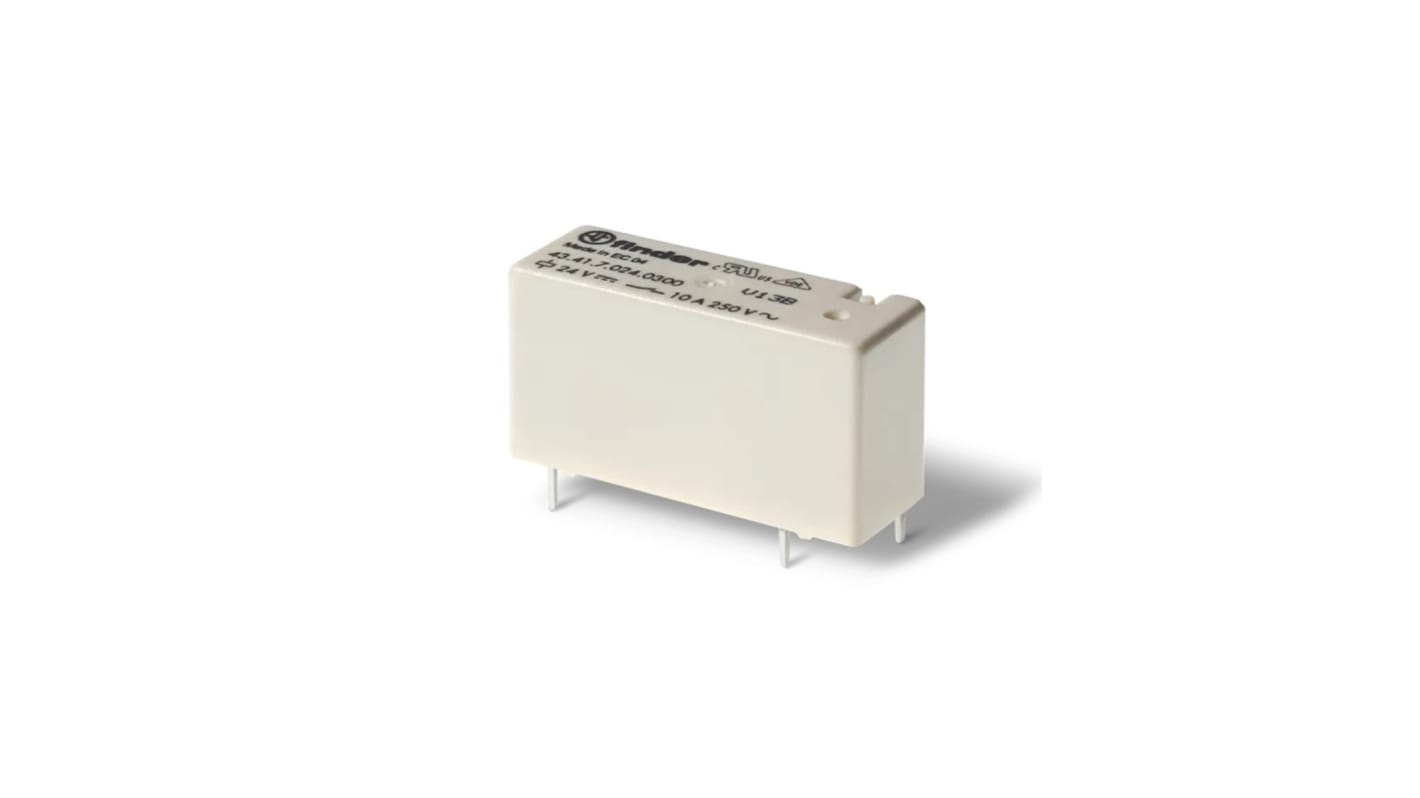

Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 282-6657
- Mfr. Part No.:
- 434170244001
- Brand:
- Finder
Subtotal (1 unit)*
£5.73
(exc. VAT)
£6.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 27 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.73 |
*price indicative
- RS Stock No.:
- 282-6657
- Mfr. Part No.:
- 434170244001
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 1 | |
Series | 43 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 48V dc | |
Maximum Switching Current AC | 15 A | |
Coil Power | 250mW | |
Life | 100000 Cycles | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Series 43 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 48V dc | ||
Maximum Switching Current AC 15 A | ||
Coil Power 250mW | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
- COO (Country of Origin):
- ES
Finder Series 43 Power Relay, 24V DC Coil Voltage, 10A Switching Current - 434170244001
This power relay is a low-profile PCB mount device designed for efficient switching applications. With a single pole and a contact configuration of SPDT, it operates at a coil voltage of 24V DC. Featuring a compact height of 15.4mm, this relay can handle switching currents of up to 10A, making it suitable for various applications in electronics and automation.
Features & Benefits
• Designed for PCB mounting, offering versatile installation options
• High switching current capacity of 10A for reliable performance
• Outstanding coil-to-contact isolation rated at 6kV
• Long operational lifespan exceeding 100,000 cycles
• Suitable for a wide temperature range from -40°C to +85°C
• Complies with cURus and EAC standards for safety assurance
• High switching current capacity of 10A for reliable performance
• Outstanding coil-to-contact isolation rated at 6kV
• Long operational lifespan exceeding 100,000 cycles
• Suitable for a wide temperature range from -40°C to +85°C
• Complies with cURus and EAC standards for safety assurance
Applications
• Utilised in medical and dental equipment
• Implemented in alarm systems and security devices
• Commonly found in air conditioning systems
• Integrated into electronic circuit boards for control
• Employed in vending machines for automated dispensing
• Implemented in alarm systems and security devices
• Commonly found in air conditioning systems
• Integrated into electronic circuit boards for control
• Employed in vending machines for automated dispensing
What is the maximum switching voltage for this relay?
The maximum switching voltage for AC applications is 400V and for DC applications, it is 48V.
How does this relay ensure safety during operation?
The device features a coil-to-contact isolation of 6kV, significantly reducing the risk of electrical faults.
What types of loads can this relay switch?
It can switch a variety of loads, including resistive and inductive loads, ensuring compatibility with diverse applications.
What materials are used for the contacts in this relay?
The contacts are made of AgSnO2, which provides excellent conductivity and durability in high-load scenarios.
