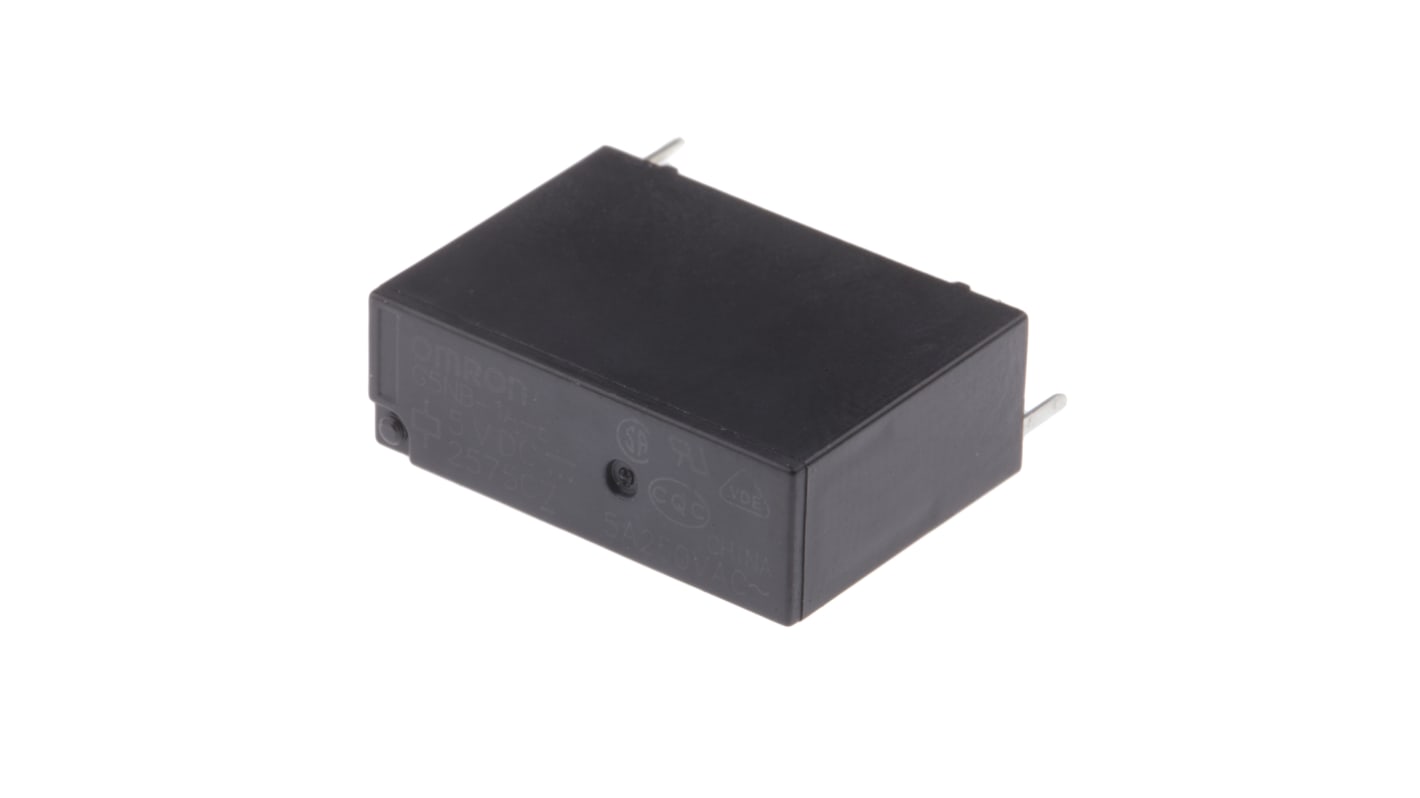

Omron PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 683-9214
- Mfr. Part No.:
- G5NB-1A-E DC5
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 683-9214
- Mfr. Part No.:
- G5NB-1A-E DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 20.5mm | |
| Coil Resistance | 125Ω | |
| Coil Power | 200mW | |
| Series | G5NB | |
| Minimum Operating Temperature | -40°C | |
| Life | 100000 (Electrical) cycles | |
| Height | 15.3mm | |
| Maximum Operating Temperature | +70°C | |
| Depth | 7.2mm | |
| Isolation Coil To Contact | 4kV ac | |
| Maximum Switching Power DC | 90 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 20.5mm | ||
Coil Resistance 125Ω | ||
Coil Power 200mW | ||
Series G5NB | ||
Minimum Operating Temperature -40°C | ||
Life 100000 (Electrical) cycles | ||
Height 15.3mm | ||
Maximum Operating Temperature +70°C | ||
Depth 7.2mm | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Switching Power DC 90 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
The Omron G5NB PCB Power Relay has 1-pole 5A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.
Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals
G5NB Series
Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
Approvals
UL, CSA, VDE
