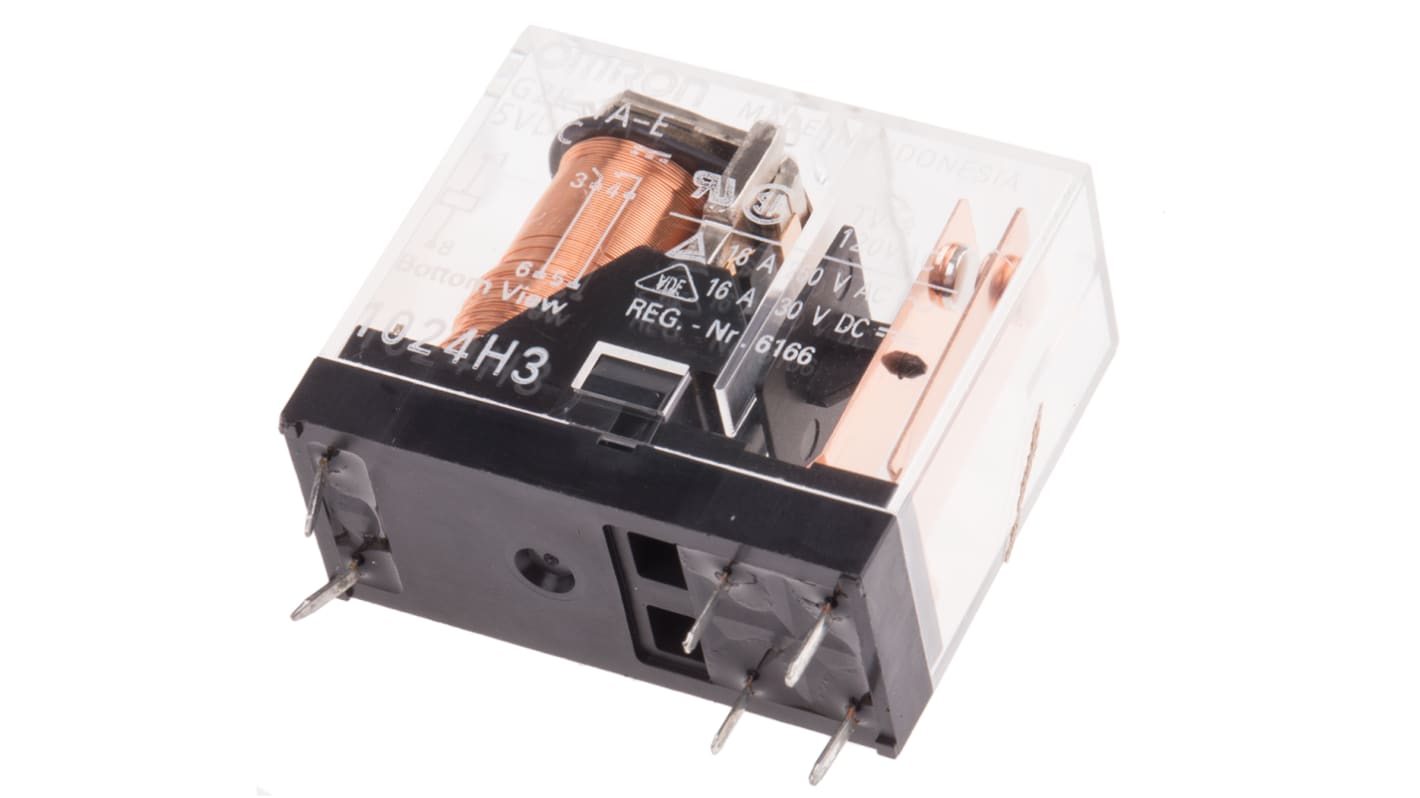

Omron PCB Power Relay, 5V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 683-8713
- Mfr. Part No.:
- G2R-1A-E DC5
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£3.74
(exc. VAT)
£4.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 25 unit(s) shipping from 12 May 2026
- Plus 73 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £3.74 |
| 25 - 49 | £3.32 |
| 50 - 99 | £2.98 |
| 100 - 249 | £2.85 |
| 250 + | £2.65 |
*price indicative
- RS Stock No.:
- 683-8713
- Mfr. Part No.:
- G2R-1A-E DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G2R-1 | |
| Terminal Type | Through Hole | |
| Switching Current | 16A | |
| Switching DC Voltage | 125V dc | |
| Switching Power | 150W | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 380V ac | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 47Ω | |
| Standards/Approvals | RoHS | |
| Height | 25.5mm | |
| Length | 29mm | |
| Coil Power | 0.9VA | |
| Width | 13mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 30mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G2R-1 | ||
Terminal Type Through Hole | ||
Switching Current 16A | ||
Switching DC Voltage 125V dc | ||
Switching Power 150W | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 380V ac | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 47Ω | ||
Standards/Approvals RoHS | ||
Height 25.5mm | ||
Length 29mm | ||
Coil Power 0.9VA | ||
Width 13mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 30mΩ | ||
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
