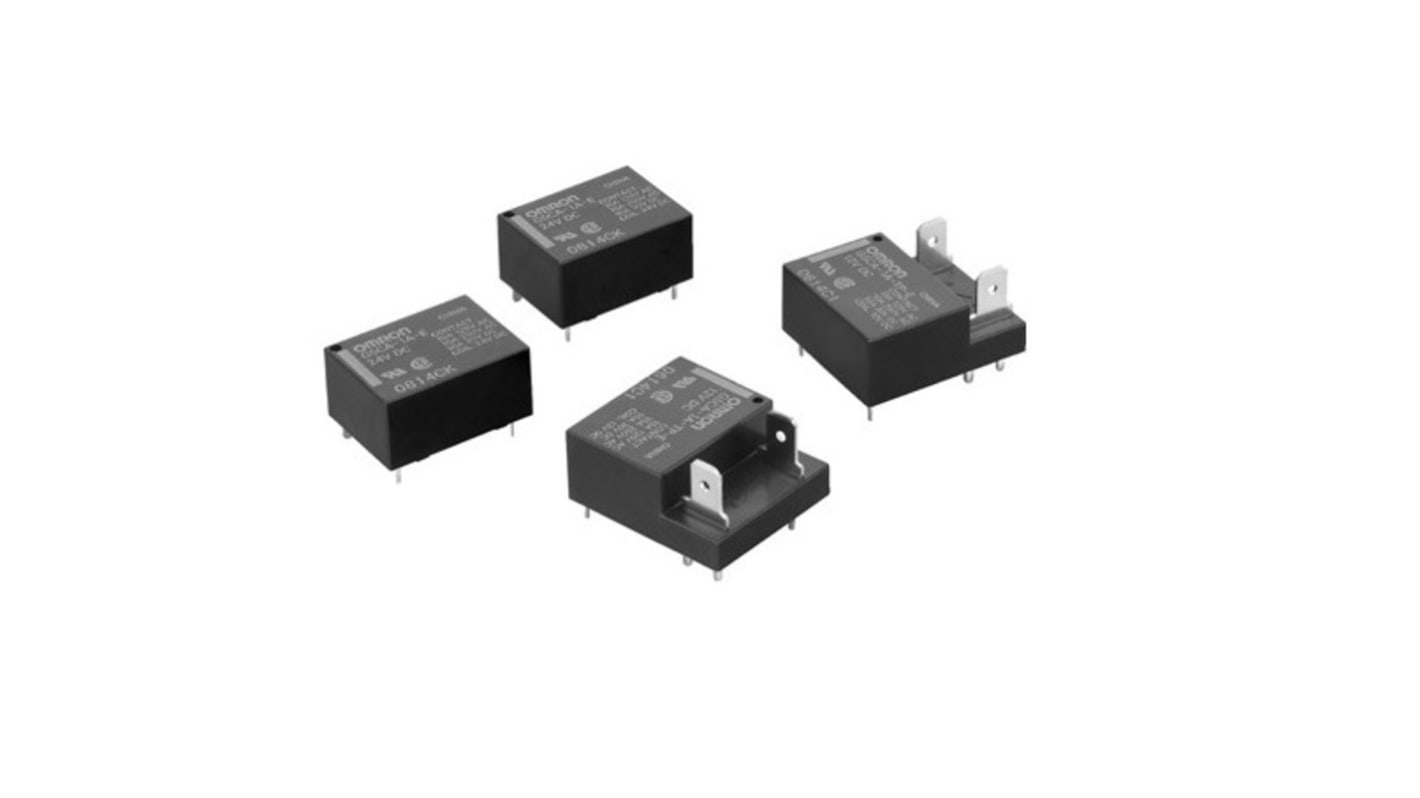

Omron PCB Relay, 5V dc Coil, 15A Switching Current, SPST
- RS Stock No.:
- 243-6571
- Mfr. Part No.:
- G5CA-1A-E DC5
- Brand:
- Omron
Bulk discount available
Subtotal (1 tube of 200 units)*
£310.00
(exc. VAT)
£372.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 200 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 200 - 200 | £1.55 | £310.00 |
| 400 - 600 | £1.52 | £304.00 |
| 800 + | £1.48 | £296.00 |
*price indicative
- RS Stock No.:
- 243-6571
- Mfr. Part No.:
- G5CA-1A-E DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5CA | |
| Terminal Type | Through Hole | |
| Switching Current | 15A | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 60V dc | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 2.9kΩ | |
| Length | 22mm | |
| Height | 11mm | |
| Coil Power | 200mW | |
| Width | 16mm | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Product Type Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5CA | ||
Terminal Type Through Hole | ||
Switching Current 15A | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 60V dc | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 2.9kΩ | ||
Length 22mm | ||
Height 11mm | ||
Coil Power 200mW | ||
Width 16mm | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron G5CA series is flat power relays used for switching power in household appliances or for outputs from industrial devices. The coil voltage is 5 Vdc, coil resistance is 125 ohms and coil current is 40 mA.
High-sensitivity models available with low power consumption (150 mW)
It has Silver alloy contacts
