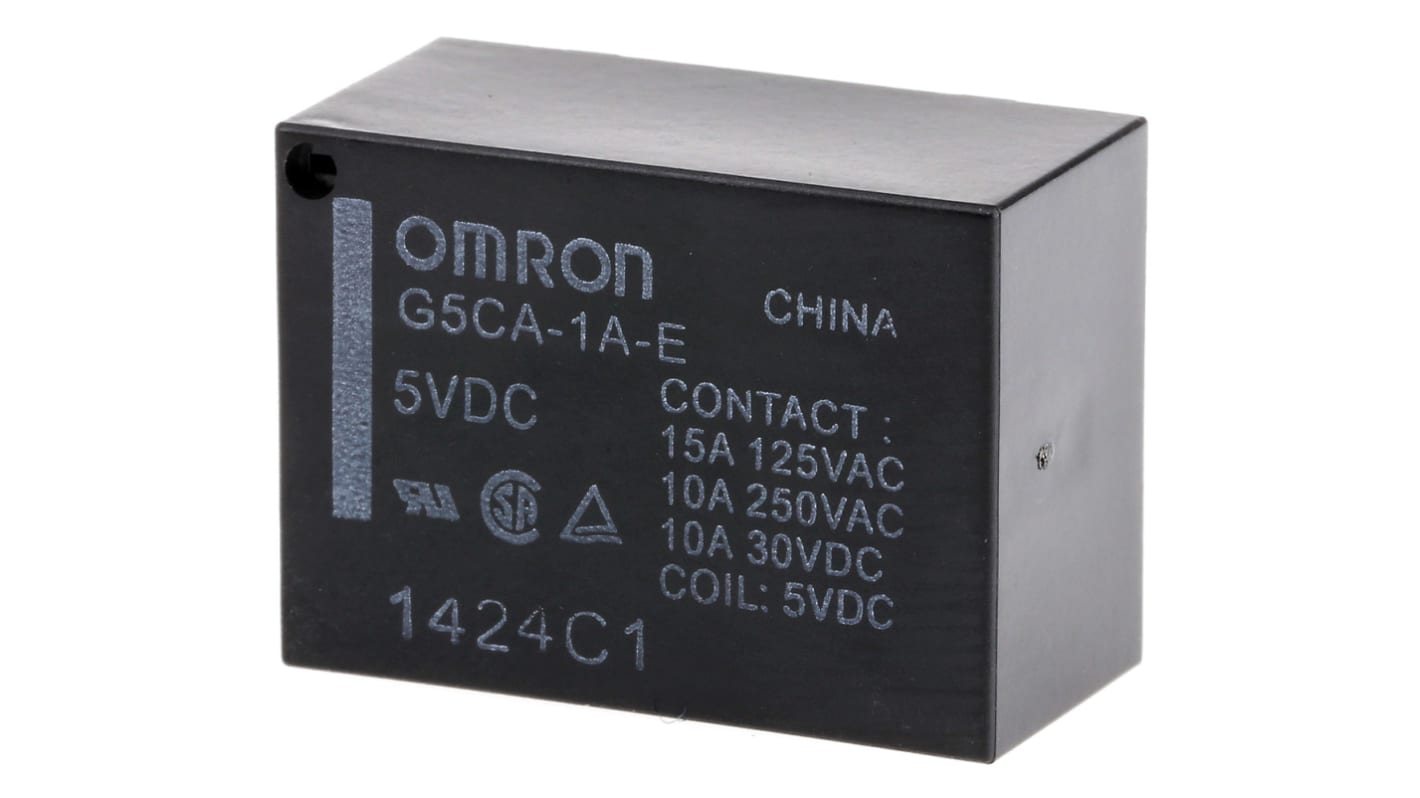

Omron PCB Mount Power Relay, 5V dc Coil, 15A Switching Current, SPST
- RS Stock No.:
- 508-2502
- Mfr. Part No.:
- G5CA-1A-E DC5
- Brand:
- Omron
Subtotal (1 unit)*
£2.31
(exc. VAT)
£2.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 573 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.31 |
*price indicative
- RS Stock No.:
- 508-2502
- Mfr. Part No.:
- G5CA-1A-E DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 15A | |
| Number of Poles | 1 | |
| Series | G5CA | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 22mm | |
| Coil Resistance | 125Ω | |
| Minimum Operating Temperature | -25°C | |
| Depth | 16mm | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver | |
| Height | 11mm | |
| Maximum Switching Power DC | 300 W | |
| Maximum Switching Power AC | 2.5 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 15A | ||
Number of Poles 1 | ||
Series G5CA | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 22mm | ||
Coil Resistance 125Ω | ||
Minimum Operating Temperature -25°C | ||
Depth 16mm | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver | ||
Height 11mm | ||
Maximum Switching Power DC 300 W | ||
Maximum Switching Power AC 2.5 kVA | ||
Application Power | ||
- PCB Power Relay G5CA Flat Relays that Switch 10-A/15-A Loads with New Quick-connect Terminals Data Sheet
- UL Cert Switches, Industrial Control Certified for canada - Component
- UL Cert Switches, Industrial Control Certified for Canada
- UL Cert Switches, Special Use - Component
- UL Cert Switches, Special Use Certified for Canada - Component
- UL Cert Switches, Industrial Control - Component
- UL Cert Switches, Industrial Control
- OMRON UL
- C of C
G5CA Series
Flux proof
Sub-miniature relay, L22xW16 xH11 mm
Ideal for switching power in household appliances or for outputs from industrial devices
Sub-miniature relay, L22xW16 xH11 mm
Ideal for switching power in household appliances or for outputs from industrial devices
Approvals
UL, CSA
