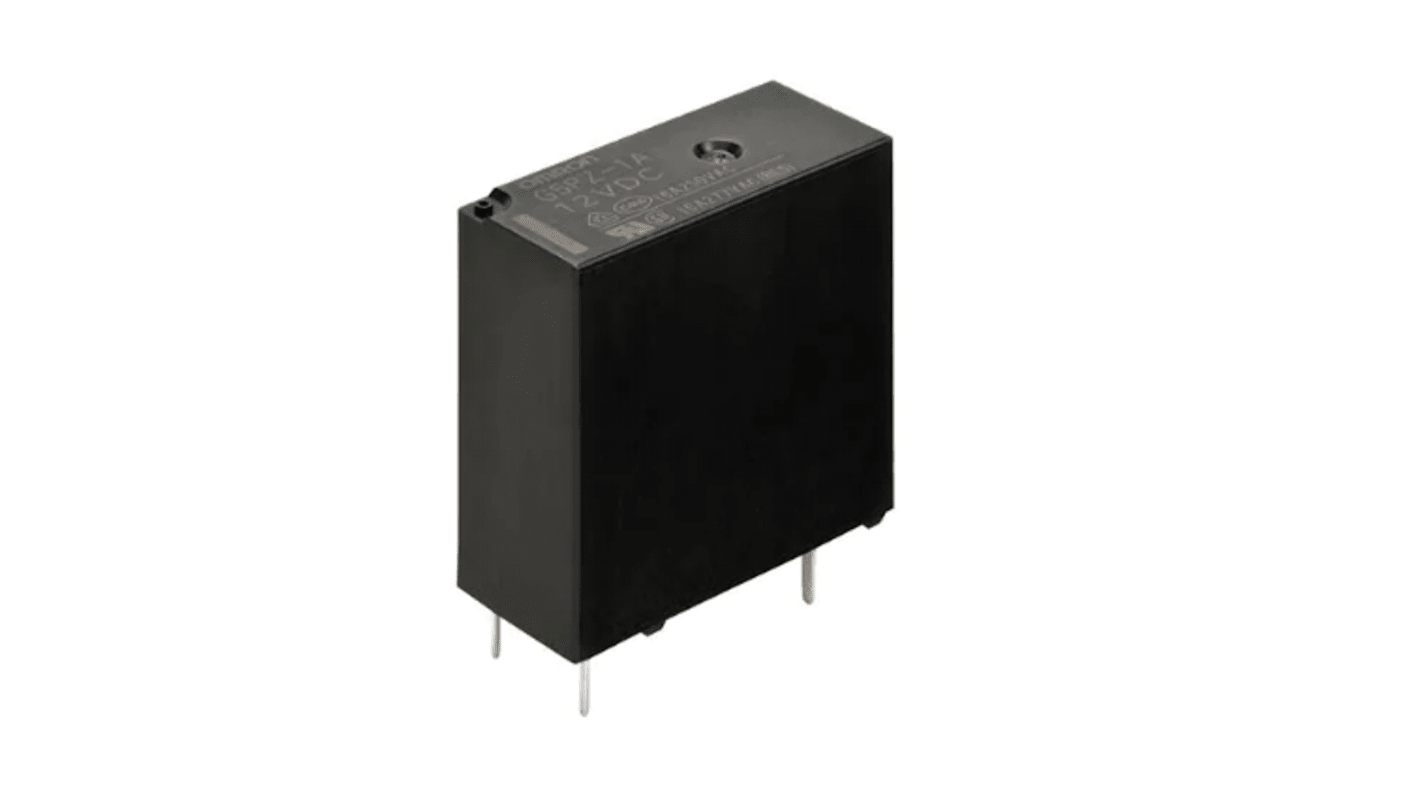

Omron PCB Mount Non-Latching Relay, 5V dc Coil, 20A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 tray of 100 units)*

£237.00

(exc. VAT)

£284.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
100 - 400£2.37£237.00
500 - 900£2.32£232.00
1000 +£2.271£227.10

*price indicative

RS Stock No.:
232-6268
Mfr. Part No.:
G5PZ-1A-E DC5
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

5V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

20A

Number of Poles

1

Series

G5PZ

Coil Resistance

47 Ω

Coil Power

530mW

Isolation Coil To Contact

10kV

Number of Coils

Single

COO (Country of Origin):
CN
The Omron G5PZ series for compact PCB power relay use for home conditioners and appliances. Switching current is 20 A and enclosure rating is flux protection.

10.5 mm (W) slim size and 1 pole 16 A/20 A switching capability
High sensitivity of 530 mW coil consumption and further saving energy with holding voltage 50%
Min. 6.4 mm of insulation distance and 10 kV impulse withstand voltage (between coil and contact
