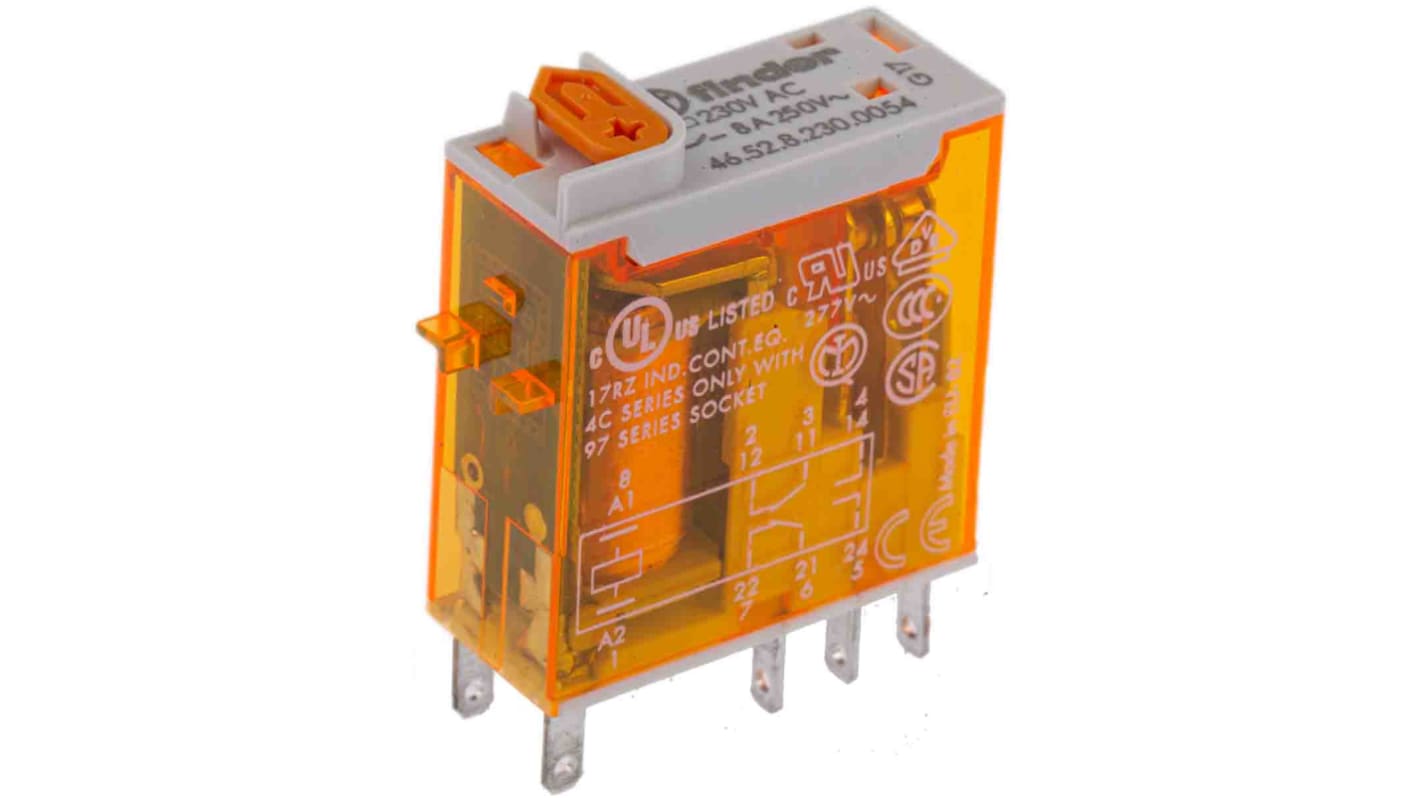

Finder Plug In Power Relay, 230V ac Coil, 8A Switching Current, DPDT

RS Stock No.:: 534-5364
Mfr. Part No.:: 46.52.8.230.0054
Brand:: Finder

Finder Plug In Power Relay, 230V ac Coil, 8A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£16.51

(exc. VAT)

£19.81

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

148 unit(s) ready to ship
Plus 19 unit(s) ready to ship from another location
Plus 14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£16.51
5 - 9	£16.04
10 +	£15.34

*price indicative

RS Stock No.:: 534-5364
Mfr. Part No.:: 46.52.8.230.0054
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	230V ac
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	8A
	Number of Poles	2
	Latching	No
	Series	46 Series
	Terminal Type	PCB Pin
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	15V dc
	Length	29mm
	Coil Resistance	28000Ω
	Coil Power	1.2W
	Minimum Operating Temperature	-40°C
	Isolation Coil To Contact	6kV
	Height	32.8mm
	Contact Material	Silver Alloy
	Maximum Operating Temperature	+70°C
	Life	100000 Cycles
	Depth	12.4mm
	Maximum Switching Power AC	2 kVA
	Dimensions	12.4x32.8x29mm
	Application	General Purpose

	Select all
	Brand Finder
	Coil Voltage 230V ac
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 8A
	Number of Poles 2
	Latching No
	Series 46 Series
	Terminal Type PCB Pin
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 15V dc
	Length 29mm
	Coil Resistance 28000Ω
	Coil Power 1.2W
	Minimum Operating Temperature -40°C
	Isolation Coil To Contact 6kV
	Height 32.8mm
	Contact Material Silver Alloy
	Maximum Operating Temperature +70°C
	Life 100000 Cycles
	Depth 12.4mm
	Maximum Switching Power AC 2 kVA
	Dimensions 12.4x32.8x29mm
	Application General Purpose

COO (Country of Origin):: IT

Finder 46 Series Power Relay, 230V AC, DPDT Contact Configuration - 46.52.8.230.0054

This power relay is a versatile solution designed for industrial applications. It operates at a coil voltage of 230V AC and features double pole double throw (DPDT) contacts, making it ideal for managing high-voltage tasks. With compact dimensions of 12.4mm x 32.8mm x 29mm, it effectively fits into smaller control panels while delivering robust performance.

Features & Benefits

• 8A switching current for reliable performance in various applications
• High voltage isolation of 6kV for enhanced electrical safety
• PCB pin terminal type enables easy mounting on circuit boards
• Cadmium-free contacts for environmentally friendly operation
• Incorporates standards such as CCC and CE for compliance assurance

Applications

• Used in automation for controlling blinds and shutters
• Suitable for lift operations
• Applied in shipyard electrical systems
• Utilised in tunnel and road lighting control
• Ideal for hoists and cranes in industrial settings

What is the environmental impact of the contact material used?

The power relay utilises cadmium-free contacts, which reduces harmful environmental effects compared to traditional materials. This aspect makes it a safer choice for sustainable industrial practices.

How does the high isolation voltage benefit the relay's performance?

The impressive isolation voltage of 6kV minimises risks related to electrical interference and enhances safety by preventing short circuits, making it suitable for sensitive applications.

Can this relay accommodate diverse electrical loads?

Yes, it is designed to handle a wide range of electrical loads, making it versatile for various industrial applications, ensuring optimal performance in demanding environments.

Approvals

UL recognised
