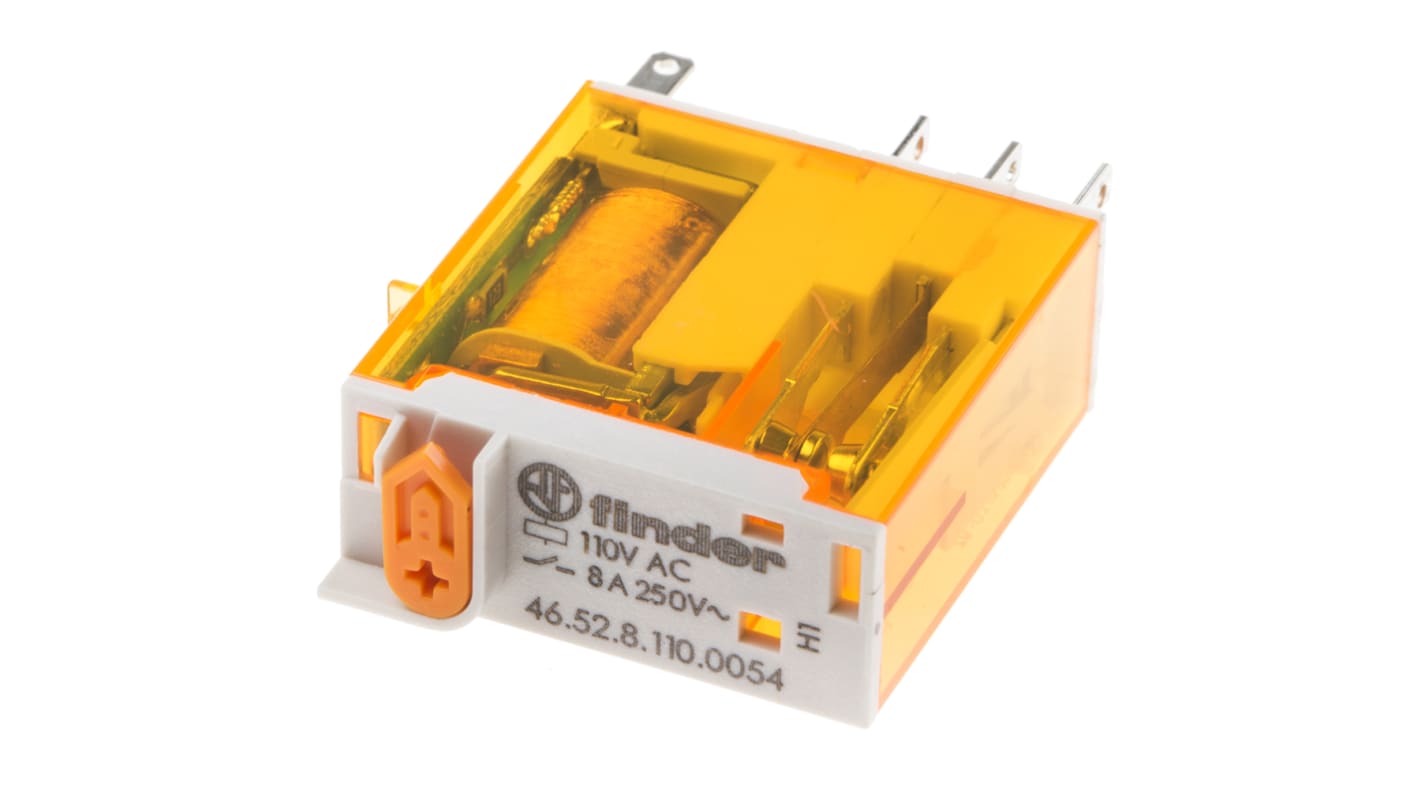

Finder Plug In Power Relay, 110V ac Coil, 8A Switching Current, DPDT

RS Stock No.:: 534-5358
Mfr. Part No.:: 46.52.8.110.0054
Brand:: Finder

Finder Plug In Power Relay, 110V ac Coil, 8A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£13.62

(exc. VAT)

£16.34

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

168 unit(s) ready to ship
Plus 41 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 08 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£13.62
5 - 9	£13.20
10 +	£12.63

*price indicative

RS Stock No.:: 534-5358
Mfr. Part No.:: 46.52.8.110.0054
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	110V ac
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	8A
	Number of Poles	2
	Series	46 Series
	Latching	No
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	15V dc
	Length	29mm
	Coil Resistance	6900Ω
	Coil Power	1.2W
	Contact Material	Silver Alloy
	Height	32.8mm
	Life	100000 Cycles
	Minimum Operating Temperature	-40°C
	Depth	12.4mm
	Maximum Operating Temperature	+70°C
	Isolation Coil To Contact	6kV
	Maximum Switching Power AC	2 kVA
	Dimensions	12.4x32.8x29mm
	Application	General Purpose

	Select all
	Brand Finder
	Coil Voltage 110V ac
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 8A
	Number of Poles 2
	Series 46 Series
	Latching No
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 15V dc
	Length 29mm
	Coil Resistance 6900Ω
	Coil Power 1.2W
	Contact Material Silver Alloy
	Height 32.8mm
	Life 100000 Cycles
	Minimum Operating Temperature -40°C
	Depth 12.4mm
	Maximum Operating Temperature +70°C
	Isolation Coil To Contact 6kV
	Maximum Switching Power AC 2 kVA
	Dimensions 12.4x32.8x29mm
	Application General Purpose

COO (Country of Origin):: IT

Finder 46 Series Power Relay, 110V AC Coil Voltage, 8A Switching Current - 46.52.8.110.0054

This power relay is a high-performance solution, designed specifically for demanding applications in various electrical environments. It offers dual-pole, double-throw (DPDT) configuration with a coil voltage of 110V AC. Compactly designed, it measures 12.4mm in depth, 32.8mm in height, and 29mm in length, making it suitable for tight installations.

Features & Benefits

• Delivers reliable switching up to 8A for varied applications
• High voltage isolation rated at 6 kV for safety
• Quick connect terminals speed up installation and maintenance
• Cadmium-free contacts enhance environmental compliance
• Long operational life of 100,000 cycles ensures durability

Applications

• Integrated into control panels
• Utilised in electrical distribution systems for reliable operation
• Supports lift operations for smooth performance
• Ideal for hoisting mechanisms and crane operations
• Implemented in bottling plants for seamless control

What current can this relay handle during operation?

This device can manage switching currents up to 8 A, which suits various automation tasks.

How does the isolation rating benefit the relay's performance?

The 6 kV isolation between the coil and contact ensures reduced risk of electrical faults, enhancing safety and reliability in high voltage applications.

What types of terminals are included for connections?

This relay features quick connect terminals, allowing for straightforward and efficient wiring without the need for extensive tools.

Can this relay operate under extreme temperatures?

Yes, it is designed to perform efficiently within a temperature range of -40 °C to +70 °C, making it suitable for harsh environments.

Approvals

UL recognised
