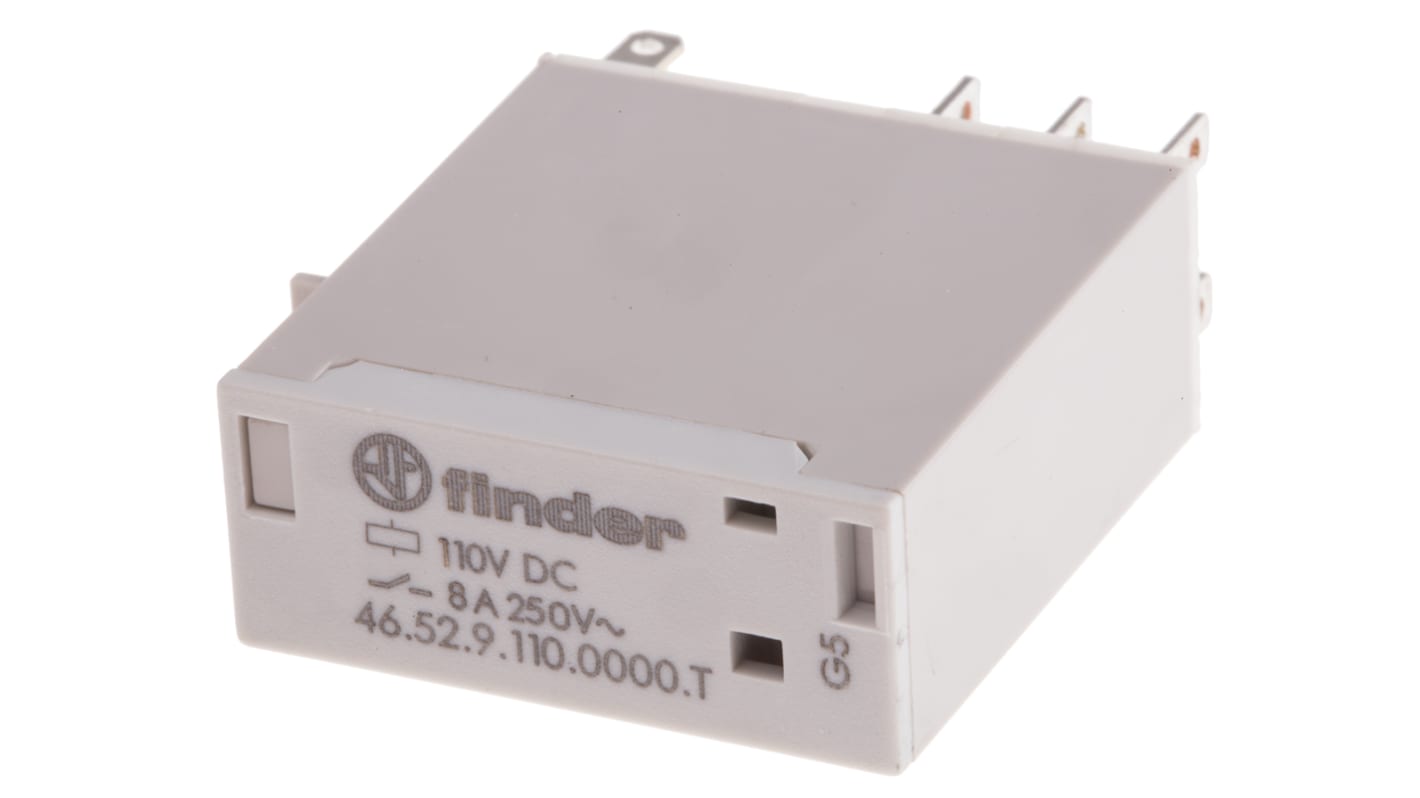

Finder Plug In Power Relay, 110V dc Coil, 8A Switching Current, DPDT

RS Stock No.:: 800-2811
Mfr. Part No.:: 46.52.9.110.0000T
Brand:: Finder

Finder Plug In Power Relay, 110V dc Coil, 8A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£17.13

(exc. VAT)

£20.56

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

37 unit(s) ready to ship
Plus 20 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£17.13
5 - 9	£16.63
10 +	£15.91

*price indicative

RS Stock No.:: 800-2811
Mfr. Part No.:: 46.52.9.110.0000T
Brand:: Finder

46 and 56 Series - Relays for Railway Applications

46 and 56 series plug-in power relays specially designed for railway applications.

8 A, 2 pole
12 A, 2 and 4 pole
DC coils with extended range
Complies with UNI CEI 11170-3 (protection against fire of materials), EN 61373 (resistance against random vibrations and shock, Category 1, Class B), EN 50155 (resistance to temperature and humidity, TX class)
Cadmium free
Different contact material options
Coil EMC suppression modules
Suitable with 97 series sockets and accessories

Finder 46 Series Power Relay, 110V DC Coil Voltage, 8A Switching Current - 46.52.9.110.0000T

This power relay is a miniature industrial component designed for efficient control in various applications, particularly within the automation and railway sectors. With a coil voltage of 110V DC, this relay supports a dual pole, double throw (DPDT) configuration, making it versatile for multiple operating scenarios. Measuring 29mm in length, 12.4mm in depth, and 32.8mm in height, it features quick connect terminals for seamless integration into various systems.

Features & Benefits

• Supports switching current up to 8A for versatile control
• Provides high voltage isolation of 6kV for safety
• Designed for quick connection to reduce installation time
• Offers a maximum switching voltage of 440V AC across contacts
• Able to withstand temperatures from -40°C to +70°C for robust operation
• Features a life expectancy of up to 100,000 electrical cycles

Applications

• Used for automation in blinds and shutters
• Ideal for controlling grilles and lifts in building management
• Employed in road and tunnel lighting systems
• Suitable for hoists and cranes in heavy industries
• Essential in bottling plants and electrical distribution panels

What is the maximum voltage this relay can switch?

It can switch up to 440V AC for effective handling of high voltage connections.

How does the temperature range impact the relay's operation?

Operating between -40°C and +70°C ensures performance in various environmental conditions for increased reliability.

What type of contact material is utilised in this relay?

It uses silver alloy contacts, which provide excellent electrical conductivity and durability.

Can this relay be mounted in different ways?

Yes, it supports plug-in mounting as well as direct connection via Faston connectors for flexibility in installation.

What is the significance of the 100,000 electrical cycles life rating?

This rating indicates a long operational lifespan, ensuring consistent performance without frequent replacements in demanding applications.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	110V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	8A
	Number of Poles	2
	Series	46 Series
	Latching	No
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	440V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current AC	15 A
	Length	29mm
	Coil Resistance	23500Ω
	Coil Power	1.2W
	Isolation Coil To Contact	6kV
	Standards Met	cURus, EAC
	Depth	12.4mm
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Height	32.8mm
	Maximum Operating Temperature	+70°C
	Life	100000 (Electrical) cycles
	Number of Coils	Single
	Maximum Switching Power AC	2 kVA
	Application	Railways

	Select all
	Brand Finder
	Coil Voltage 110V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 8A
	Number of Poles 2
	Series 46 Series
	Latching No
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 440V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current AC 15 A
	Length 29mm
	Coil Resistance 23500Ω
	Coil Power 1.2W
	Isolation Coil To Contact 6kV
	Standards Met cURus, EAC
	Depth 12.4mm
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Height 32.8mm
	Maximum Operating Temperature +70°C
	Life 100000 (Electrical) cycles
	Number of Coils Single
	Maximum Switching Power AC 2 kVA
	Application Railways
