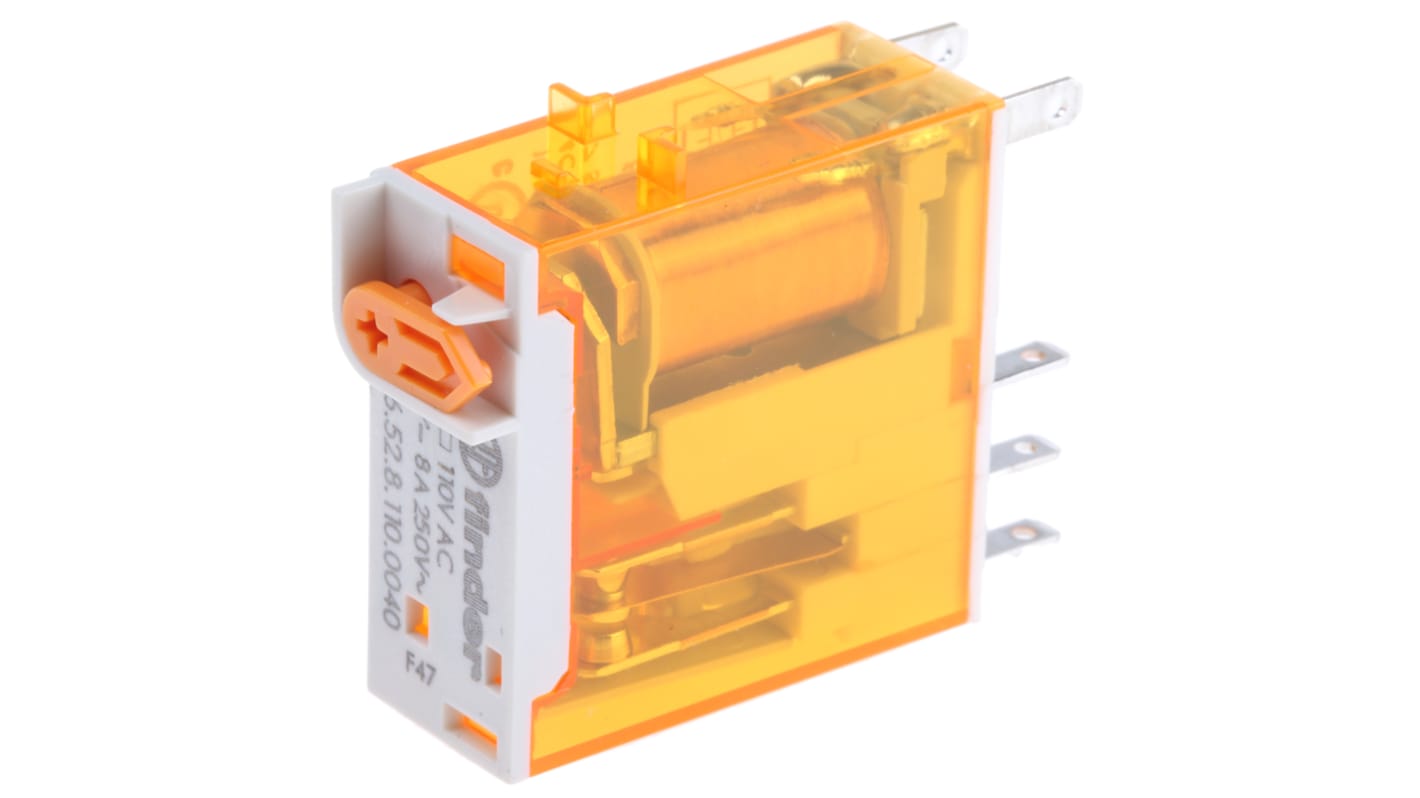

Finder Plug In Power Relay, 110V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 534-5083
- Distrelec Article No.:
- 137-44-392
- Mfr. Part No.:
- 46.52.8.110.0040
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£11.72
(exc. VAT)
£14.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 124 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 292 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £11.72 |
5 - 9 | £11.33 |
10 + | £10.86 |
*price indicative
- RS Stock No.:
- 534-5083
- Distrelec Article No.:
- 137-44-392
- Mfr. Part No.:
- 46.52.8.110.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 110V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Series | 46 Series | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 15V dc | |
Length | 29mm | |
Coil Resistance | 6900Ω | |
Coil Power | 1.2W | |
Height | 32.8mm | |
Depth | 12.4mm | |
Contact Material | Silver Alloy | |
Isolation Coil To Contact | 6kV | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power AC | 2 kVA | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 110V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series 46 Series | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 15V dc | ||
Length 29mm | ||
Coil Resistance 6900Ω | ||
Coil Power 1.2W | ||
Height 32.8mm | ||
Depth 12.4mm | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 6kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power AC 2 kVA | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder 46 series Power Relay, 110V AC Coil Voltage, 8A Switching Current - 46.52.8.110.0040
This power relay is a versatile component designed for various automation applications. Offering a compact design, it measures 29mm in length, 12.4mm in depth, and 32.8mm in height. With a coil voltage of 110V AC and a robust DPDT configuration, this relay is ideal for controlling multiple circuits efficiently.
Features & Benefits
• Quick connect terminal type ensures easy installation and removal
• Maximum operating temperature up to +70°C for enhanced durability
• High isolation of 6 kV between coil and contacts improves safety
• Designed for a life expectancy of 100,000 cycles for reliable performance
• Switching current capability of 8A supports a range of applications
• Latching functionality allows for continuous operation without power
• Maximum operating temperature up to +70°C for enhanced durability
• High isolation of 6 kV between coil and contacts improves safety
• Designed for a life expectancy of 100,000 cycles for reliable performance
• Switching current capability of 8A supports a range of applications
• Latching functionality allows for continuous operation without power
Applications
• Used in general-purpose automation systems
• Suitable for electrical distribution control panels
• Applied in elevating equipment like hoists and cranes
• Functions effectively in tunnel and road lighting systems
• Ideal for implementation in bottling plants
• Suitable for electrical distribution control panels
• Applied in elevating equipment like hoists and cranes
• Functions effectively in tunnel and road lighting systems
• Ideal for implementation in bottling plants
What is the coil power consumption of this device?
The relay operates with a power consumption of 1.2W, making it efficient for energy management in automation tasks.
How does the contact configuration affect its functionality?
The DPDT configuration allows for multiple circuits to be controlled simultaneously, enhancing its functionality in complex systems.
What are the implications of its high isolation rating?
With a 6 kV isolation between the coil and contacts, this relay promotes safety by preventing electrical faults from affecting the control circuitry.
Can the relay withstand extreme temperatures?
Yes, it functions well within a temperature range of -40°C to +70°C, ensuring reliability in diverse environmental conditions.
Approvals
UL recognised
