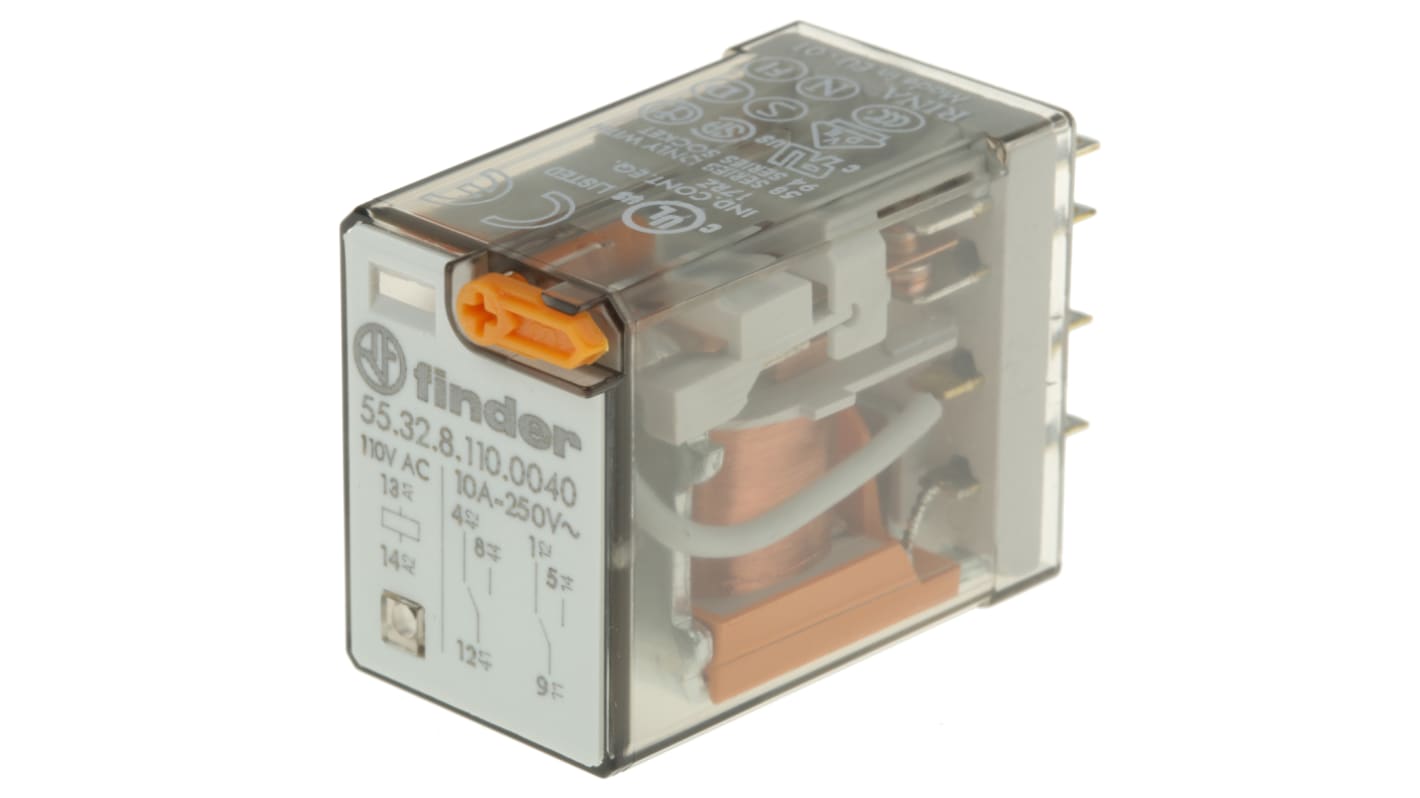

Finder Plug In Power Relay, 110V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 776-1673
- Mfr. Part No.:
- 55.32.8.110.0040
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£12.42
(exc. VAT)
£14.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £12.42 |
5 - 9 | £12.05 |
10 + | £11.56 |
*price indicative
- RS Stock No.:
- 776-1673
- Mfr. Part No.:
- 55.32.8.110.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 110V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 55 Series | |
Latching | No | |
Length | 27.7mm | |
Coil Resistance | 4000Ω | |
Coil Power | 1.5W | |
Height | 37.2mm | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Depth | 20.7mm | |
Maximum Operating Temperature | +85°C | |
Life | 200 x 10³ cycles | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 110V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 55 Series | ||
Latching No | ||
Length 27.7mm | ||
Coil Resistance 4000Ω | ||
Coil Power 1.5W | ||
Height 37.2mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Depth 20.7mm | ||
Maximum Operating Temperature +85°C | ||
Life 200 x 10³ cycles | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder Series 55 Power Relay, 110V AC Coil Voltage, DPDT Contact Configuration - 55.32.8.110.0040
This power relay is suitable for a variety of applications in the electrical and automation sectors. It operates efficiently at a coil voltage of 110V AC and features a dual-pole, dual-throw configuration, making it a valuable component for managing electrical power systems.
Features & Benefits
• Coil power of 1.5W for efficient operation
• Handles a switching current of up to 10A
• Silver alloy contacts for enhanced conductivity
• Mechanical endurance rating of up to 20 million cycles
• Plug-in mounting type ensures easy installation and maintenance
• Handles a switching current of up to 10A
• Silver alloy contacts for enhanced conductivity
• Mechanical endurance rating of up to 20 million cycles
• Plug-in mounting type ensures easy installation and maintenance
Applications
• Automation tasks involving blinds and shutters
• Control panels for industrial equipment
• Electrical system management in shipyards
• Road and tunnel lighting control
• Safety and efficiency in hoists and cranes
• Control panels for industrial equipment
• Electrical system management in shipyards
• Road and tunnel lighting control
• Safety and efficiency in hoists and cranes
What is the relay's coil resistance and how does it affect performance?
The coil resistance is 4000Ω, ensuring appropriate current flow, which is essential for reliable operation without overheating.
Can this relay function in extreme temperatures?
Yes, it operates effectively within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
How is the relay mounted and what type of socket is required?
It features a plug-in mounting type and requires compatible sockets for secure installation, facilitating easy replacement.
What is the expected electrical life of the relay under normal load conditions?
The relay has an electrical life of 200,000 cycles at rated load, indicating a substantial service life under typical usage.
Is this relay suitable for both AC and DC applications?
No, this specific model is designed for AC operation, specifically at 110V, making it appropriate for alternating current systems.
