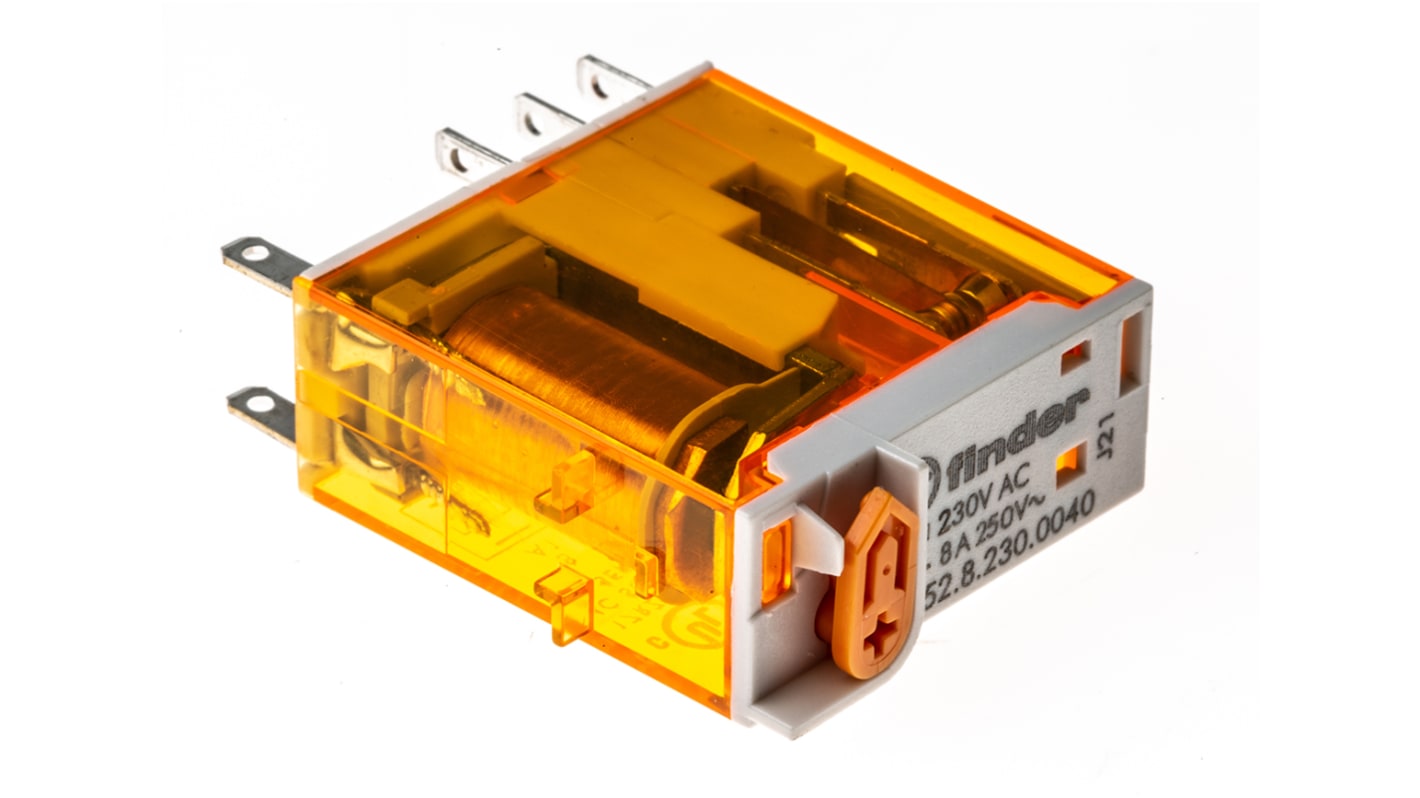

Finder Plug In Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 534-5099
- Distrelec Article No.:
- 137-44-393
- Mfr. Part No.:
- 46.52.8.230.0040
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£14.13
(exc. VAT)
£16.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 319 unit(s) ready to ship
- Plus 111 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.13 |
5 - 9 | £13.70 |
10 + | £13.11 |
*price indicative
- RS Stock No.:
- 534-5099
- Distrelec Article No.:
- 137-44-393
- Mfr. Part No.:
- 46.52.8.230.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Series | 46 Series | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 15V dc | |
Length | 29mm | |
Coil Resistance | 28000Ω | |
Coil Power | 1.2W | |
Depth | 12.4mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Life | 10000000 Cycles | |
Standards Met | CE, EAC | |
Isolation Coil To Contact | 6kV | |
Height | 32.8mm | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 2 kVA | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series 46 Series | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 15V dc | ||
Length 29mm | ||
Coil Resistance 28000Ω | ||
Coil Power 1.2W | ||
Depth 12.4mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Life 10000000 Cycles | ||
Standards Met CE, EAC | ||
Isolation Coil To Contact 6kV | ||
Height 32.8mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2 kVA | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder Series 46 Power Relay, DPDT Contact Configuration, 230V AC Coil Voltage - 46.52.8.230.0040
This power relay is designed for various automation tasks and general purpose applications within electrical and mechanical industries. Its robust design and high voltage isolation capabilities make it a reliable choice for professionals seeking efficient switching solutions in challenging environments. With a coil voltage of 230V AC and a switching current of 8A, it delivers dependable performance in a compact footprint.
Features & Benefits
• DPDT configuration allows versatile wiring options
• Quick connect terminals simplify installation and maintenance
• Silver alloy contacts enhance conductivity and longevity
• High voltage isolation of 6kV protects sensitive components
• Wide temperature range supports diverse operational needs
• Compact size optimises space in control panels
• Quick connect terminals simplify installation and maintenance
• Silver alloy contacts enhance conductivity and longevity
• High voltage isolation of 6kV protects sensitive components
• Wide temperature range supports diverse operational needs
• Compact size optimises space in control panels
Applications
• Ideal for automation of blinds, grilles, and shutters
• Used in road and tunnel lighting control
• Suitable for hoists, cranes, and bottling plants
• Effective for elevator and lift systems
• Applicable in control panels and electrical distribution units
• Used in road and tunnel lighting control
• Suitable for hoists, cranes, and bottling plants
• Effective for elevator and lift systems
• Applicable in control panels and electrical distribution units
How does the relay perform in high-temperature environments?
It operates effectively within a temperature range of -40°C to +70°C, ensuring reliability across various conditions.
What type of load can the relay handle?
It can manage both AC and DC loads, making it versatile for different applications.
How is the relay installed?
Installation can be accomplished using quick connect terminals or by direct mounting, allowing flexible setups depending on user requirements.
Is it compatible with other Finder relays?
Yes, it is designed to work seamlessly with other products in the 46 Series, facilitating integrated systems.
What maintenance is required for optimal performance?
Regular inspection of the contacts and connections can help maintain functionality and prolong service life.
Approvals
UL recognised
