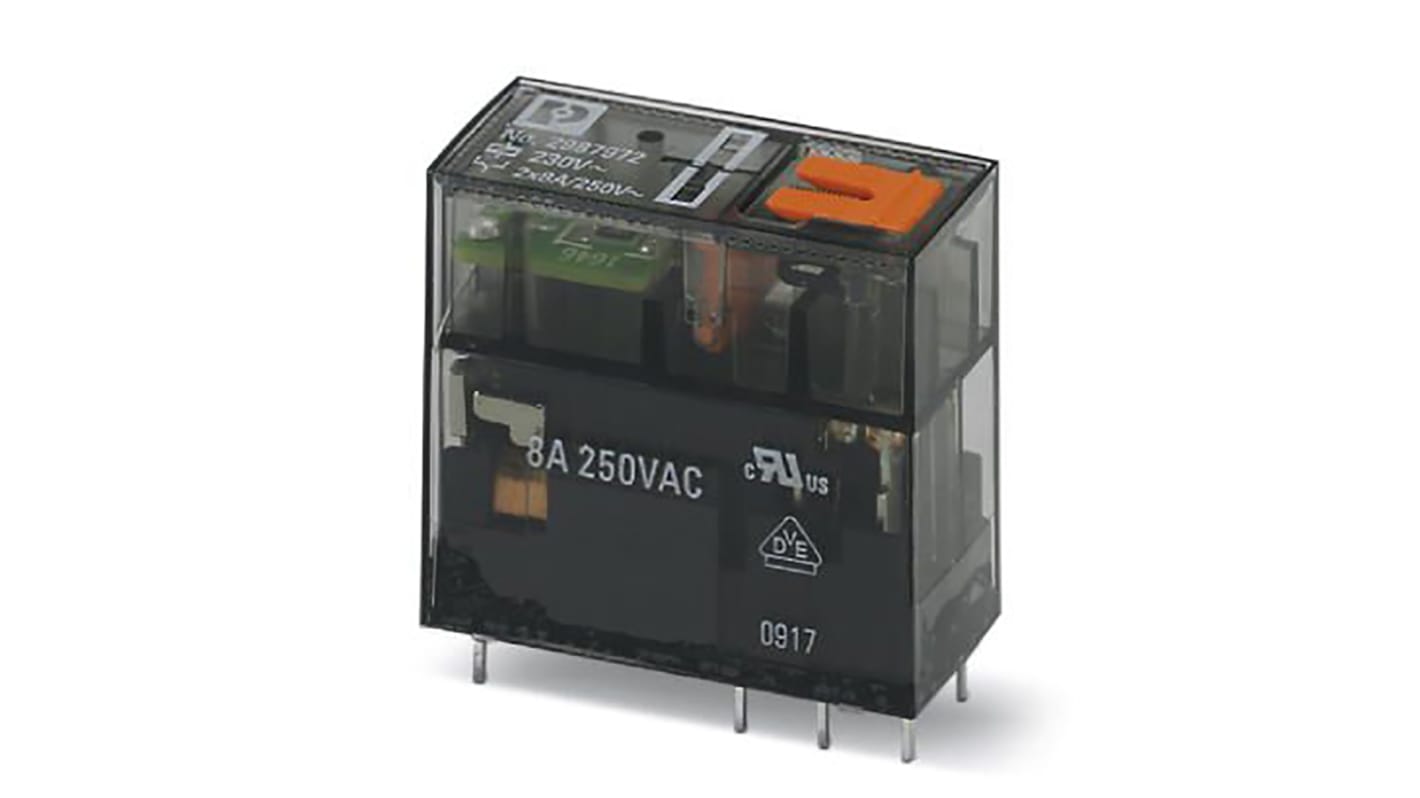

Phoenix Contact PCB Power Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 184-0961
- Mfr. Part No.:
- 2987972
- Brand:
- Phoenix Contact
Subtotal (1 bag of 10 units)*
£69.99
(exc. VAT)
£83.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £69.99 | £6.999 |
*price indicative
- RS Stock No.:
- 184-0961
- Mfr. Part No.:
- 2987972
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | REL-MR | |
| Terminal Type | PCB Pin | |
| Switching Current | 8A | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 29mm | |
| Height | 25mm | |
| Coil Power | 810mW | |
| Width | 12.7mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series REL-MR | ||
Terminal Type PCB Pin | ||
Switching Current 8A | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 29mm | ||
Height 25mm | ||
Coil Power 810mW | ||
Width 12.7mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
Plug-in miniature relay, with power contact, 2 PDTs, test button, mechanical switch position indicator, status LED, coil voltage 230 V AC
