TE Connectivity DIN Rail Power Relay, 24V dc Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 494-0340
- Mfr. Part No.:
- PT2S7LC4 8-1415074-1
- Brand:
- TE Connectivity
Available to back order for despatch 03/06/2024
Added
Price Each
£24.01
(exc. VAT)
£28.81
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £24.01 |
| 5 - 9 | £23.29 |
| 10 + | £22.26 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 494-0340
- Mfr. Part No.:
- PT2S7LC4 8-1415074-1
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

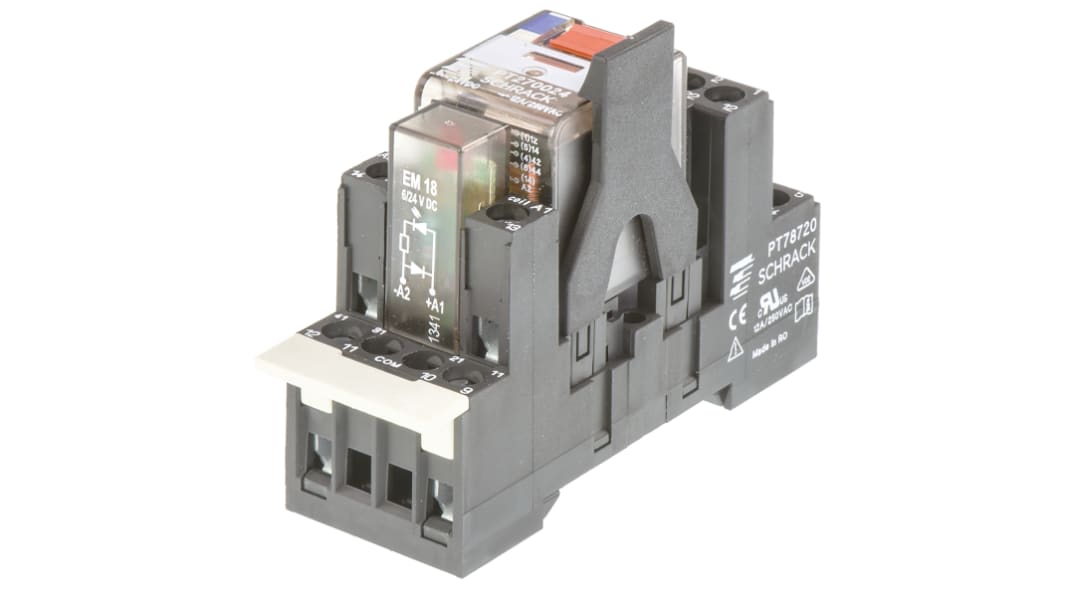

TE Connectivity Non-latching Relay
The TE Connectivity PT series DIN rail mount relay has a contact configuration of DPDT. It is actuated with 24VDC coil voltage and 12A switching current. This relay has a mechanical, electrical indicator and manual test tab.
Features and Benefits
Coil resistance is 777ohm
DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier looping
Terminal type is screw
DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier looping
Terminal type is screw
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC 61810-1
VDE
BS EN 61340-5-1:2007
IEC 61810-1
VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Switching Current | 12A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Screw |
| Length | 73.5mm |
| Coil Resistance | 777Ω |
| Height | 58mm |
| Depth | 27mm |
| Series | PT |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Nickel Alloy |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Power AC | 3 kVA |
