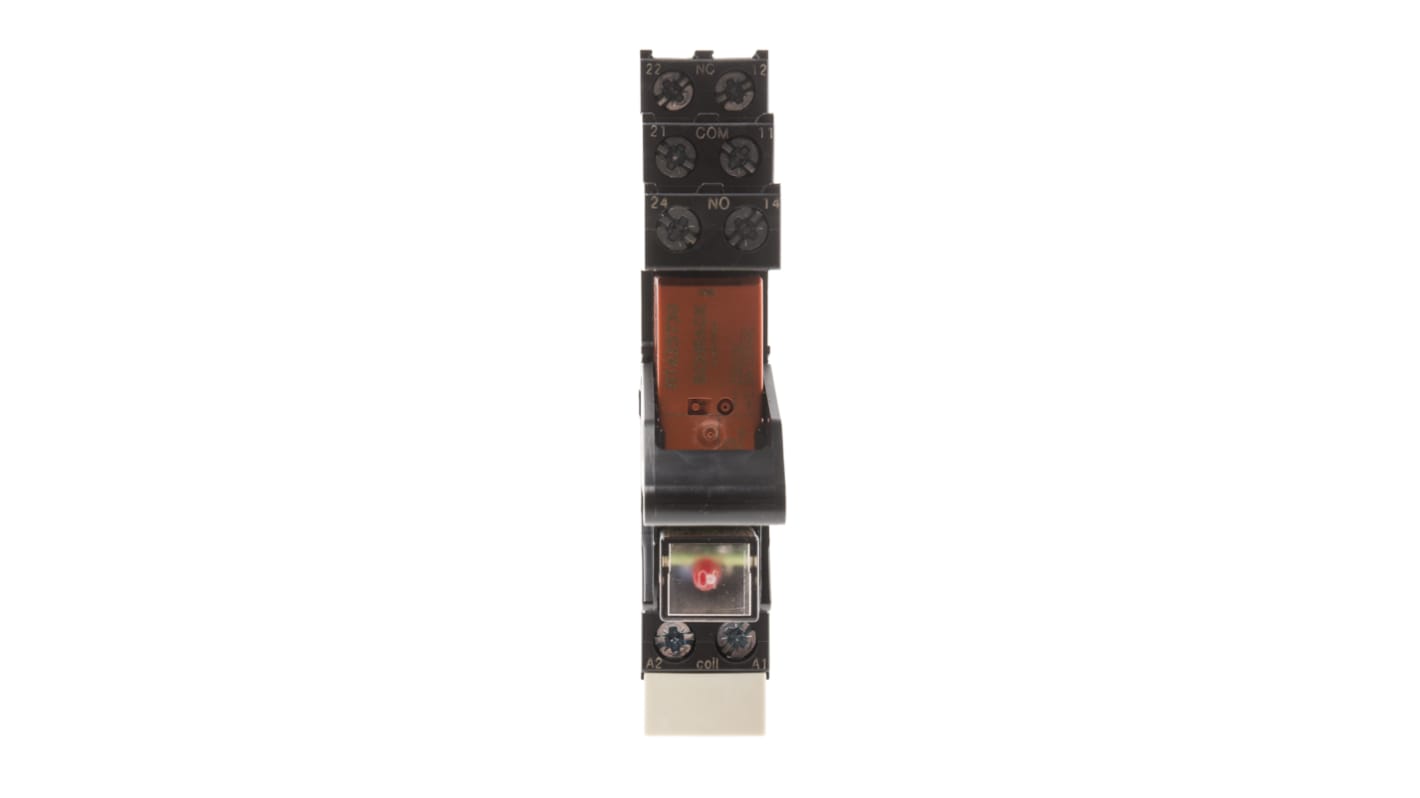

TE Connectivity DIN Rail Power Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 494-0659
- Distrelec Article No.:
- 300-40-086
- Mfr. Part No.:
- RT4S5T30 2-1415074-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£19.92
(exc. VAT)
£23.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 93 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.92 |
| 5 - 9 | £19.32 |
| 10 + | £18.50 |
*price indicative
- RS Stock No.:
- 494-0659
- Distrelec Article No.:
- 300-40-086
- Mfr. Part No.:
- RT4S5T30 2-1415074-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | DIN Rail | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Screw | |
| Maximum Switching Voltage AC | 240V ac | |
| Length | 77mm | |
| Coil Resistance | 32500Ω | |
| Minimum Operating Temperature | -20°C | |
| Depth | 15.8mm | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Gold Plated | |
| Series | RT2 | |
| Height | 69mm | |
| Maximum Switching Power AC | 2 kVA | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type DIN Rail | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 240V ac | ||
Length 77mm | ||
Coil Resistance 32500Ω | ||
Minimum Operating Temperature -20°C | ||
Depth 15.8mm | ||
Maximum Operating Temperature +70°C | ||
Contact Material Gold Plated | ||
Series RT2 | ||
Height 69mm | ||
Maximum Switching Power AC 2 kVA | ||
RT Series Relay Module
Sensitive DC or AC coil
Module width 15.5 mm
DIN rail assembly
Relay module consists of RT relay, DIN rail socket, plastic retention bracket, module and labels
Red LED display
Module width 15.5 mm
DIN rail assembly
Relay module consists of RT relay, DIN rail socket, plastic retention bracket, module and labels
Red LED display
Approvals
VDE, UL
