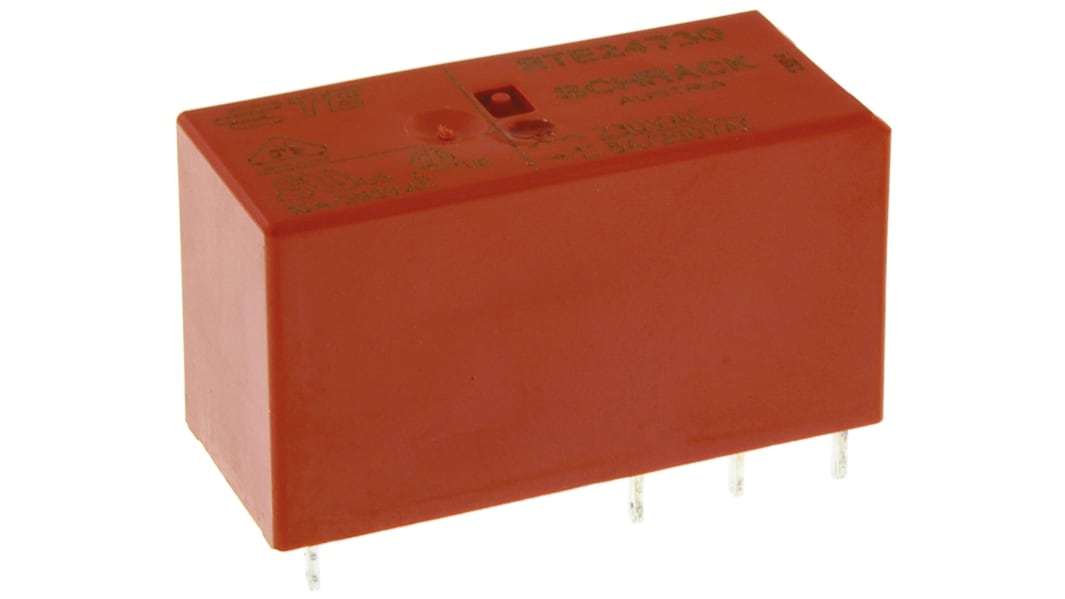

TE Connectivity PCB Mount Non-Latching Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 200-1926
- Distrelec Article No.:
- 301-28-978
- Mfr. Part No.:
- RTE24730
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£8.27
(exc. VAT)
£9.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 301 unit(s) ready to ship
- Plus 47 unit(s) ready to ship from another location
- Plus 2,537 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £8.27 |
10 - 24 | £7.86 |
25 - 49 | £7.45 |
50 - 99 | £7.04 |
100 + | £6.62 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£8.79
(exc. VAT)
£10.55
(inc. VAT)
- RS Stock No.:
- 200-1926
- Distrelec Article No.:
- 301-28-978
- Mfr. Part No.:
- RTE24730
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 230V ac | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Series | RT2 | |
Terminal Type | Through Hole | |
Length | 29mm | |
Coil Resistance | 32.5 kΩ | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Nickel Alloy | |
Depth | 12.7mm | |
Maximum Operating Temperature | +70°C | |
Height | 15.7mm | |
Maximum Switching Power AC | 2 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Series RT2 | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 32.5 kΩ | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Nickel Alloy | ||
Depth 12.7mm | ||
Maximum Operating Temperature +70°C | ||
Height 15.7mm | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
- COO (Country of Origin):
- AT
TE Connectivity RT1 and RT2 Series PCB Power Relays
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages.
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight
Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems
Applications: interface, automation, domestic applications, security lighting, heating systems
Note
Part Number (RT...F) F= Coil insulation system according UL class F
Approvals
UL, CSA, VDE
