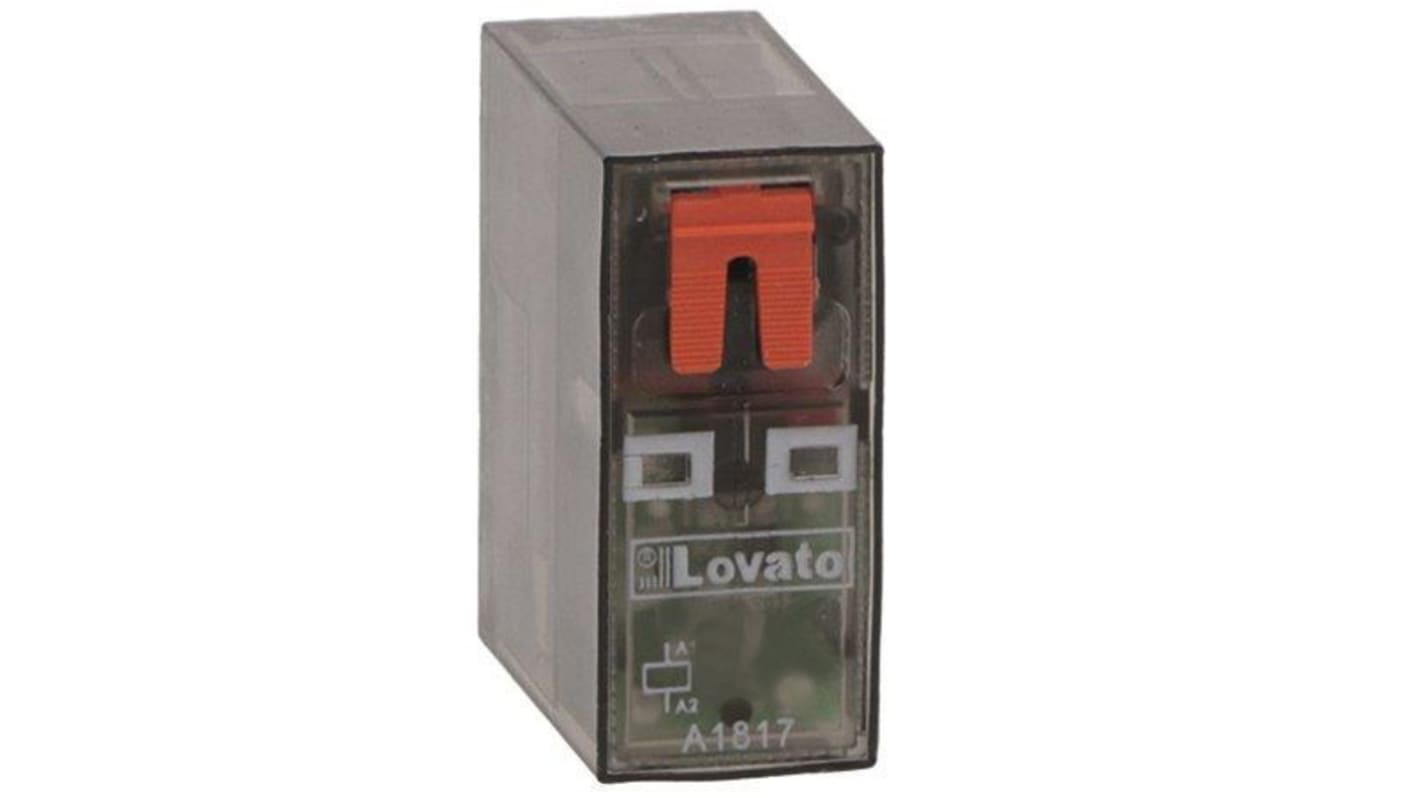

Lovato PCB Non-Latching Relay, 110V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 247-9570
- Mfr. Part No.:
- HR502CA110
- Brand:
- Lovato
Subtotal (1 unit)*
£8.88
(exc. VAT)
£10.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.88 |
*price indicative
- RS Stock No.:
- 247-9570
- Mfr. Part No.:
- HR502CA110
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 110V ac | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | HR502C | |
| Terminal Type | Socket | |
| Switching Current | 8A | |
| Switching AC Voltage | 230V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 2kVA | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC/EN 61810 | |
| Width | 13mm | |
| Length | 29mm | |
| Height | 29.1mm | |
| Coil Power | 1VA | |
| Contact Material | Silver Nickel Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 110V ac | ||
Product Type Non-Latching Relay | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series HR502C | ||
Terminal Type Socket | ||
Switching Current 8A | ||
Switching AC Voltage 230V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 2kVA | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC/EN 61810 | ||
Width 13mm | ||
Length 29mm | ||
Height 29.1mm | ||
Coil Power 1VA | ||
Contact Material Silver Nickel Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Lovato is a Miniature relay with LED state indicator and mechanical actuator also has rated voltage of 110 VAC and, rated current of 8A with contact configuration 2C/O contact.
Maximum cycle frequency cycles/h 10000
Ambient operating temperature from -40 to +70 °C
