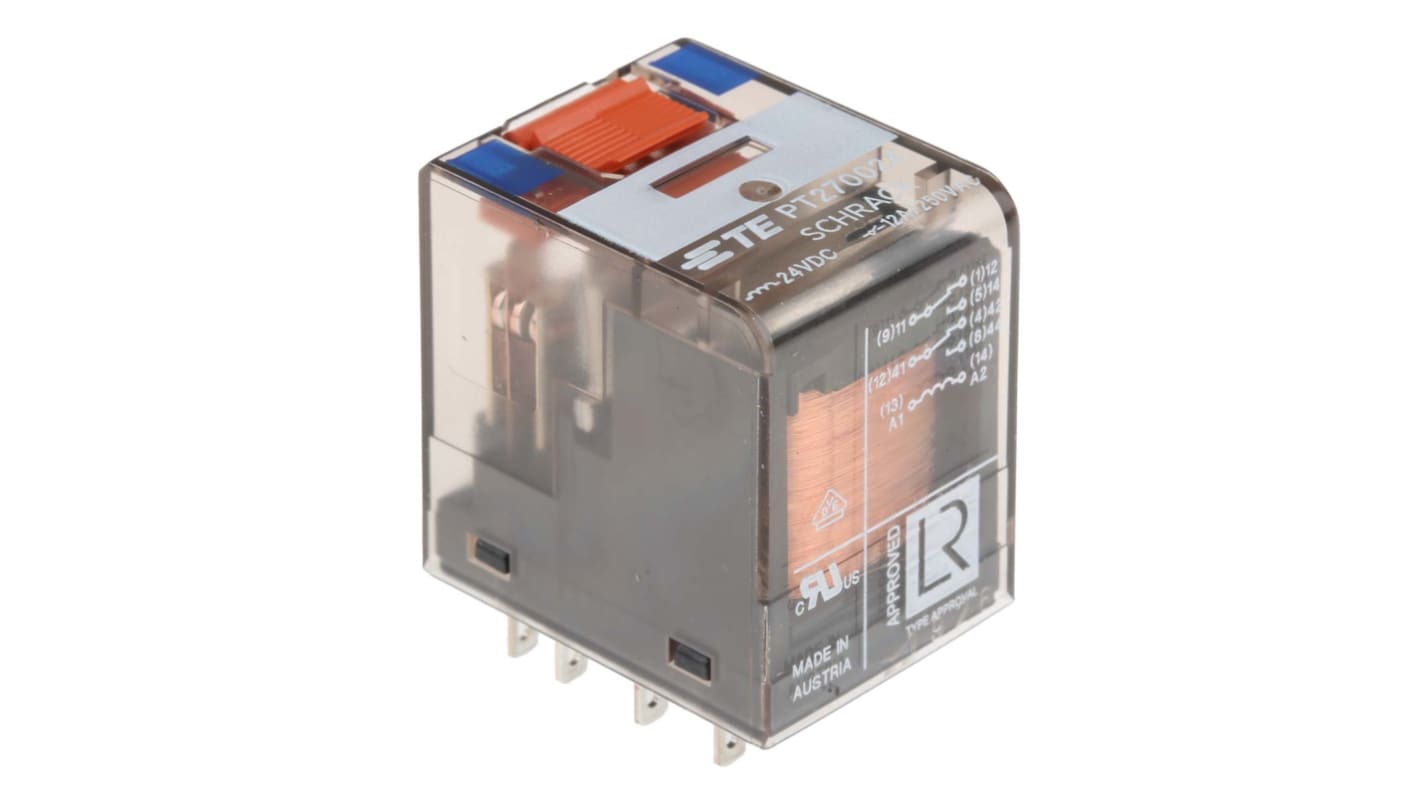

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 333-9929
- Distrelec Article No.:
- 137-21-366
- Mfr. Part No.:
- PT270024 4-1419111-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£8.57
(exc. VAT)
£10.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 267 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.57 |
| 5 - 9 | £8.29 |
| 10 + | £7.99 |
*price indicative
- RS Stock No.:
- 333-9929
- Distrelec Article No.:
- 137-21-366
- Mfr. Part No.:
- PT270024 4-1419111-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 12A | |
| Number of Poles | 2 | |
| Series | PT | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Length | 28mm | |
| Coil Resistance | 777Ω | |
| Depth | 22.5mm | |
| Height | 35mm | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Nickel Alloy | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 3 kVA | |
| Application | Compact | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 12A | ||
Number of Poles 2 | ||
Series PT | ||
Latching No | ||
Terminal Type Quick Connect | ||
Length 28mm | ||
Coil Resistance 777Ω | ||
Depth 22.5mm | ||
Height 35mm | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Nickel Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 3 kVA | ||
Application Compact | ||
- COO (Country of Origin):
- AT
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
Approvals
VDE; UL; CSA
