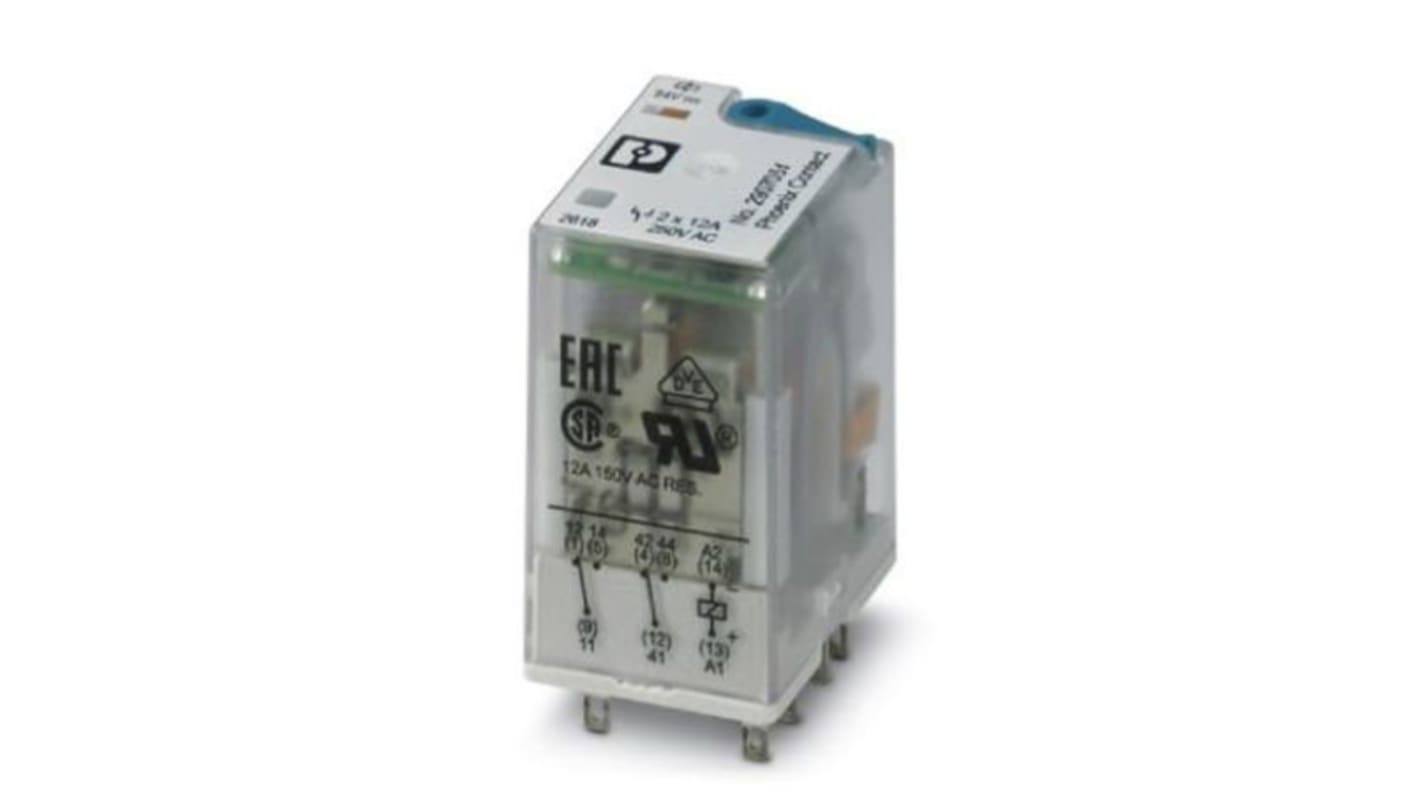

Phoenix Contact PCB Power Relay, 24V dc Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 204-7759
- Mfr. Part No.:
- 2907051
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£49.39
(exc. VAT)
£59.27
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £4.939 | £49.39 |
*price indicative
- RS Stock No.:
- 204-7759
- Mfr. Part No.:
- 2907051
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | REL-IR2 | |
| Terminal Type | Plug-In | |
| Switching Current | 12A | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 27.5mm | |
| Length | 35.6mm | |
| Coil Power | 910mW | |
| Standards/Approvals | IEC 60664, IEC 61810 | |
| Width | 21.2mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series REL-IR2 | ||
Terminal Type Plug-In | ||
Switching Current 12A | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Height 27.5mm | ||
Length 35.6mm | ||
Coil Power 910mW | ||
Standards/Approvals IEC 60664, IEC 61810 | ||
Width 21.2mm | ||
Contact Material Silver Alloy | ||
The Phoenix non-latching relays are commonly found within industrial environments, they are considered to be electrical and mechanical devices. This type of relay can often be referred to an electromechanical relay or an industrial switch. It is pluggable industrial relay with power contact for high continuous current and its coil voltage is 24 V dc.
Ambient temperature is -40 °C to 70 °C
Degree of protection RT I
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
