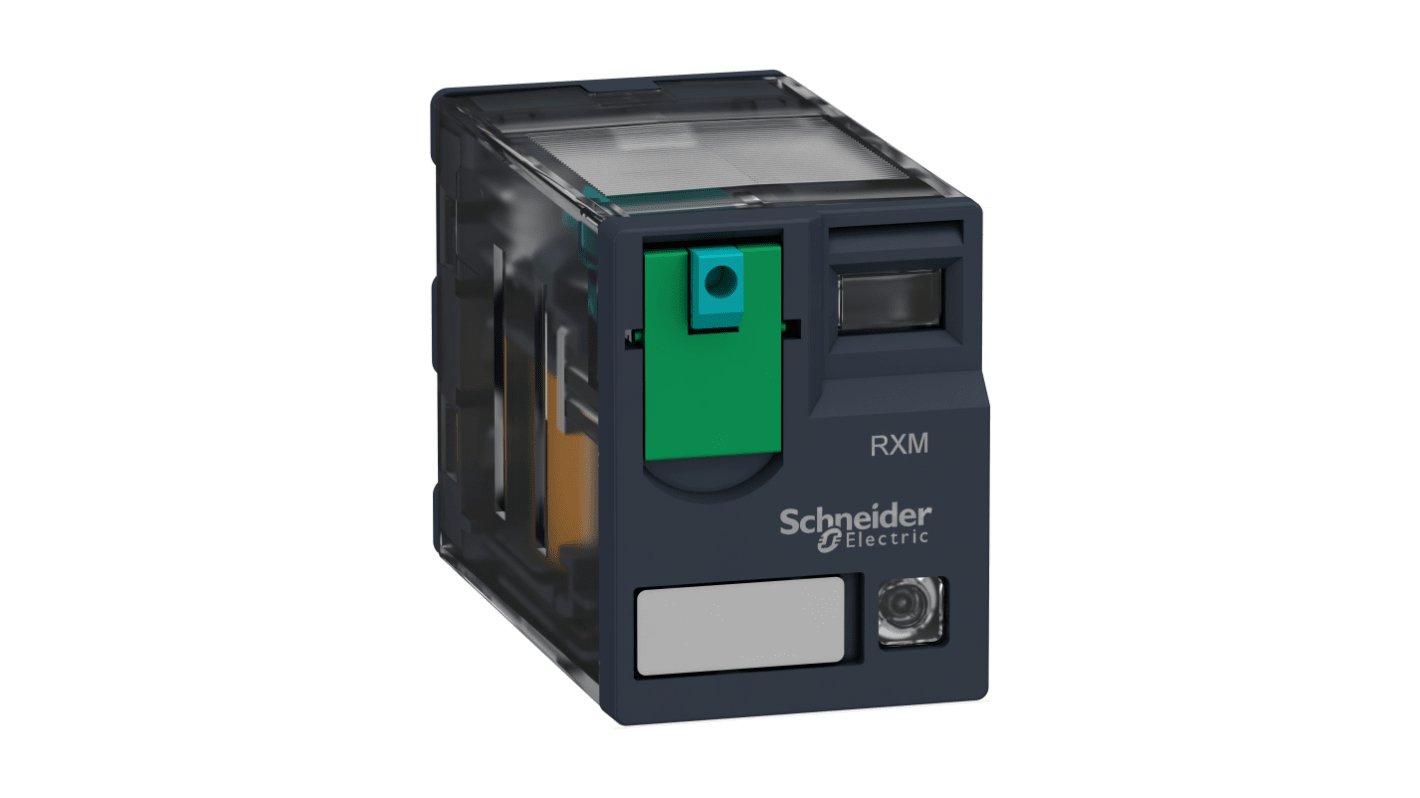

Schneider Electric Power Relay, 24V dc Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 884-1278
- Distrelec Article No.:
- 301-12-612
- Mfr. Part No.:
- RXM2AB2BD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£8.21
(exc. VAT)
£9.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 265 unit(s) ready to ship
- Plus 224 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 15 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.21 |
*price indicative
- RS Stock No.:
- 884-1278
- Distrelec Article No.:
- 301-12-612
- Mfr. Part No.:
- RXM2AB2BD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Series | Harmony Relay RXM | |
| Terminal Type | Plug-In | |
| Switching Current | 12A | |
| Switching Power | 3kVA | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 650Ω | |
| Maximum Operating Temperature | 55°C | |
| Length | 21mm | |
| Coil Power | 900mW | |
| Width | 47.7mm | |
| Standards/Approvals | CE, CSA | |
| Height | 27mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Series Harmony Relay RXM | ||
Terminal Type Plug-In | ||
Switching Current 12A | ||
Switching Power 3kVA | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 650Ω | ||
Maximum Operating Temperature 55°C | ||
Length 21mm | ||
Coil Power 900mW | ||
Width 47.7mm | ||
Standards/Approvals CE, CSA | ||
Height 27mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
Schneider Electric Harmony Relay RXM Series Power Relay, 24V DC Coil Voltage, 12A Switching Current - RXM2AB2BD
This power relay is a miniature plug-in device designed for use in industrial applications, featuring a dual-pole, double-throw (DPDT) configuration. It operates on a 24V DC control circuit and boasts efficient performance with dimensions of 21 x 27 x 47.7mm. Engineered for reliability, this relay provides robust switching capabilities with a maximum load of 12A and a considerable operational life of 100,000 cycles.
Features & Benefits
• Reliable switching with a maximum capacity of 3 kVA
• Latching mechanism and lockable test button for easy operation
• Integrated LED status indicator for instant visual feedback
• Wide temperature range from -40 °C to +55 °C for versatile environments
• Low power consumption at only 0.9W during operation
• Durable AgNi contact material ensures long-lasting performance
Applications
• Used in automation equipment for reliable control
• Utilised in electrical panels for efficient switching
• Suitable for mechanical systems requiring high current management
• Applied in various types of industrial machinery for operational safety
What is the maximum switching voltage for operations?
The maximum switching voltage is 250V for both AC and DC applications, ensuring compatibility with a variety of systems.
How does the relay maintain performance in extreme temperature conditions?
It is designed to operate efficiently within a temperature range of -40 °C to +55 °C, allowing it to function in harsh environments without loss of performance.
What is the average coil resistance, and why is it important?
The average coil resistance is 650 Ω, which optimally balances energy consumption during operation while maintaining effective relay engagement.
What are the implications of the relay's mechanical durability rating?
The relay's mechanical durability of 10 million cycles indicates its robust design, making it suitable for applications requiring frequent switching.
How does the integrated LED contribute to user experience?
The LED indicator provides immediate visual confirmation of the relay’s operational status, improving monitoring and troubleshooting efficiency in systems.
