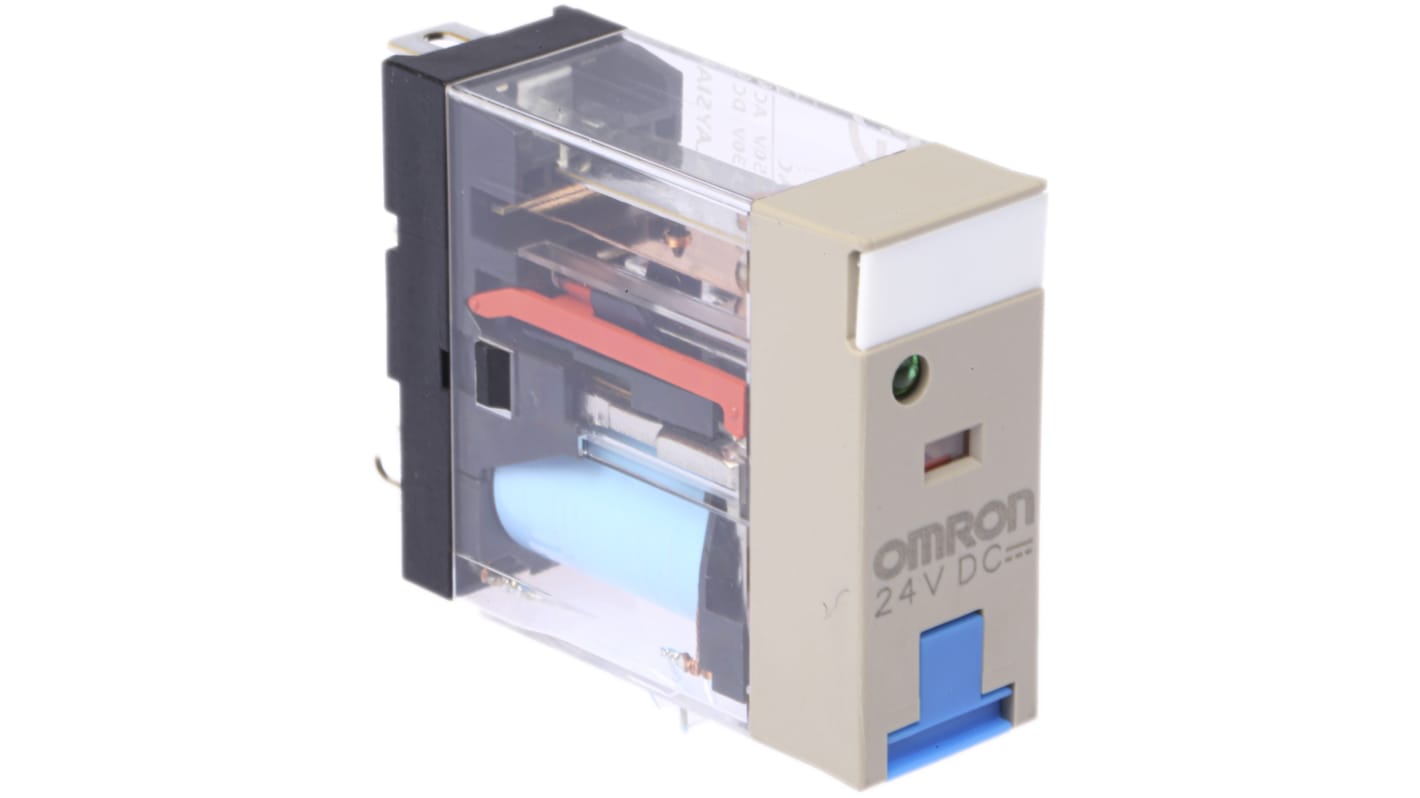

Omron Plug In Latching Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 329-7178
Mfr. Part No.:: G2R-1-SNI DC24(S)
Brand:: Omron

Omron Plug In Latching Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPDT

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron Plug In Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.: 266-2969

Each

£10.51

(exc. VAT)

£12.61

(inc. VAT)

RS Stock No.:: 329-7178
Mfr. Part No.:: G2R-1-SNI DC24(S)
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	SPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	1
	Latching	Yes
	Series	G2R
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	380V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current AC	10 A
	Maximum Switching Current DC	10 A
	Length	29mm
	Coil Resistance	1.1 kΩ
	Coil Power	530mW
	Depth	13mm
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Height	29mm
	Standards Met	CE, CSA
	Contact Material	Silver Alloy
	Life	1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
	Isolation Coil To Contact	5kV ac
	Maximum Switching Power DC	300 W
	Maximum Switching Power AC	2.5 kVA
	Application	Power
	Dimensions	29 x 13 x 41.5mm

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration SPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 1
	Latching Yes
	Series G2R
	Terminal Type Through Hole
	Maximum Switching Voltage AC 380V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current AC 10 A
	Maximum Switching Current DC 10 A
	Length 29mm
	Coil Resistance 1.1 kΩ
	Coil Power 530mW
	Depth 13mm
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Height 29mm
	Standards Met CE, CSA
	Contact Material Silver Alloy
	Life 1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
	Isolation Coil To Contact 5kV ac
	Maximum Switching Power DC 300 W
	Maximum Switching Power AC 2.5 kVA
	Application Power
	Dimensions 29 x 13 x 41.5mm

COO (Country of Origin):: MY

G2RS Series with Test Button

Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Note

Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.

Approvals

UL, CSA, VDE

OMRON Non-Latching Relay, With Test Button, 21.6mA Input Current Rating - G2R Series - G2R-1-SNI DC24(S)

Switch your hardware's power connection in a flash with this non-latching relay from OMRON. By using highly conductive silver alloy contacts, it efficiently carries energy to support smooth machine running. There's no need to worry about complex wiring as the device slots into a socket (111-3066) to cut down on prep work. As it switches up to 1800 times an hour, this is a smart choice for demanding control tasks. Thanks to a lockable test button, checking the relay's in working order is no trouble. Devices like this one commonly help manage uninterruptible power supplies and telecommunications equipment.

Features & Benefits

• Mechanical status LED indicator clearly signals the switch position for simple inspection
• Electrical lifespan of over 1 million cycles to provide long-lasting circuit control
• Response time of 15ms makes for quick switching
• Works with current up to 10A for versatility

Applications

• Engineering workshops
• Material handling
• Metalworking

What's the difference between latching and non-latching relays?

A latching relay stays in position if its power supply stops, helping it easily run continuous processes. A non-latching relay such as this one opens when it loses power, so it's a reliable pick for temporary circuit control like in lighting systems.
