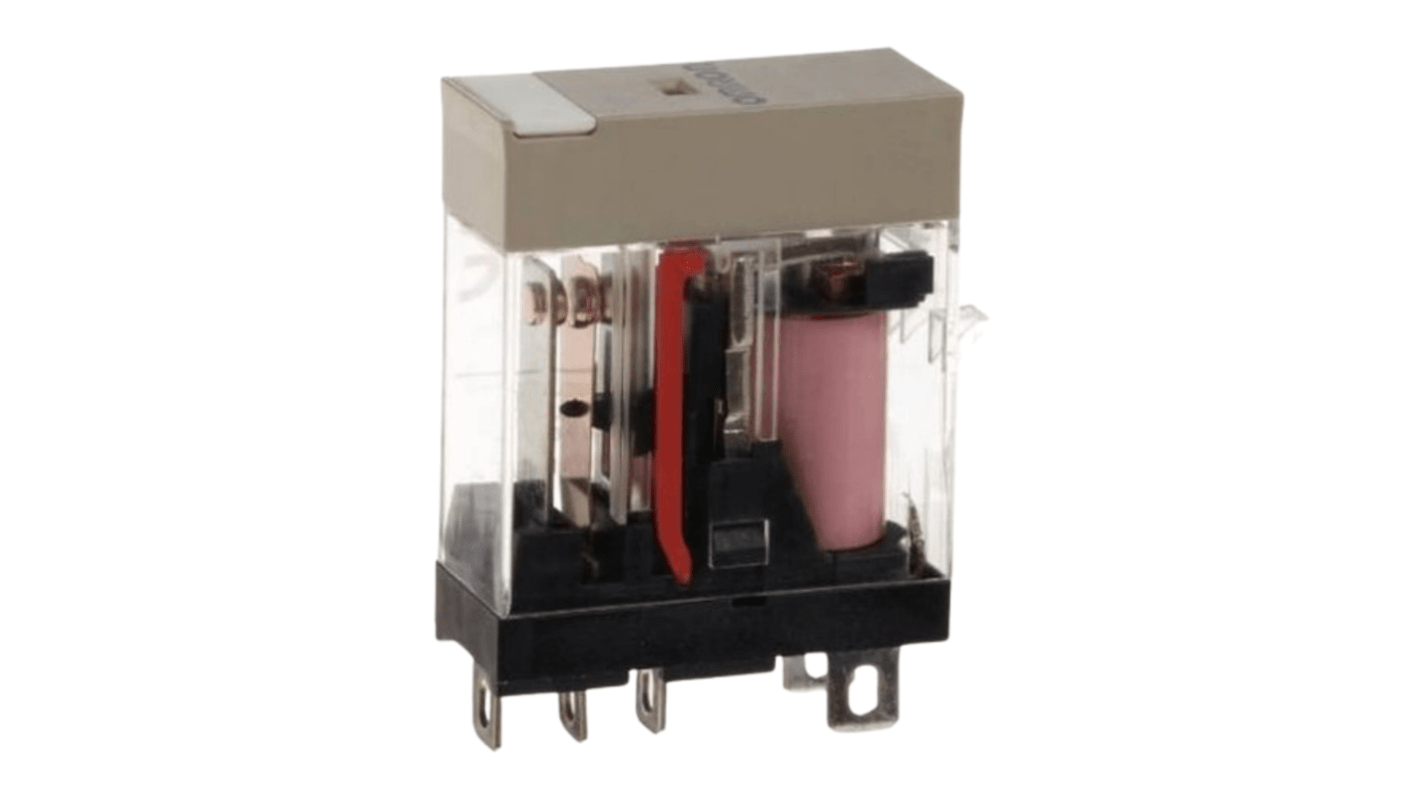

Omron PCB Non-Latching Relay, 240V ac Coil, 10A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£11.92

(exc. VAT)

£14.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
  • Plus 18 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£11.92

*price indicative

RS Stock No.:
214-7941
Distrelec Article No.:
301-37-196
Mfr. Part No.:
G2R-1-SNI 240VAC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

240V ac

Product Type

Non-Latching Relay

Contact Configuration

SPDT

Mount Type

PCB

Series

G2R-S

Terminal Type

Plug-In

Switching Current

10A

Minimum Operating Temperature

-40°C

Switching AC Voltage

380V ac

Switching DC Voltage

125V dc

Switching Power

150W

Coil Resistance

30.4kΩ

Maximum Operating Temperature

70°C

Length

29mm

Standards/Approvals

RoHS

Width

13mm

Height

35.5mm

Coil Power

0.9VA

Contact Material

Silver Alloy

Contact Resistance

30mΩ

Omron G2R-S Series Non-Latching Relay, 240V AC Coil Voltage, 10A Switching Current - G2R-1-SNI AC240(S)


This non-latching relay is a versatile component in automation and control systems. As a PCB mount relay, it features a single pole double throw (SPDT) configuration that can handle a coil voltage of 240V AC. The compact design allows for easy integration into various applications, making it an essential choice for professionals in the electrical and mechanical industries.

Features & Benefits


• Built-in mechanical operation indicator for easy monitoring

• Plug-in terminal type simplifies installation processes

• Integrated self-diagnostic function enhances reliability

• Space-saving design reduces wiring work by 60%

Applications


• Utilised in industrial automation systems for secure control

• Ideal for use in lighting and HVAC systems

• Suited for various electrical equipment requiring efficient switching

• Can be implemented in control panels and machinery interfaces

What are the performance characteristics of this relay?


This relay can switch up to 10A at 250V AC and 30V DC, making it suitable for both resistive and inductive loads. It has a maximum switching voltage of 440V AC, ensuring compatibility with high voltage applications.

How does the built-in self-diagnostic function work?


The relay features an AC type coil with an LED indicator that signals coil disconnection and operational status, allowing for quick identification of issues without dismantling the installation.

What environmental conditions can this relay operate under?


It operates efficiently in temperatures ranging from -40°C to +70°C, ensuring reliability even in challenging conditions while maintaining a humidity range of 5% to 85%.
