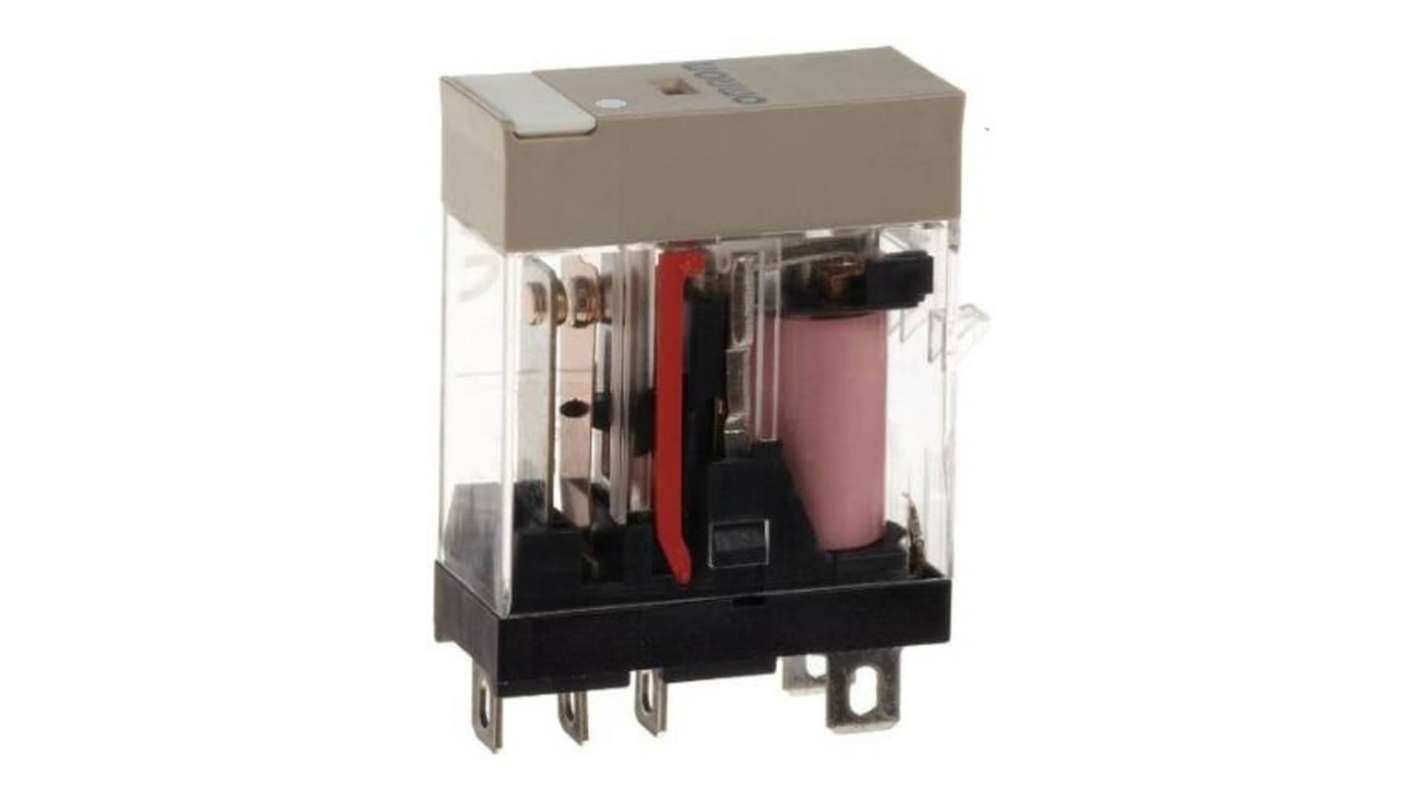

Omron Plug In Relay, 240V ac Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 215-7845
- Distrelec Article No.:
- 301-37-188
- Mfr. Part No.:
- G2R-1-SN 240VAC (S)
- Brand:
- Omron
Subtotal (1 unit)*
£13.74
(exc. VAT)
£16.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 83 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £13.74 |
*price indicative
- RS Stock No.:
- 215-7845
- Distrelec Article No.:
- 301-37-188
- Mfr. Part No.:
- G2R-1-SN 240VAC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 240V ac | |
Contact Configuration | SPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 1 | |
Series | G2R-1 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 440V | |
Maximum Switching Voltage DC | 125V | |
Coil Resistance | 27800 Ω | |
Coil Power | 900mW | |
Standards Met | UL, VDE | |
Height | 29mm | |
Contact Material | Silver Alloy | |
Depth | 35.5mm | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Width | 13mm | |
Dimensions | 35.5 x 13 x 29mm | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 240V ac | ||
Contact Configuration SPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Series G2R-1 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V | ||
Maximum Switching Voltage DC 125V | ||
Coil Resistance 27800 Ω | ||
Coil Power 900mW | ||
Standards Met UL, VDE | ||
Height 29mm | ||
Contact Material Silver Alloy | ||
Depth 35.5mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Width 13mm | ||
Dimensions 35.5 x 13 x 29mm | ||
Omron G2R-1 Series Relay, 240V Coil Voltage, 10A Switching Current - G2R-1-SN AC240(S)
This relay is a robust and versatile component, designed for various industrial applications. The Omron G2R-1 model operates at a coil voltage of 240V AC and features a single pole double throw (SPDT) configuration. Measuring 35.5 x 13 x 29mm, it is compact and suitable for plug-in mounting, making it an ideal choice for space-constrained environments.
Features & Benefits
• Operates efficiently at a maximum switching voltage of 440V AC
• Supports a 10A switching current for reliable performance
• Excellent coil resistance of 27,800 ohm for energy efficiency
• Designed to function in extreme temperatures from -40°C to +70°C
• Compliant with UL 508 and VDE standards ensuring safety and quality
• Constructed with AgSnIn contact material for durability and reliability
• Supports a 10A switching current for reliable performance
• Excellent coil resistance of 27,800 ohm for energy efficiency
• Designed to function in extreme temperatures from -40°C to +70°C
• Compliant with UL 508 and VDE standards ensuring safety and quality
• Constructed with AgSnIn contact material for durability and reliability
Applications
• Used in automation control systems
• Ideal for switching in electrical panels
• Suitable for industrial machinery controls and circuits
• Employed in electrical signal switching tasks
• Commonly integrated into relay-based systems
• Ideal for switching in electrical panels
• Suitable for industrial machinery controls and circuits
• Employed in electrical signal switching tasks
• Commonly integrated into relay-based systems
How does the compact size of this relay benefit installation?
The compact dimensions facilitate installation in tight spaces, reducing the overall project footprint while maintaining functionality. This makes it suitable for use within densely packed control panels and machinery housings.
What is the significance of the coil resistance rating?
A coil resistance of 27,800 ohm contributes to lower energy consumption, making it efficient during operation. This helps in extending relay life and reducing operational costs during long-term use.
What safety standards does this relay meet and why is it important?
This relay meets UL 508 and VDE standards, crucial for ensuring safe operation in industrial environments. Compliance with these standards minimises risk and guarantees the reliability of the relay in electrical applications.
