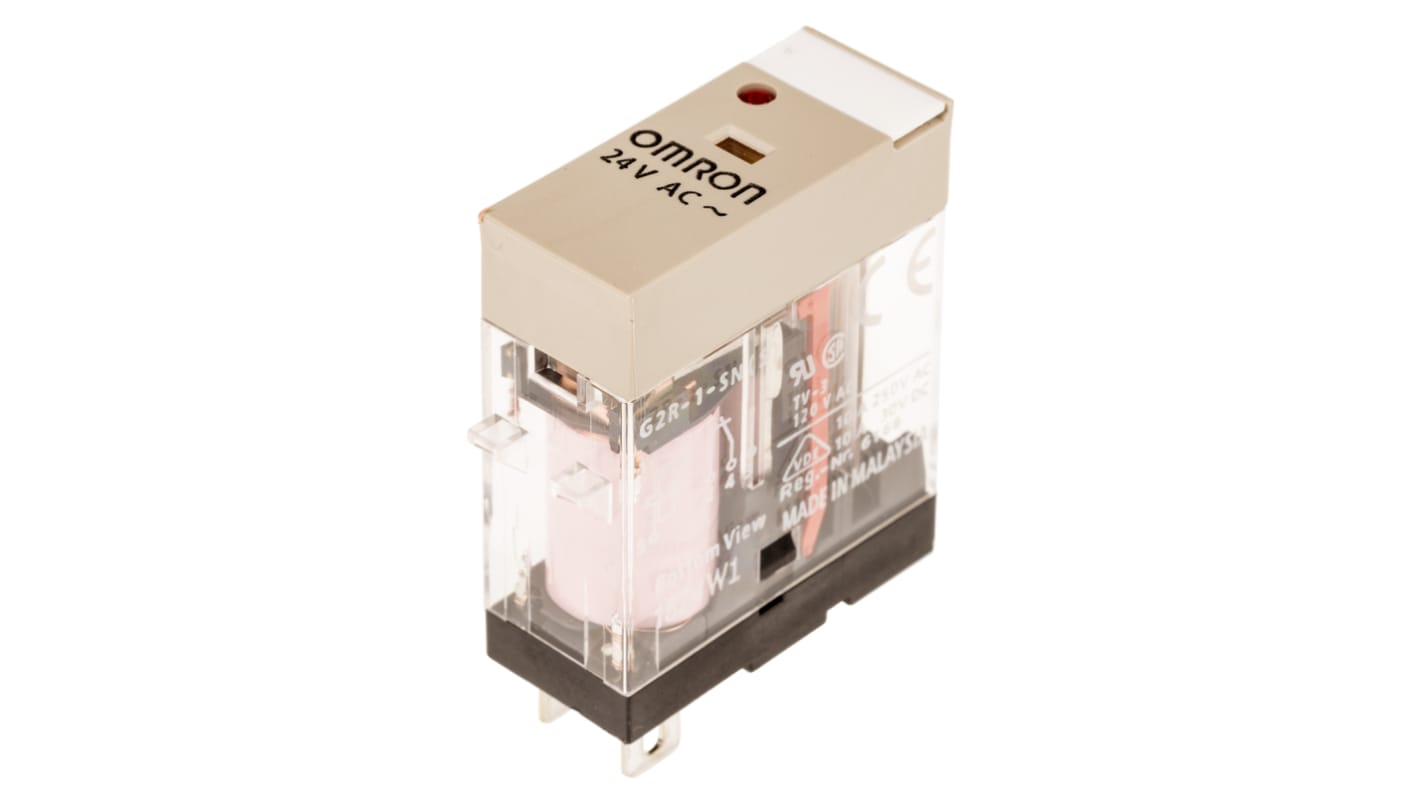

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£8.50

(exc. VAT)

£10.20

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 259 left, ready to ship
  • Plus 1 left, ready to ship from another location
  • Plus 200 left, shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£8.50
5 - 9£8.23
10 +£7.89

*price indicative

RS Stock No.:
353-843
Mfr. Part No.:
G2R-1-SN 24VAC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V ac

Contact Configuration

SPDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

1

Latching

No

Series

G2R-1

Terminal Type

Quick Connect

Maximum Switching Voltage AC

440V ac

Maximum Switching Voltage DC

125V dc

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

29mm

Coil Resistance

260Ω

Coil Power

900mW

Height

29mm

Contact Material

Silver Alloy

Standards Met

CE, CSA

Isolation Coil To Contact

5kV ac

Life

1000000 (Electrical) cycles, 10000000 (Mechanical) cycles

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

Depth

13mm

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.5 kVA

Application

Power

Dimensions

29 x 13 x 29mm

COO (Country of Origin):
MY

G2RS Series Non-Latching Relay


Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits


Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information


Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 29 (L) x 13 (W) x 35.5mm (H), 900mW Coil Power - G2R-1 Series - G2R-1-SN AC24(S)


Want fuss-free circuit management? Add this power relay from OMRON to your system. It has a 10A switching current capacity that kicks your motor or heating system into action in a flash. At just 13mm wide, the device slots neatly into tight spaces without sticking out like a sore thumb. For convenient installation, you can simply click it into place by hand thanks to its plug-in mounting design.

Features & Benefits


• Transparent casing and operating-status LED make monitoring easy
• Light 20g weight keeps strain minimal
• Performs reliably in temperatures between -40°C and +70°C, so you can trust it in harsh industrial settings
• Silver-alloy contacts resist corrosion for a long service life

Applications


• Medical equipment
• Telecommunications industry
• Industrial automation

What's the mechanical lifespan of this power relay?


This power relay handles at least 10 million mechanical cycles, so it's a reliable choice that delivers long-term performance.

Is this device a good fit for demanding applications?


Yes. It copes with up to 1,800 operations per hour, making it an ideal option for use with heavy-duty equipment.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ
