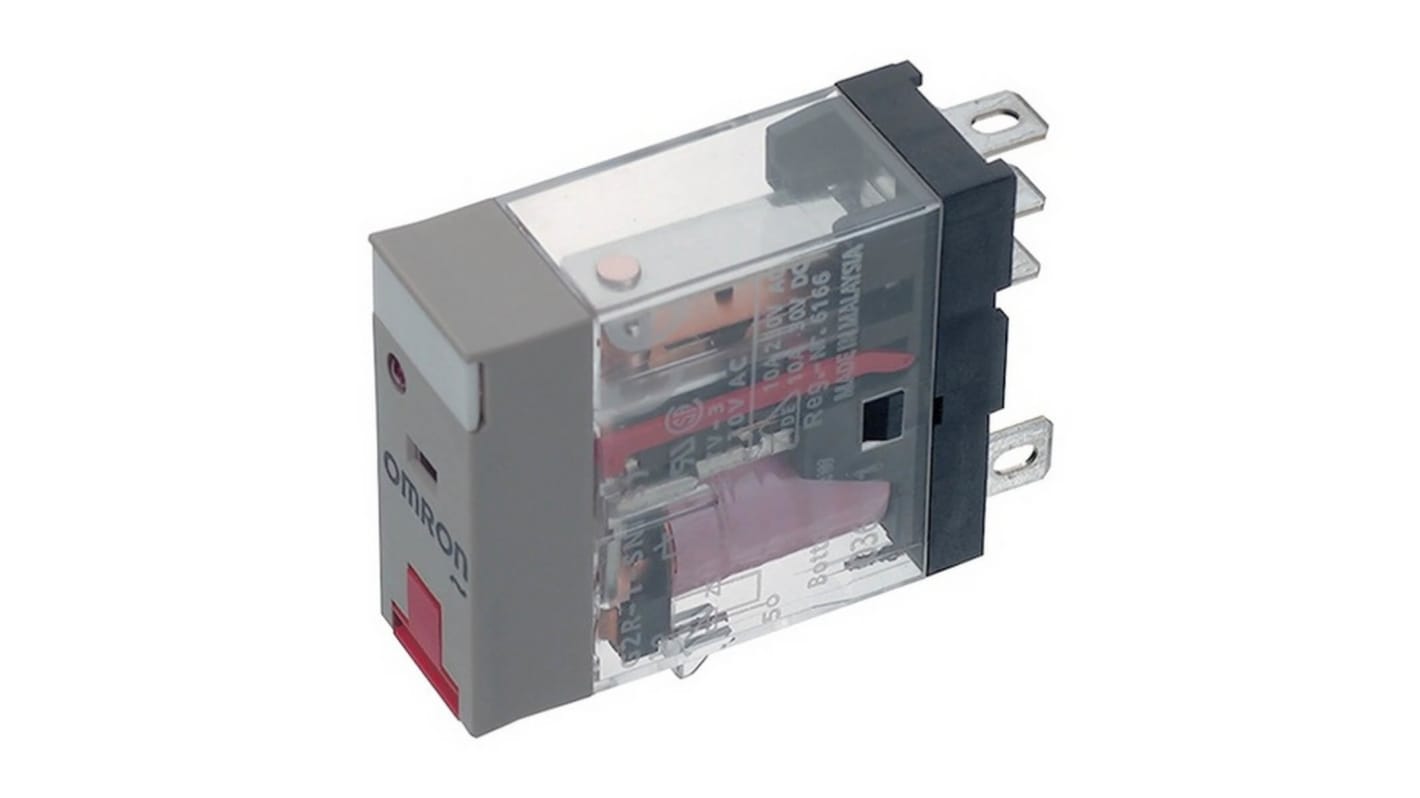

Omron Power Relay, 24V ac Coil, 10A Switching Current, SPDT

This power relay is a Compact electromechanical switching device designed for industrial control and automation environments. It operates with an AC Coil to control a single-pole double-throw contact set, providing a practical switching solution where Compact size and straightforward plug-in installation are required. The unit is suited to panel or control-module use where moderate load switching and standard environmental ranges are expected.

• 24VAC 0.9VA Coil delivers low energy consumption and consistent actuation
• 253Ω Coil resistance ensures predictable drive requirements
• SPDT contact arrangement permits both make and break switching flexibility
• Silver tin indium contacts reduce wear and support frequent operations
• 10A switching capability handles typical control-circuit loads
• Terminal plug-in design enables quick replacement and easy wiring

• Suitable for motor starter control circuits in automation panels
• Ideal for switching auxiliary loads in building management systems
• Used for signal routing in industrial control racks
• Can be used for interlocking and safety logic in machinery control

It can switch AC loads up to 440 V, making it suitable for a wide range of control voltages.

It is rated for DC switching up to 125V with a power-handling figure of 2500 mW for contact applications.

The relay is specified to operate between −40°C and 70°C, covering most industrial ambient conditions.

The unit carries approvals to UL508, CSA and IEC/VDE standards for recognised industrial use.
