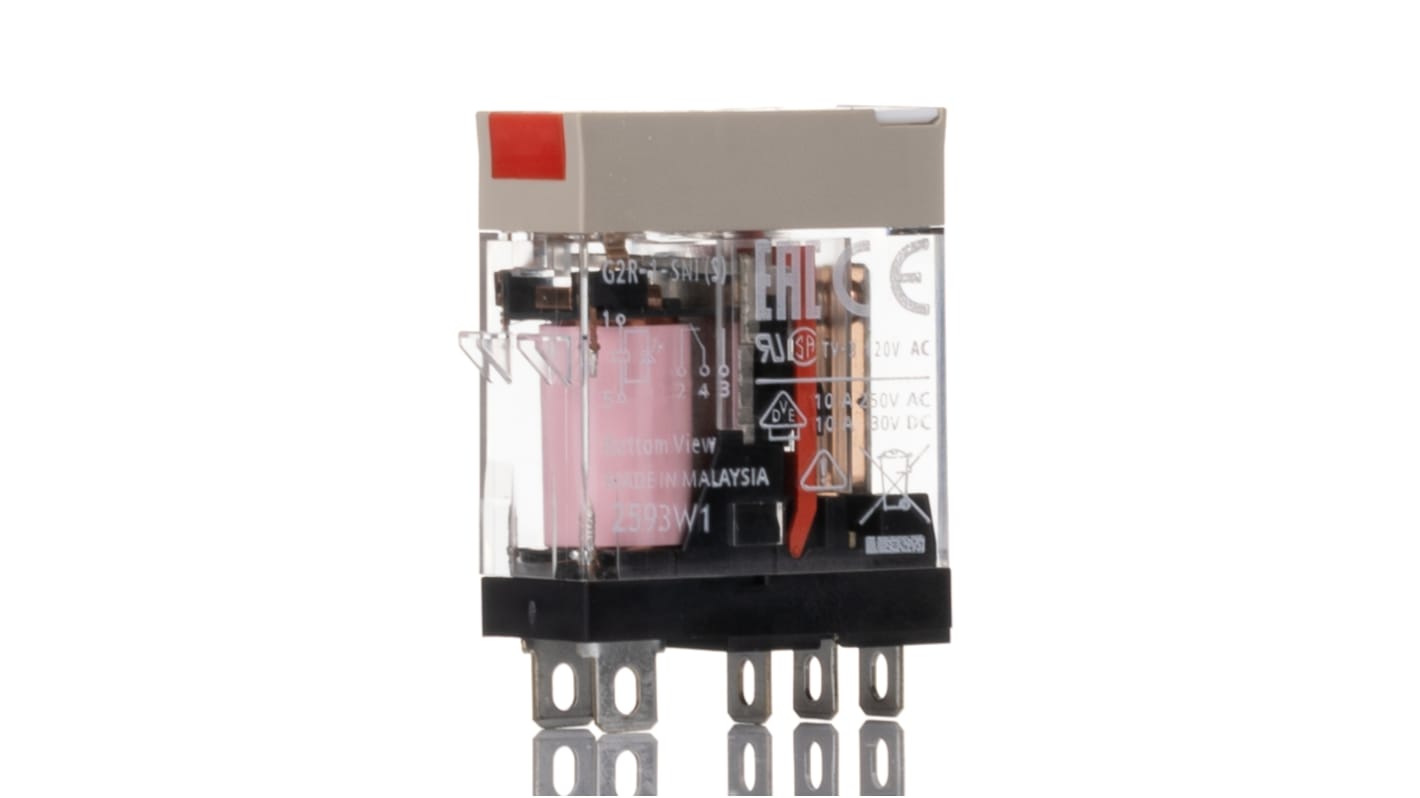

Omron Power Relay, 230V ac Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 329-7207
- Distrelec Article No.:
- 136-18-808
- Mfr. Part No.:
- G2R-1-SNI 230VAC (S)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£13.29
(exc. VAT)
£15.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 92 unit(s) ready to ship
- Plus 277 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.29 |
| 5 - 9 | £12.89 |
| 10 + | £12.32 |
*price indicative
- RS Stock No.:
- 329-7207
- Distrelec Article No.:
- 136-18-808
- Mfr. Part No.:
- G2R-1-SNI 230VAC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 230V ac | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Series | G2R | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Switching DC Voltage | 125V dc | |
| Switching AC Voltage | 125V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 27.2kΩ | |
| Maximum Operating Temperature | 70°C | |
| Width | 13mm | |
| Length | 29mm | |
| Coil Power | 900mW | |
| Standards/Approvals | UL, CE, EN, IEC, RoHS | |
| Height | 35.5mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 230V ac | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Series G2R | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Switching DC Voltage 125V dc | ||
Switching AC Voltage 125V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 27.2kΩ | ||
Maximum Operating Temperature 70°C | ||
Width 13mm | ||
Length 29mm | ||
Coil Power 900mW | ||
Standards/Approvals UL, CE, EN, IEC, RoHS | ||
Height 35.5mm | ||
Contact Material Silver Alloy | ||
OMRON Power Relay, 0.9VA at 60Hz Power Consumption, 5kV AC Isolation Coil to Contact - G2R Series - G2R-1-SNI AC230(S)
Add this power relay from OMRON to your automated system to turn circuits on and off in a flash. It's just the job for managing motor operations, HVAC systems and security mechanisms in your setup. The rapid 15ms operating time sets your operation in motion immediately. Transparent housing enables straightforward visual inspections, so there's no need for dismantling. You can install this unit using a through-hole termination method that creates a permanent and secure hold.
Features & Benefits
• 900mW coil power, so it handles the demands of heavy-duty applications
• LED indicator keeps you informed about the unit's status, for monitoring at a glance
• Plug-in mounting for speedy installation without special tools
Applications
• Industrial engineering
• Robotics systems
• Pharmaceutical industry
What lifespan can I expect from this power relay?
This power relay has a mechanical lifespan of 10 million cycles, so it's a dependable choice for long-term performance.
How much does this unit weigh?
This assembly only weighs 20g, so it's a lightweight option that keeps load low and strain minimal.
G2RS Series with Test Button
Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Note
Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.
Approvals
UL, CSA, VDE
