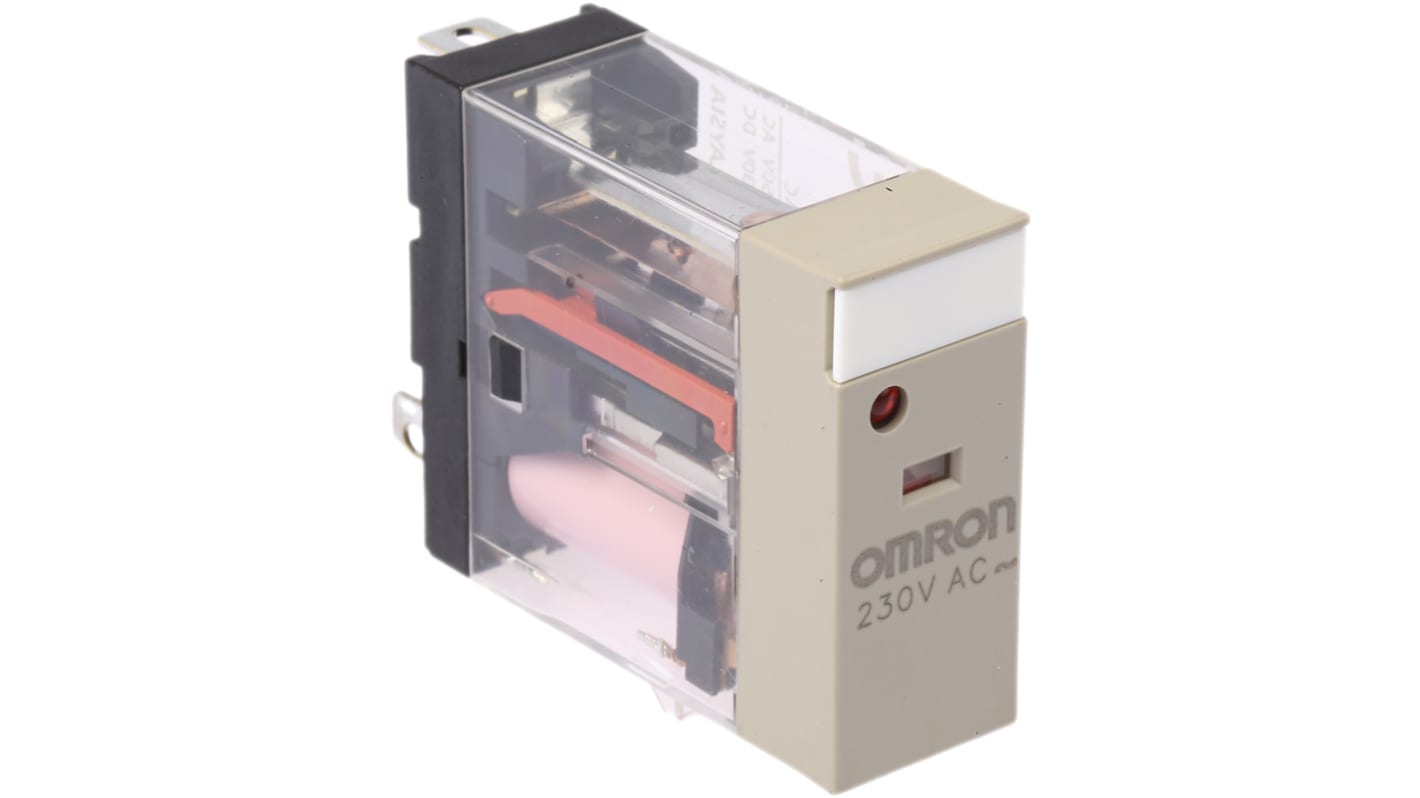

Omron Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£12.80

(exc. VAT)

£15.36

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 617 left, ready to ship
  • Plus 3 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.80
5 - 9£12.37
10 +£11.87

*price indicative

RS Stock No.:
353-865
Mfr. Part No.:
G2R-1-SN 230VAC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

230V ac

Contact Configuration

SPDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

1

Series

G2R-1

Latching

No

Terminal Type

Plug In

Maximum Switching Voltage AC

440V

Maximum Switching Voltage DC

125V dc

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

29mm

Coil Resistance

27.17 kΩ

Coil Power

900mW

Life

1000000 (Electrical) cycles, 10000000 (Mechanical) cycles

Contact Material

Silver Alloy

Isolation Coil To Contact

5kV ac

Maximum Operating Temperature

+70°C

Depth

13mm

Minimum Operating Temperature

-40°C

Height

35.5mm

Standards Met

CE, CSA

Maximum Switching Power AC

2.5 kVA

Maximum Switching Power DC

300 W

Dimensions

29 x 13 x 35.5mm

Application

Power

COO (Country of Origin):
MY

G2RS Series Non-Latching Relay


Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits


Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information


Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 5-Pin Connector Type, 2.5kVA Maximum Switching Power - G2RS Series - G2R-1-SN AC230(S)


For machinery that operates like clockwork, plug in this OMRON power relay. It uses electromagnetic signals to open and close its contacts, giving you hassle-free control over gear in signalling and power distribution systems. As it handles up to 1800 operations an hour, the device keeps pace with busy switching processes. There's no complicated wiring to worry about, as the component slots straight into a mounted socket (111-3066). With this relay's easy-to-read LED and mechanical indicators, checking its switch status is quick and simple.

Features & Benefits


• Service life of at least 100,000 electrical cycles, so you get long-lasting control
• Silver alloy contacts provide effective corrosion resistance
• Handy nameplate for quick labelling and convenient identification
• Robust plastic insulation is reliably durable
• Power usage of up to 0.9VA, minimising energy loss and ensuring efficient running

Applications


• Data and control centres
• Residential buildings
• Oil and gas industries

Can this relay handle power faults?


Yes, the unit comes with a self-diagnostic function that automatically disconnects its coil when electrical issues crop up. This cuts the risk of damage caused by faults.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ
