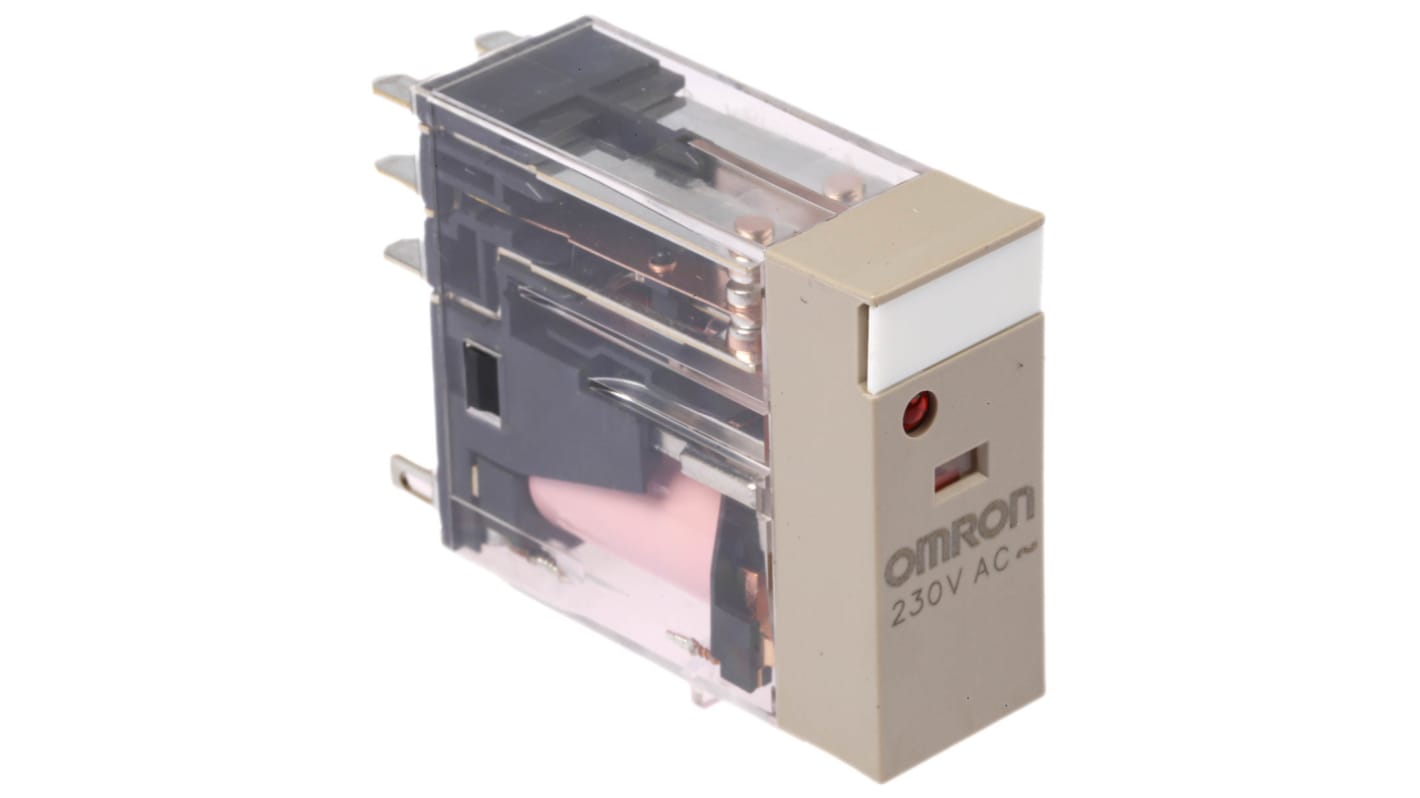

Omron Plug In Power Relay, 230V ac Coil, 5A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£13.74

(exc. VAT)

£16.49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 357 unit(s) ready to ship
  • Plus 49 unit(s) ready to ship from another location
  • Plus 200 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£13.74
5 - 9£13.30
10 +£12.76

*price indicative

RS Stock No.:
353-916
Mfr. Part No.:
G2R-2-SN 230VAC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

230V ac

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

5A

Number of Poles

2

Series

G2R-2

Latching

No

Terminal Type

Plug In

Maximum Switching Voltage AC

380V ac

Maximum Switching Voltage DC

125V

Maximum Switching Current DC

5 A

Maximum Switching Current AC

5 A

Length

29mm

Coil Resistance

27172Ω

Coil Power

150W

Depth

13mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+70°C

Standards Met

CE, CSA

Height

41.7mm

Maximum Switching Power AC

1.25 kVA

Maximum Switching Power DC

150 W

Application

General Purpose

Dimensions

41.7 x 29 x 13mm

COO (Country of Origin):
MY

G2RS Series Non-Latching Relay


Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits


Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information


Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 8-Pin Connector Type, 4.4mA Maximum Input Current - G2R Series - G2R-2-SN AC230(S)


Looking for snappy control over your electrical kit? Put this OMRON power relay in charge. Installation is simple, as it plugs directly into a compatible socket (794-8211). With a switching time of 15ms, it quickly reacts to inputs, so you get responsive circuit management. Keeping energy moving efficiently is this unit's speciality thanks to its highly conductive silver alloy pins. As the device comes with LED and mechanical indicators, it shows the switch status with or without power, meaning you can fly through spot-checks. Seek out a relay like this for use in security systems and automated manufacturing lines.

Features & Benefits


• Handles electrical loads up to 5A to tackle everyday power distribution tasks
• Self-disconnecting diagnostics to cut the risk of equipment damage from faults
• Compact dimensions of 29 (W) x 41.7 (H) x 13mm (D) for easy mounting into busy setups
• Up to 1800 operations per hour so it can be used with fast-paced applications

Applications


• Control and automation systems
• Mineral processing
• Automotive industry

Can I label my connections on this relay?


Yes, the top plate has space for a label, making it easy to identify your connections at a glance.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ
