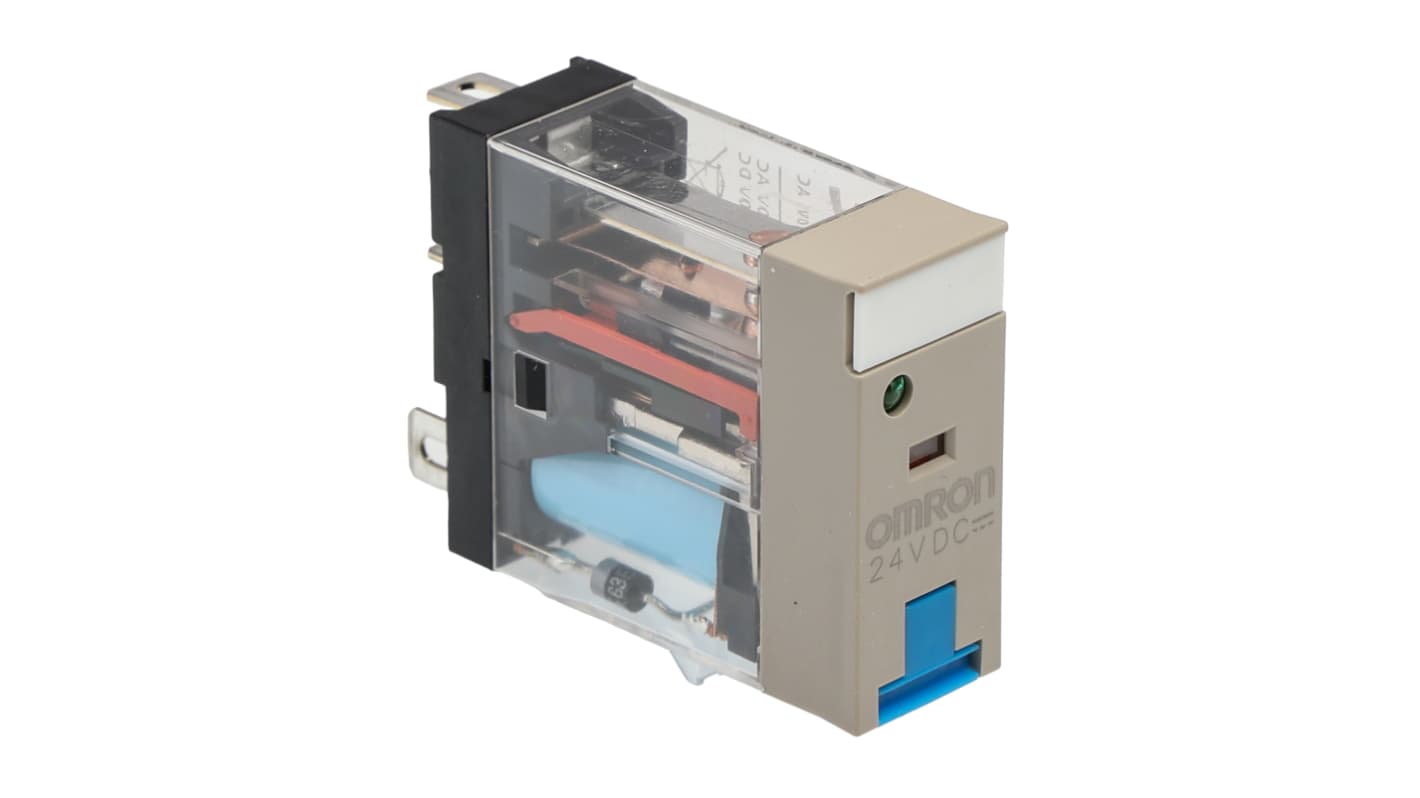

Omron Relay, 24V dc Coil, 10A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£10.62

(exc. VAT)

£12.74

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£10.62

*price indicative

RS Stock No.:
266-2969
Distrelec Article No.:
136-19-954
Mfr. Part No.:
G2R-1-SNDI 24VDC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Product Type

Relay

Contact Configuration

SPDT

Series

G2R-1

Terminal Type

Plug-In

Switching Current

10A

Switching DC Voltage

125V dc

Switching AC Voltage

125V ac

Minimum Operating Temperature

-40°C

Switching Power

2.5W

Coil Resistance

1.1kΩ

Maximum Operating Temperature

70°C

Standards/Approvals

UL 508, IEC/VDE, CSA

Height

40.5mm

Width

13mm

Length

29mm

Coil Power

530mW

Contact Material

Silver Alloy

Contact Resistance

100mΩ

Omron G2R-1 Series Relay, 24V DC Coil Voltage, SPDT Contact Configuration - G2R-1-SNDI DC24(S)


This relay is a compact and versatile component designed for industrial automation and control systems. With a space-saving plug-in design, it features a single pole double throw (SPDT) configuration, allowing for flexible circuit control. The relay operates at a coil voltage of 24V DC and is rated for a maximum switching voltage of 440V AC, making it ideal for various applications in the electrical and mechanical industries.

Features & Benefits


• Reduces wiring work by 60% when used with compatible sockets

• High switching capacity of 10A, suitable for automation tasks

• Built-in mechanical operation indicator enhances usability

• Compliant with industrial standards such as UL 508, VDE

• Made with AgSnIn contact material for improved durability

• Wide operating temperature range from -40°C to +70°C

Applications


• Ideal for use in automation systems for circuit control

• Suitable for high-temperature environments requiring strong performance

• Can be utilised in manufacturing equipment and machinery

• Effective in household electrical for safety switches

• Integrates efficiently with push-in sockets for quick installations

What makes the relay suitable for high-temperature applications?


The relay's design accommodates operation in temperatures ranging from -40°C to +70°C, ensuring reliability in extreme environments. The choice of materials helps maintain performance under such conditions.

How does the plug-in design enhance connectivity?


The plug-in configuration simplifies installation and maintenance, allowing users to easily replace or upgrade the relay without extensive rewiring, thereby minimising downtime.

What benefits come from using AgSnIn as the contact material?


AgSnIn provides excellent conductivity and resistance to welding, enhancing the relay's lifespan and ensuring reliable performance under frequent switching operations. This is particularly beneficial in environments with high electrical demands.
