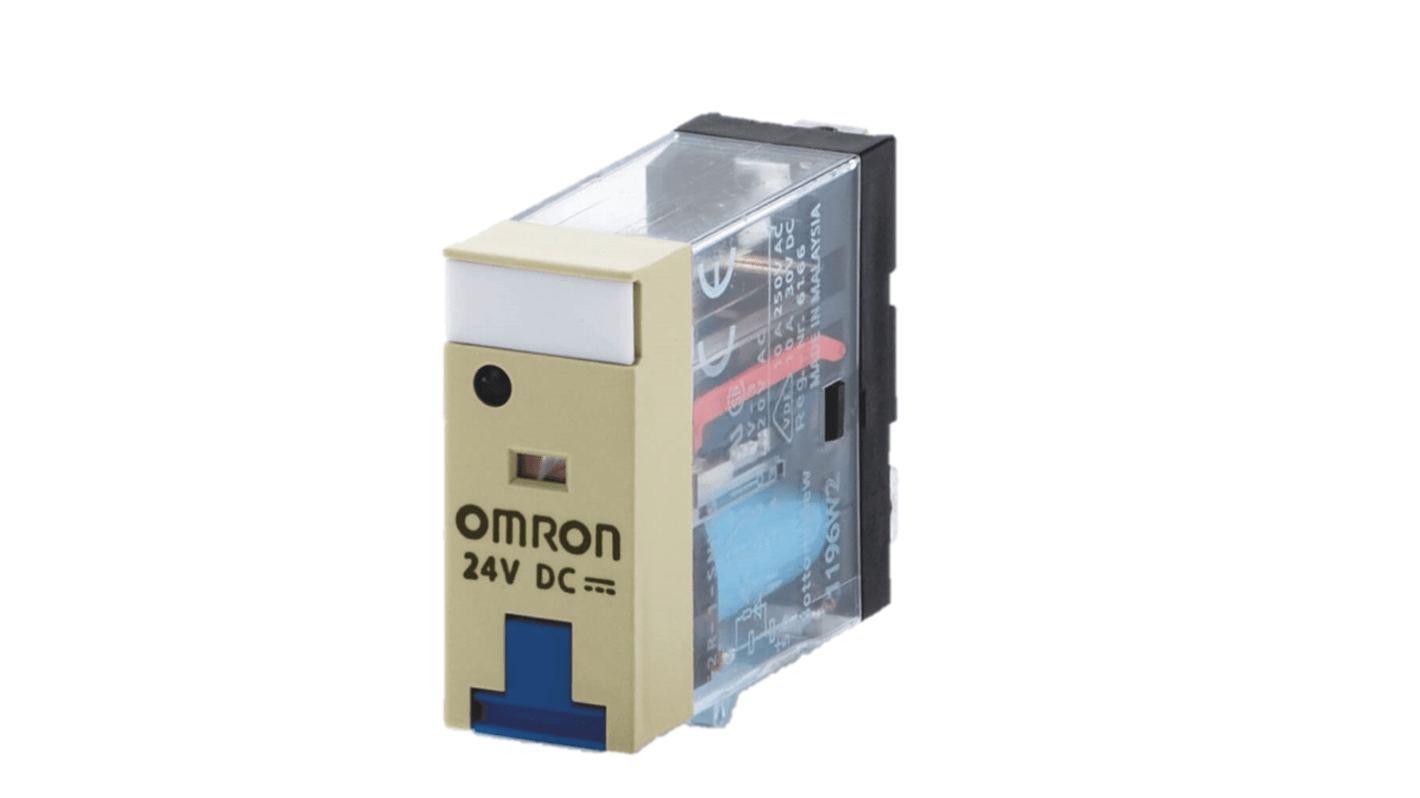

Omron Relay, 24V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 828-6704
- Distrelec Article No.:
- 301-37-185
- Mfr. Part No.:
- G2R-1-SD 24VDC (S)
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£11.67
(exc. VAT)
£14.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 106 unit(s) ready to ship
- Plus 75 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.67 |
| 5 - 9 | £11.29 |
| 10 + | £10.83 |
*price indicative
- RS Stock No.:
- 828-6704
- Distrelec Article No.:
- 301-37-185
- Mfr. Part No.:
- G2R-1-SD 24VDC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Series | G2R | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching Power | 0.9W | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 125V ac | |
| Switching DC Voltage | 125V dc | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 1.1kΩ | |
| Standards/Approvals | CSA, UL | |
| Coil Power | 530mW | |
| Width | 13mm | |
| Height | 35.5mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 30mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Series G2R | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching Power 0.9W | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 125V ac | ||
Switching DC Voltage 125V dc | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 1.1kΩ | ||
Standards/Approvals CSA, UL | ||
Coil Power 530mW | ||
Width 13mm | ||
Height 35.5mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 30mΩ | ||
Omron G2R Series Relay, 29mm Length, Plug-In Terminal - G2R-1-SD DC24(S)
This relay is intended for general-purpose applications in automation and electrical systems. Its compact plug-in design simplifies installation while ensuring effective operation. The Omron G2R relay functions at a 24V DC coil voltage, making it suitable for diverse electronic systems and industrial settings.
Features & Benefits
• Includes a built-in mechanical operation indicator
• Utilises AgSnIn contact material for enhanced durability
• Operates efficiently within a broad temperature range
• A coil power consumption of 0.53W for effective energy usage
Applications
• Suitable for automation control panels
• General heating and cooling systems
• Lighting control
• Security and alarm systems
What is the maximum switching voltage for this relay?
The maximum switching voltage for AC applications is 440V, while for DC it is 125V.
How does the relay perform in extreme temperatures?
It operates effectively between -40°C and +70°C, ensuring functionality in harsh environments.
Can it handle inductive loads reliably?
Yes, it can manage inductive loads up to 7.5A at 250VAC, providing versatility for various applications.
What type of diagnostic features does this relay offer?
A coil-disconnection self-diagnostic function is available in the AC type, assisting users in monitoring its operational status efficiently.
