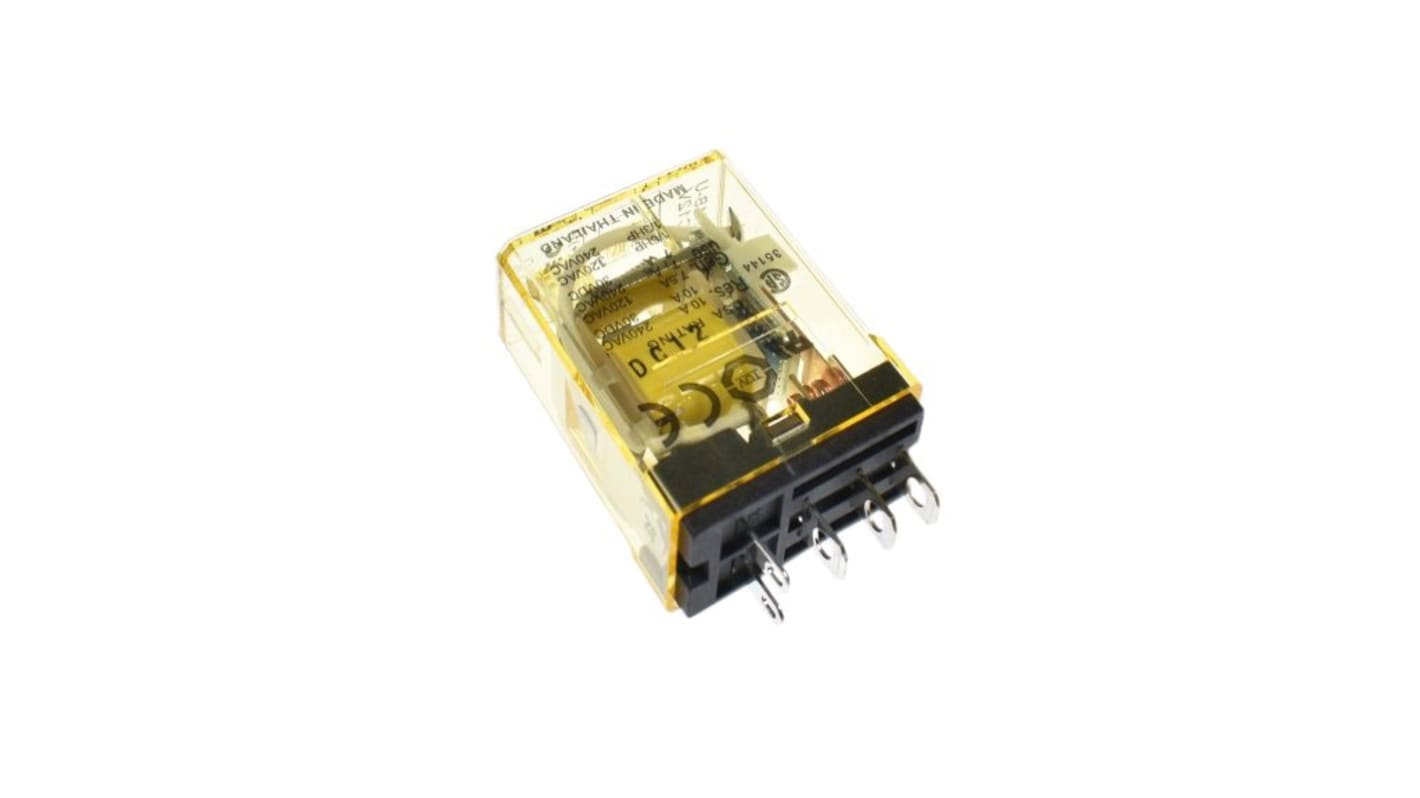

Idec Through Hole Power Relay, 24V Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 288-3625
- Distrelec Article No.:
- 303-10-507
- Mfr. Part No.:
- RH1B-ULDDC24
- Brand:
- Idec
Subtotal (1 unit)*
£16.92
(exc. VAT)
£20.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 16 unit(s) shipping from 10 August 2026
- Plus 60 unit(s) shipping from 17 August 2026
- Plus 80 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.92 |
*price indicative
- RS Stock No.:
- 288-3625
- Distrelec Article No.:
- 303-10-507
- Mfr. Part No.:
- RH1B-ULDDC24
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Product Type | Power Relay | |
| Coil Voltage | 24V | |
| Contact Configuration | SPDT | |
| Mount Type | Through Hole | |
| Series | RH | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 750Ω | |
| Length | 27.5mm | |
| Width | 14mm | |
| Height | 35.6mm | |
| Standards/Approvals | No | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Product Type Power Relay | ||
Coil Voltage 24V | ||
Contact Configuration SPDT | ||
Mount Type Through Hole | ||
Series RH | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 750Ω | ||
Length 27.5mm | ||
Width 14mm | ||
Height 35.6mm | ||
Standards/Approvals No | ||
Contact Material Silver Alloy Gold Plated | ||
The compact power relay is designed with a DC coil, specifically 24V DC, and is ideal for various applications. With its SPDT (Single Pole Double Throw) configuration and 10A contact capacity, it offers reliable switching capabilities. The compact size of this relay allows it to save space in installations, making it suitable for use in different environments. With its high-quality construction and excellent performance, It is a reliable choice for any project that requires a compact power relay.
Compact power relay with SPDT configuration
DC coil with 24V DC voltage
10A contact capacity for reliable switching
Compact size saves space in installations
High-quality construction for durability
Suitable for various applications
