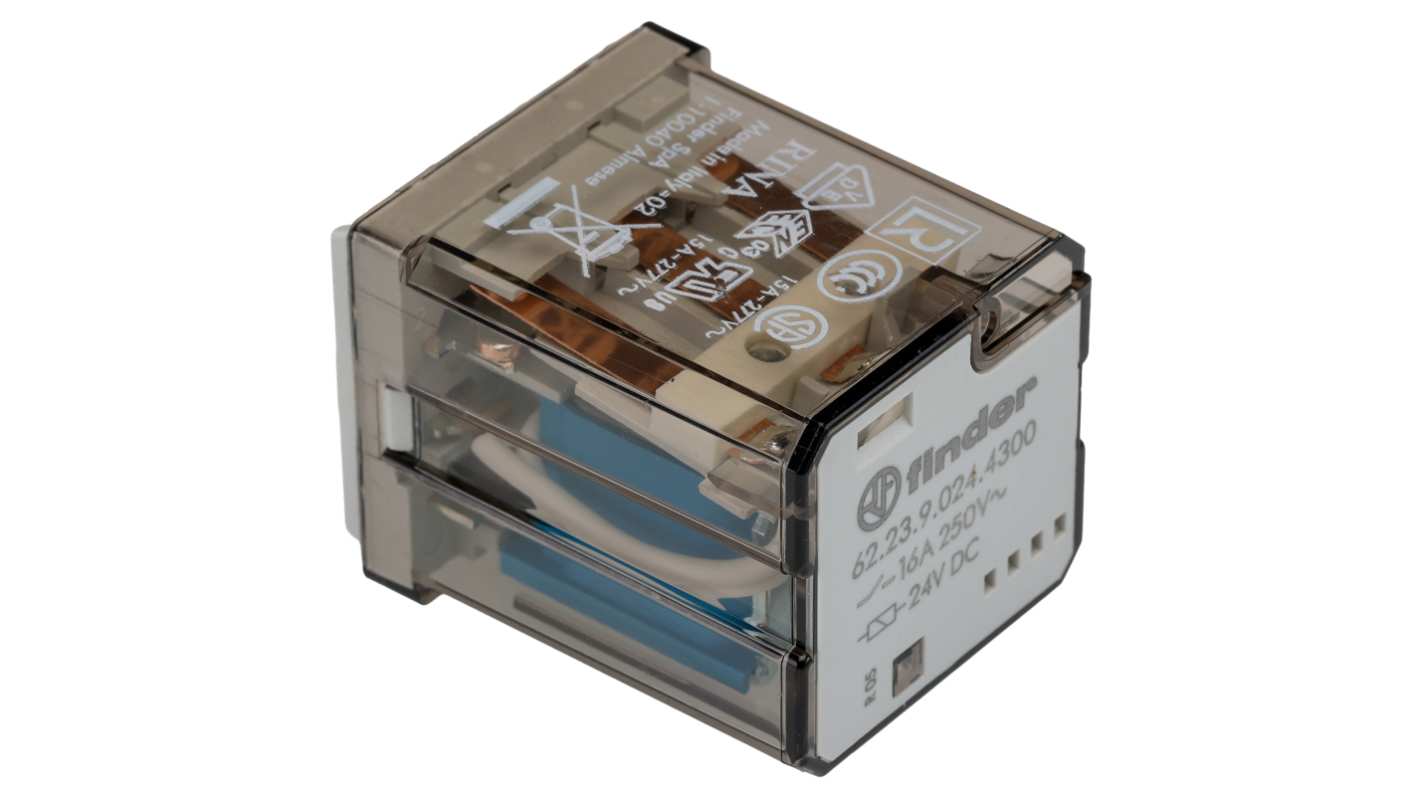

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, 3PST-NO
- RS Stock No.:
- 282-6671
- Mfr. Part No.:
- 622390244300
- Brand:
- Finder
Subtotal (1 unit)*
£17.64
(exc. VAT)
£21.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.64 |
*price indicative
- RS Stock No.:
- 282-6671
- Mfr. Part No.:
- 622390244300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | 3PST-NO | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 3 | |
Series | 62 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 120 A | |
Coil Power | 3W | |
Standards Met | cURus, EAC | |
Life | 100000 Cycles | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +50°C | |
Isolation Coil To Contact | 6kV | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration 3PST-NO | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Series 62 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 120 A | ||
Coil Power 3W | ||
Standards Met cURus, EAC | ||
Life 100000 Cycles | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +50°C | ||
Isolation Coil To Contact 6kV | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 24V DC Coil Voltage, 3PST-NO Contact Configuration - 622390244300
This power relay is designed for robust control applications, featuring a coil voltage of 24V DC and tailored for PCB mount installations. As a 3PST-NO relay, it delivers a remarkable switching capacity of 16A, suitable for various industrial functions. With reinforced insulation rated to 6kV, this device ensures enhanced safety and performance across a wide temperature range of -40°C to +50°C.
Features & Benefits
• Compact PCB mount design for space-efficient integration
• Exceptional 16A switching capacity for high power management
• AgSnO2 contact material for reduced wear and reliable operation
• Insulation strength of 6kV for superior safety
• Long mechanical life rated for 10 million cycles
• Capable of switching high currents up to 120A for short durations
• Exceptional 16A switching capacity for high power management
• AgSnO2 contact material for reduced wear and reliable operation
• Insulation strength of 6kV for superior safety
• Long mechanical life rated for 10 million cycles
• Capable of switching high currents up to 120A for short durations
Applications
• Control and management of industrial furnaces
• Used in road/tunnel lighting systems
• Integrated within control panels for automation systems
• Employed in circuit breakers and industrial motors
• Used with burners and boilers for efficient energy management
• Used in road/tunnel lighting systems
• Integrated within control panels for automation systems
• Employed in circuit breakers and industrial motors
• Used with burners and boilers for efficient energy management
How does the insulation rating affect performance in high-voltage applications?
The 6kV insulation rating provides enhanced protection against electrical breakdown, ensuring the relay operates safely in high-voltage environments. This is particularly important when managing industrial applications that could encounter surges or spikes in voltage.
What are the benefits of using AgSnO2 contact material in this relay?
AgSnO2 contact material significantly reduces contact erosion, enhances conductivity, and prolongs the overall lifespan of the relay. This improves reliability in high-current switching scenarios, leading to lower maintenance needs.
Can this relay effectively manage inductive loads?
Yes, this power relay is designed to manage both resistive and inductive loads efficiently, making it suitable for applications involving motors or transformers. It can handle the higher inrush currents typically associated with inductive loads.
How does the temperature range impact this relay's performance?
The operational temperature range of -40°C to +50°C ensures optimal performance in various conditions, enabling use in harsh environments without compromising functionality. This versatility makes it suitable for outdoor and industrial settings.
What is the life expectancy of this relay under regular use?
With a mechanical life rated at 10 million cycles and an electrical life at rated load of 100,000 cycles, this relay supports long-term operational efficiency, making it a durable option for continuous use in demanding applications.
