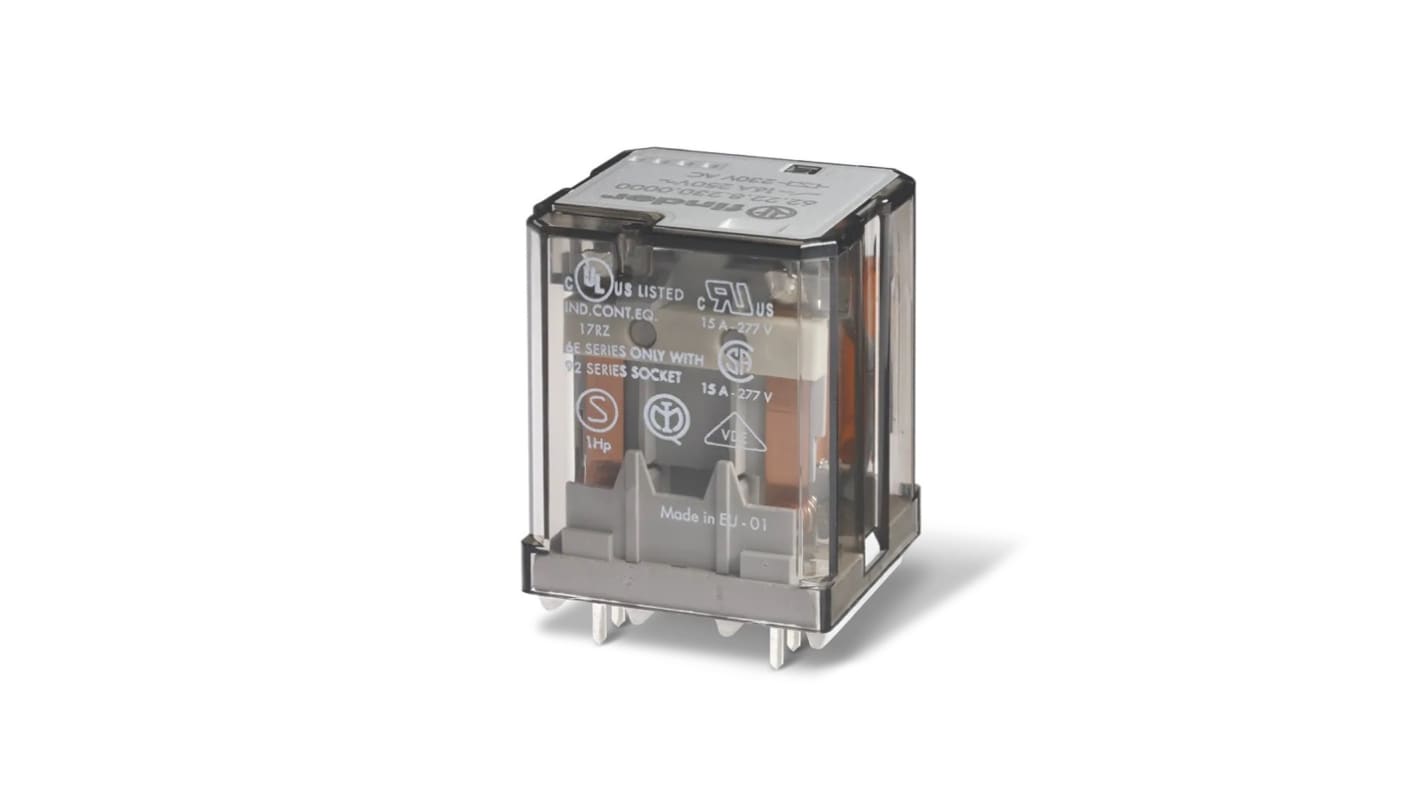

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 282-6670
- Mfr. Part No.:
- 622390244000
- Brand:
- Finder
Subtotal (1 unit)*
£18.19
(exc. VAT)
£21.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £18.19 |
*price indicative
- RS Stock No.:
- 282-6670
- Mfr. Part No.:
- 622390244000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | 3PDT | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 3 | |
Series | 62 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 120 A | |
Coil Power | 2.2W | |
Contact Material | Silver Alloy | |
Isolation Coil To Contact | 6kV | |
Life | 100000 Cycles | |
Standards Met | cURus, EAC | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration 3PDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Series 62 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 120 A | ||
Coil Power 2.2W | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 6kV | ||
Life 100000 Cycles | ||
Standards Met cURus, EAC | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 24V DC Coil Voltage, 3PDT Contact Configuration - 622390244000
This power relay is a vital component designed for demanding electrical applications. Constructed with a 24V DC coil voltage, this 16A power relay features a robust 3PDT configuration, ideal for PCB mounting in industrial settings. Its high voltage capacity allows for switching up to 400V AC and 220V DC, ensuring reliable performance across various environments.
Features & Benefits
• Offers a single coil for efficient operation
• Capable of switching currents up to 16A
• High dielectric strength of 6kV for robust insulation
• Lifetime of 100,000 cycles ensures durability and longevity
• Suitable for integration into control panels and systems
• cURus certified for compliance with safety standards
• Capable of switching currents up to 16A
• High dielectric strength of 6kV for robust insulation
• Lifetime of 100,000 cycles ensures durability and longevity
• Suitable for integration into control panels and systems
• cURus certified for compliance with safety standards
Applications
• Used for road and tunnel lighting control
• Integrated into industrial furnaces and ovens
• Employed in management systems for electrical power
• Utilised in CNC machinery like punches and sanders
• Ideal for circuit breakers and motor control systems
• Integrated into industrial furnaces and ovens
• Employed in management systems for electrical power
• Utilised in CNC machinery like punches and sanders
• Ideal for circuit breakers and motor control systems
What is the operational temperature range for this relay?
The relay operates efficiently within a temperature range of -40°C to +70°C, making it suitable for varied environmental conditions.
How does this relay manage high switching currents?
With a maximum switching current of 120A for brief durations and robust contact materials, it effectively handles substantial loads.
What kind of insulation does it provide between the coil and contacts?
It features reinforced insulation ensuring a clearance of 6mm and creepage of 8mm, enhancing safety and reliability in applications.
Can this relay be used for direct control of industrial motors?
Yes, it is designed for direct use in controlling industrial motors, supporting significant load requirements effectively.
Is it available for both AC and DC applications?
Yes, this relay can accommodate both AC and DC coils, allowing versatility for various user needs in industrial settings.
