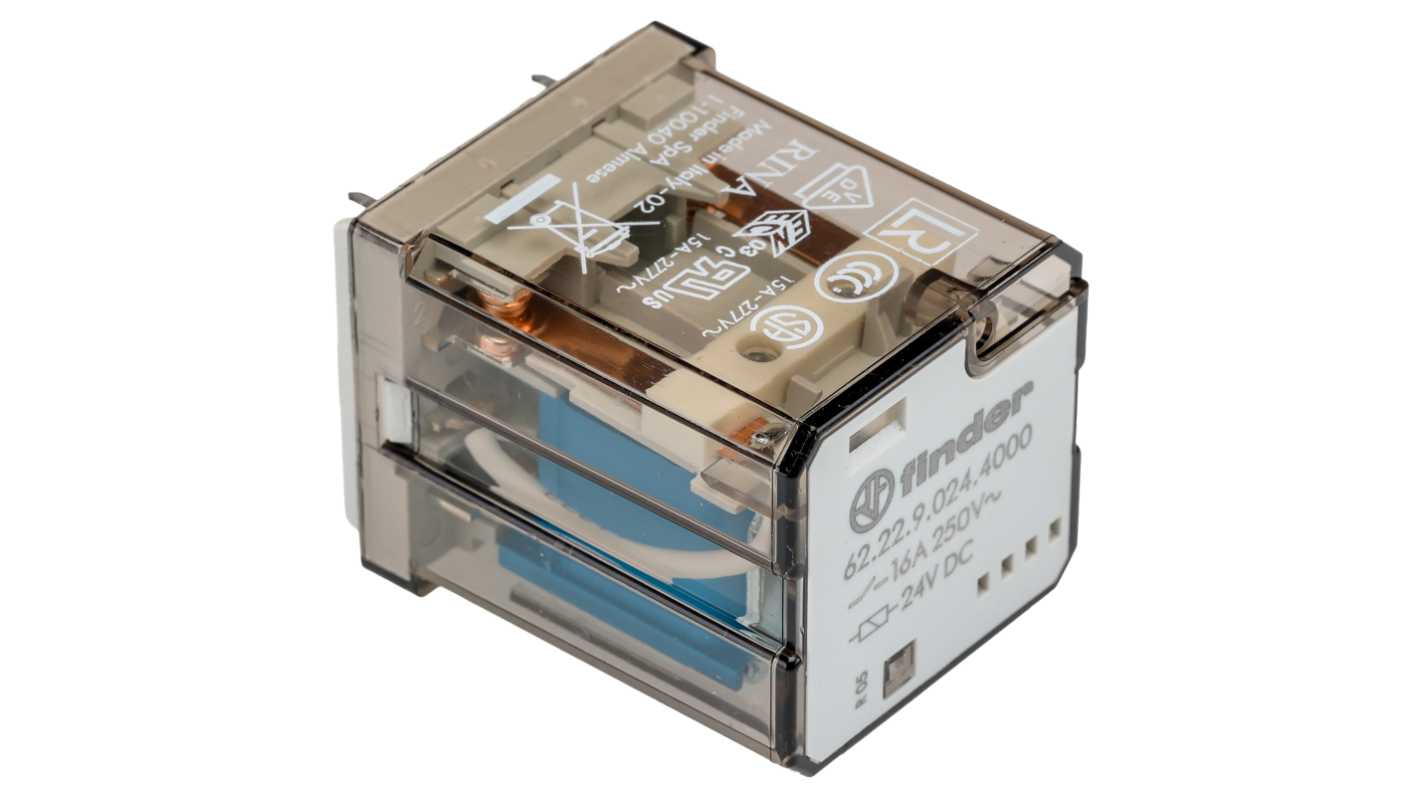

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£18.42

(exc. VAT)

£22.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£18.42

*price indicative

RS Stock No.:
282-6666
Mfr. Part No.:
622290244000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

2

Series

62

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

220V dc

Maximum Switching Current AC

120 A

Coil Power

2.2W

Life

100000 Cycles

Minimum Operating Temperature

-40°C

Standards Met

cURus, EAC

Contact Material

Silver Alloy

Maximum Operating Temperature

+70°C

Isolation Coil To Contact

6kV

Number of Coils

Single

COO (Country of Origin):
IT

Finder Series 62 Power Relay, 24V DC Coil Voltage, 16A Switching Current - 622290244000


This power relay is a robust and efficient electromagnetic switch designed for various industrial applications. With a coil voltage of 24V DC and a contact configuration of DPDT (double pole double throw), this device ensures reliable performance up to 16A. Engineered for PCB mounting, it guarantees optimal isolation and durability across a temperature range of -40°C to +70°C.

Features & Benefits


• Capable of switching currents up to 16A for versatile use
• DPDT relay configuration allows complex circuit control
• Reinforced insulation ensures high safety standards
• Maximum switching voltage of 400V AC and 220V DC for flexibility
• Designed for 100,000 switching cycles, enhancing longevity
• Single coil design optimises space on PCB layouts

Applications


• Ideal for controlling industrial motors and power management systems
• Used in automating lighting in tunnels and roadways
• Suitable for managing burners, boilers, and industrial ovens
• Engaged in involving punches, sanders, and planers

What are the isolation specifications between the coil and contacts?


The relay maintains a strong insulation level of 6 kV between the coil and contacts, ensuring safety during operation.

How does the relay perform under high temperature conditions?


It is designed to operate effectively in ambient temperatures ranging from -40°C to +70°C, making it suitable for demanding environments.

What current ratings can be achieved for a DC load using this relay?


For DC loads, this device can handle a maximum current of 16A, ensuring reliable performance under significant electrical conditions.

What circuit configurations can this relay facilitate?


It features a double pole double throw (DPDT) configuration, allowing for the management of multiple circuit paths simultaneously, crucial for complex applications.
